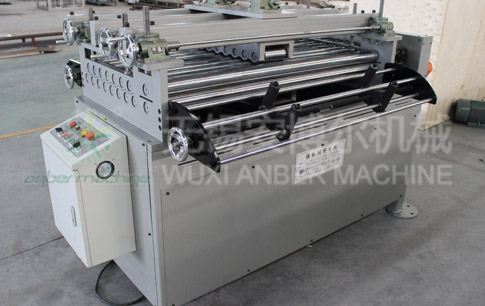

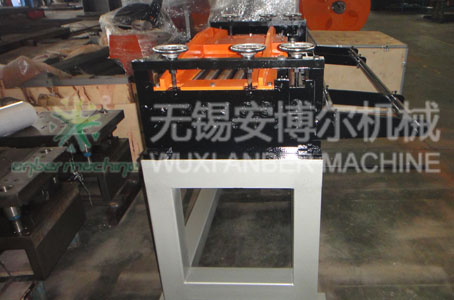

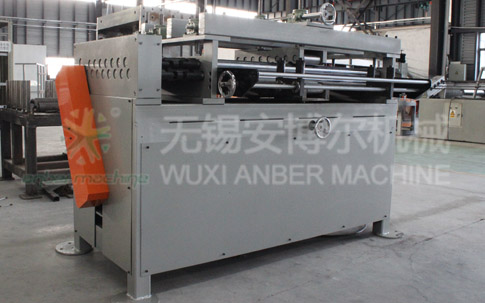

Straightening machine

Straightening machine

Mesh straightener

Mesh straightener

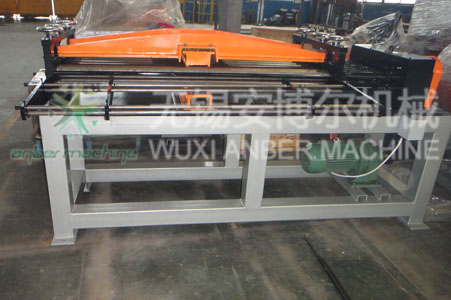

Leveling machine

Leveling machine

Mesh leverer

Mesh leverer

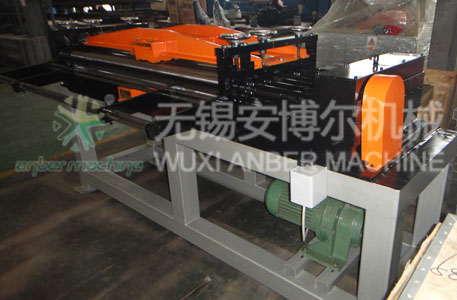

Mesh straightening machine

Mesh straightening machine

  • Straightening machine
  • Mesh straightener
  • Leveling machine
  • Mesh leverer
  • Mesh straightening machine

  • 01. Description of mesh straightening machine
  • The straightening machine is the accessory of expanded metal mesh production line, it is used because the mesh from the expanded metal mesh machine normally is curve, so the straightening machine is used to remove the curve from the expanded metal mesh.
  • 02.Main technical parameters
  • Model
    Max. expanded mesh width
    (mm)
    Max. material thickness
    (mild steel)(mm)
    Material feeding
    Roller material
    Surface treatment of roller
    Roller used life
    Roller quantity
    Roller diameter
    (mm)
    Leveling precision(
    area mistake)
    ABE-ZP1.0/1250
    1250
    1.0
    Worm and gear
    45# steel high frequency quenching
    Hard chromium
    5-10 years
    Guide roller*2
    Leveling roller*15(7 up 8 down)
    50-70
    Within ±5mm/1m length
    ABE-ZP1.5/1250
    1250
    1.5
    ABE-ZP2.0/1250
    1250
    2.0
    Guide roller*2
    Leveling roller*7(3 up 4 down)
    100-150
    ABE-ZP2.5/1500
    1500
    2.5
