- W600 Plaster Mesh Production Line

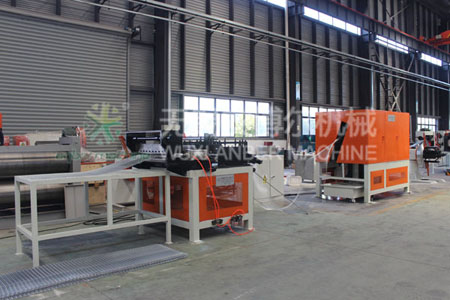

Plaster mesh machine

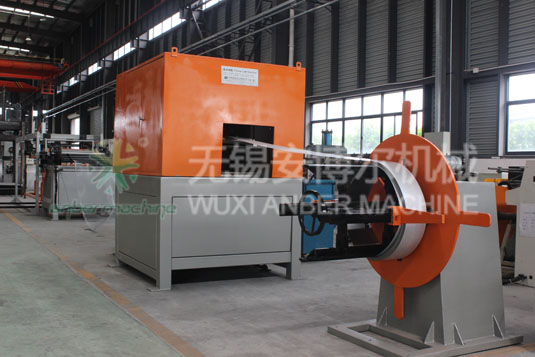

W600 plaster mesh production line
High speed metal lath machine

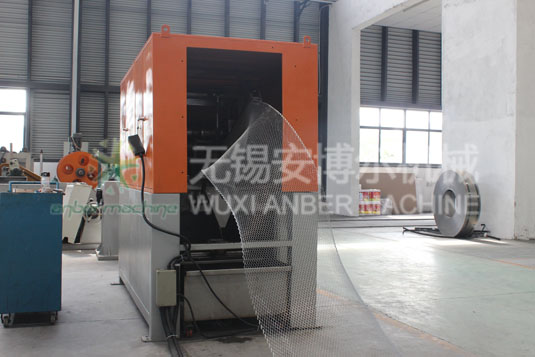

Expanded metal lath machine

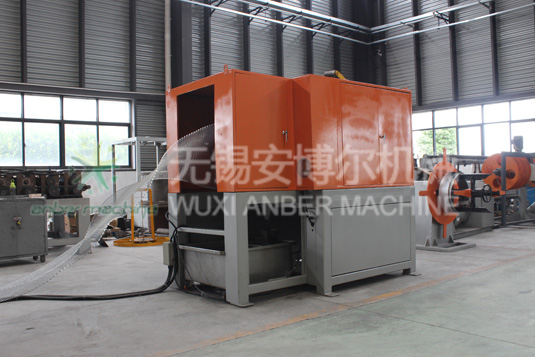

Rotary type metal lath machine
- 01. Main performances and features of machine
- Diamond lath/brick mesh machine is used to manufacture plaster lath. This machine is high production, low noise, safety, environmental protection, production mesh continuously features. The raw material is applied with cold-rolled steel. According to thickness and width specified by base parameter, the material is roll and expanded between multiple blades of the upper and the lower shafts, and forming the expanding mesh.
All main machines on production line are used with monolithic steel, welded by structural steel, processed by aging machine, which make main machine with the advantages of firm structure, compactness, high strength and rigidity, and stable performance. Compared with domestic similar product has a fast, stable, simple structure, easy to adjust, low energy consumption, stable performance and .reliable product quality, variety, low cost etc.
- 02.Product usages and material requirements
- Plaster lath is a new type, high efficiency, energy saving and reinforced concrete structure, which is convenient building materials for construction and reinforces the protection of wall surface and is widely used in industrial and civil construction.
- 03.Material requirement
- Tensile strength of materials ≤450N／mm2, cold rolled steel and non-ferrous metal plate with above 25% expanding rate.
material thickness:0.26 ~ 0.45mm
Aperture size: 12.5×25mm; Strand width:1.4mm; Mesh size:600×2440mm.
- 04.Composition and process flow of production line
- Ambient air temperature range:4~45℃;
Working power:3 phrase 380V50H;
Voltage fluctuation: within ±10%(When the frequency of electric mesh is rated )
Frequency fluctuation:≤±1%(When the electric mesh voltage is rated)
Working condition: The machine should be put in a ventilated, rain-proof, damp-proof, dust-proof place and away from violent vibrations and jolt.
Equipment composition and function
Plaster lath is mainly composed of decoiler, rolling expanding machine, straightening machine, collecting table and control cabinet.
(1)Rolling and cutting material is stored and supplied by the decoiler.
(2)Roll expanding machine includes feeding device, rolling and cutting device, drawing device, cooling pond.
(3)Collecting table is suitable for collecting mesh formed by metal lath.
Production process: decoiler→Rolling and cutting→ roll expanding → Straightening → Cutting → collecting table.
- 05.Main parameter
- Material loading weight: 1.0T
Decoil speed:11.6 r/min
Decoil tension: manual
Decoiler motor power: 0.55 Kw
Rotary expanding transmission method: gear
Main transmission motor: 4.0Kw
Rotary speed: 12 m/min
Straightening and cutting motor: 3.0Kw
Roller: 1set (up 5 down 6)
Cutting: compressed air, 0.8MPa system pressure, working pressure0.5~ 0.6MPa，
Cutting speed: adjustable, encoder to set length
Collected metal lath size: 2500mm*600 mm
Control method: PLC
Electronics: Schneider
