• Metal Lath And Brickwork Mesh Machine

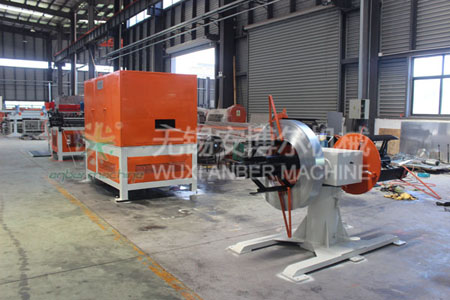

Self furred metal lath production line

Self furred metal lath production line

Roll Shearing/expanding

Roll Shearing/expanding

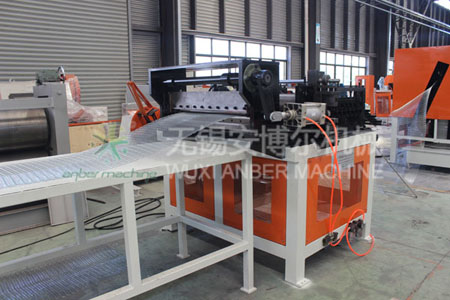

Straightening and slitting machine

Straightening and slitting machine

Decoiler

Decoiler

Stacker

Stacker

  • 01. Description of metal lath and brickwork mesh machine
  • Self furring lath production line is used to produce the self furring lath which is applied to plaster and reinforcing the wall, the production line contains de-coiler, expanded main machine, roller profiling machine with hydraulic shearer and collecting table.
  • 02.Technical parameters
  • ANBER metal lath and brickwork mesh machine can produce metal lath and brickwork reinforcement mesh on one production line by change molds

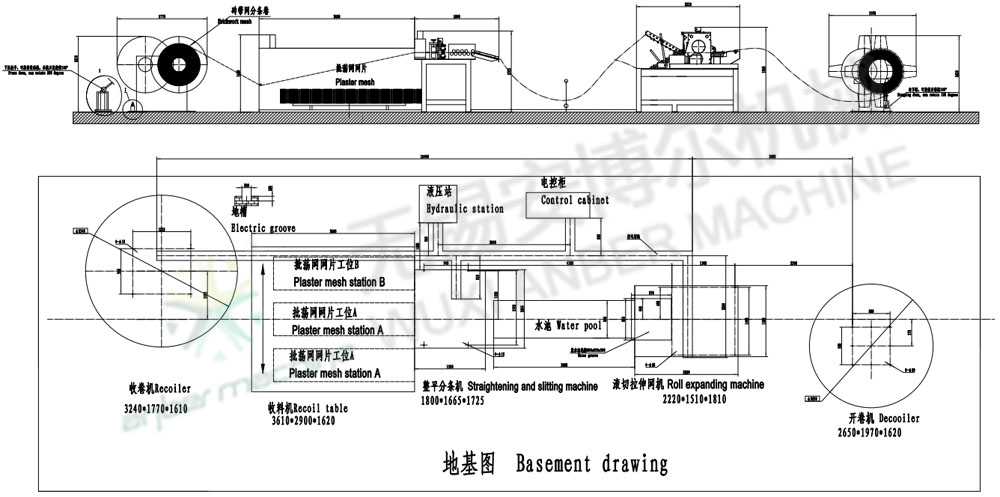

  • 03. layout of metal lath and brickwork mesh machine

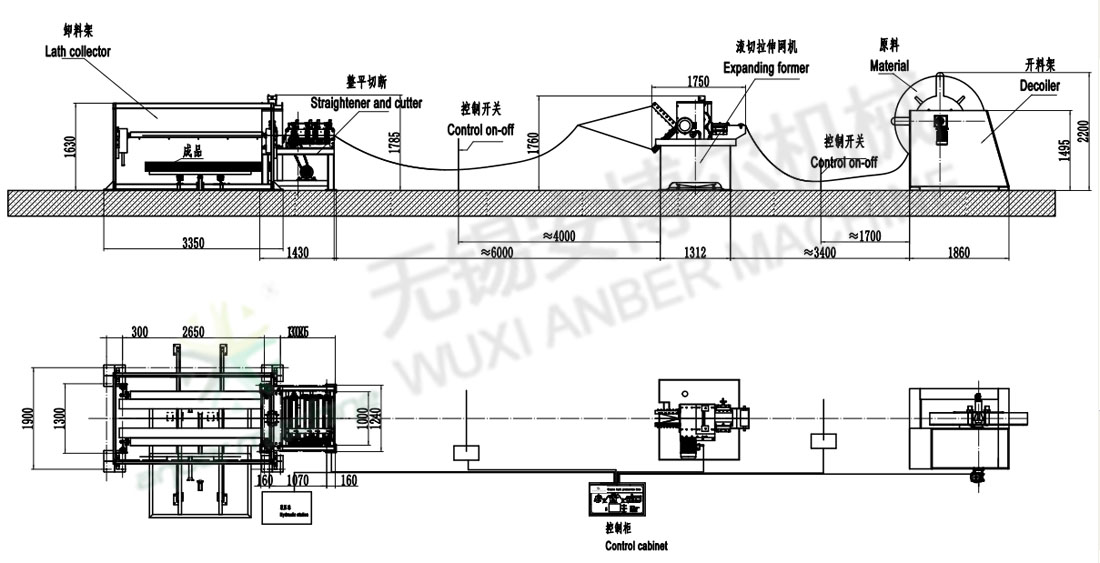

  • 04. Layout of rotary type stucco lath and brickwork mesh machine
  • 05. General information
  • Machine name/Brief Description
    Diamond mesh machine
    Rolling Speed
    12mpm
    NO. of operators
    Two
    Approx. weight (Total weight)
    4 tons
    Total power requirement
    12kw
    Compressed air requirement (cft/min.)
    0.5M3
    Machine Guard
    yes
    Machine Mechanism
    Rotary
    Line direction
    Left to right

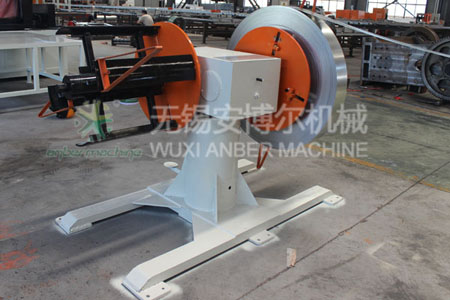

  • 06. Decoiler
  • Item
    Name
    Parameter
    1
    Inner diameter
    500mm, adjustable
    2
    Outer diameter
    1000mm
    3
    Loading weight
    Loading weight of each side is 1t
    4
    Machine size
    2650x1970x1620mm
    5
    Weight
    1260Kg
    6
    Two sides
    Each rotation 180°

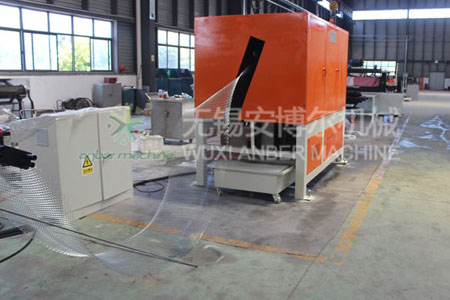

  • 07. Roll shearing/expanding
  • Item
    Name
    Parameter
    1
    Outer diameter of cutter
    Φ263mm
    2
    Blade repaired capacity
    3 mm
    3
    Speed or roll and cutting
    12m/min
    4
    Motor
    Power:4kw, Voltage: 380V,
    Rotation speed: 1450r/min
    5
    Machine size
    2220x1510x1810mm
    6
    Weight
    2352Kg
  • 08. Straightening and slitting machine
  • Item
    Name
    Parameter
    1
    Diameter of roll
    63mm
    2
    Straightening roller QTY
    13 straightening rollers
    3
    Motor
    Power:3kW,  Voltage:380V
    4
    Reduce speed machine
    JZQ200—i=20.54
    5
    Size of machine
    1800x1665x1725mm
    6
    Weight
    1554Kg

  • 09. Stacker
  • Item
    Name
    Parameter
    1
    Product size
    700x3000mm
    2
    Loading weight
    1t
    3
    Loading height
    500mm
    4
    Size of machine
    3610*2900*1620
    5
    Weight
    586Kg

  • 10. Double head re-winder
  • Item
    Name
    Parameter
    1
    Inner diameter
    120mm
    2
    Outer diameter
    800mm
    3
    Loading weight
    300Kg
    4
    Motor
    Power: 1.5kw, voltage: 380V, 2 sets
    5
    Machine size
    3240x1770x1610mm
    6
    Weight
    1420Kg
