- ABE-6.0-2000 (160T) Expanded Metal Machine（Mold Moving)
Heavy-duty expanded metal mesh machine
Expanded metal making machine

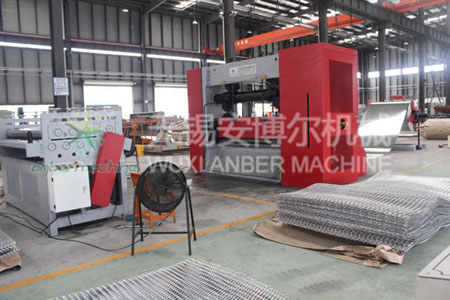

2m expanded metal mesh production line
Expanded mesh machine
Expanded mesh leveling machine
- 01. What is expanded metal mesh?
- Expanded Metal mesh is traditionally seen as a metal material with diamond shaped holes. Expanded Metal is produced by an expanding machine, which uses a pressured slitting and stretching process to transform solid metal sheets and coils into expanded mesh. Most types of metal, including precious and specially produced metals, can be expanded.
- 02.Expanded metal mesh production process
- 1. Sheets or coils or metal are fed into the expanding machine. A little metal can create a lot of mesh, adding value and saving resources and money.
2. Each machine is fitted with a unique "Knife", dedicated to a particular pattern. New patterns and knives can be created in-house for specific applications.
3. The machines are then programmed or manually controlled to ensure the metal is expanded to the exact specification. Rigorous quality checks are carried out to ensure product consistency throughout the expanding process.
4. Using the unique shearing and streching process means very little waste is created. the metal is sheared and then streched in a single process creating the apertures and therefore expanding the metal. The mesh is then either cut into sheets or wound onto coils ready for shipping or further processing. - 03. Composition of expanded metal machine
The expanded metal mesh machine is composed of machine frame, sidewall plate, top plate, drive motor, V type belt wheel transmission mechanism, clutch device, crankshaft Connecting rod system, sliding block, up and down blade and tool holder, material feeding and moving device, lubrication system and electric system.
- 04. Main technical parameters

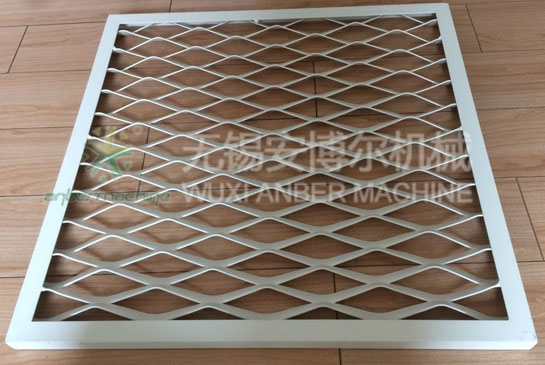

- 05. Typical expanded metal mesh
10T Hydraulic decoiler
Max. Loading weight: 10T
Main motor power: 1.5KW
Max. Width: 2000mm
I.D.: 480-540mm, adjustable
Overall size of machine(L*W*H): 4410*1500*1875mm
Machine weight: 2.8 tons

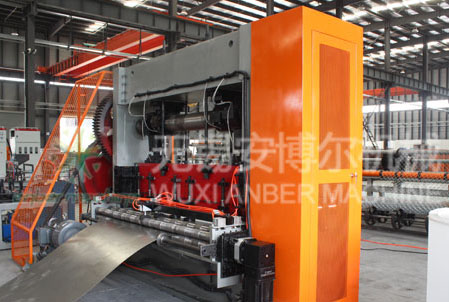

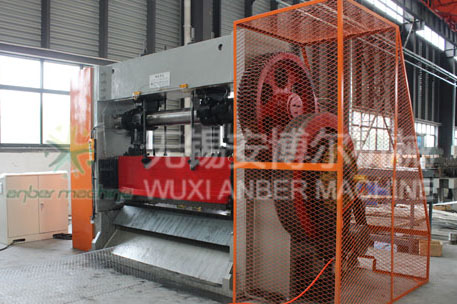

ABE-6.0-2000 expanded metal mesh machine
Nominal Pressure Force: 160 Tons;
Feeding by coil and sheet;
Max. Width of the steel plate: 2000 mm;
Thickness of material: ≤6.0mm for mild steel
Max. Strokes per minute: 80 strokes/min;
Motor power: 30 kw;
Max. LWD: 160 mm;
Overall dimension of main machine (L*W*H): 4150*1900*2570mm;
Machine weight: about 14.5 tons.
Automatic lubrication system;

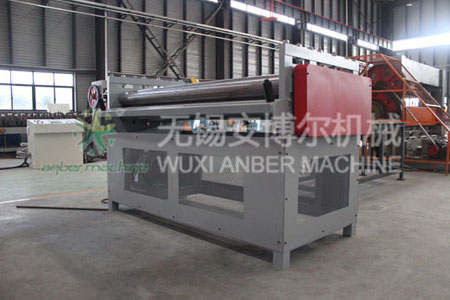

2M Expanded mesh leveling machine
Leveling roller number: 7 pcs+2 pcs feeding roller
Roller diameter: 150mm
Material of roller: 40Cr
Hardness of roller: HRC58°
Motor power: 7.5KW
Overall size(L*W*H)= 2300*2300*1400mm
Machine weight: 3.3T
Max. Loading weight: 10T
Main motor power: 1.5KW
Max. Width: 2000mm
I.D.: 480-540mm, adjustable
Overall size of machine(L*W*H): 4410*1500*1875mm
Machine weight: 2.8 tons
ABE-6.0-2000 expanded metal mesh machine
Nominal Pressure Force: 160 Tons;
Feeding by coil and sheet;
Max. Width of the steel plate: 2000 mm;
Thickness of material: ≤6.0mm for mild steel
Max. Strokes per minute: 80 strokes/min;
Motor power: 30 kw;
Max. LWD: 160 mm;
Overall dimension of main machine (L*W*H): 4150*1900*2570mm;
Machine weight: about 14.5 tons.
Automatic lubrication system;
2M Expanded mesh leveling machine
Leveling roller number: 7 pcs+2 pcs feeding roller
Roller diameter: 150mm
Material of roller: 40Cr
Hardness of roller: HRC58°
Motor power: 7.5KW
Overall size(L*W*H)= 2300*2300*1400mm
Machine weight: 3.3T

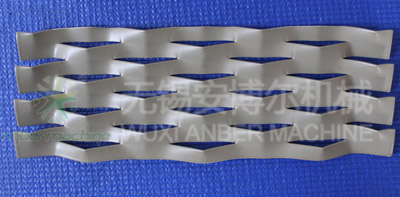

LWD*SWD=85.5*25 (mm)
