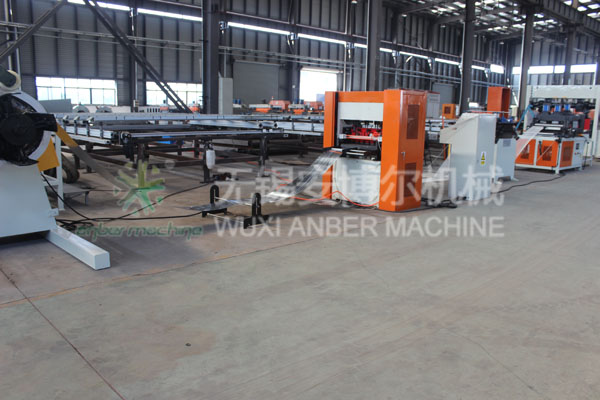

600mm Expanded metal machine line

600mm Expanded metal machine line

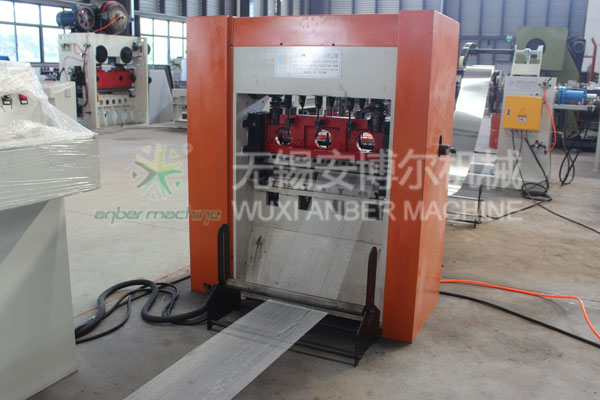

Expanded metal mesh machine

Expanded metal mesh machine

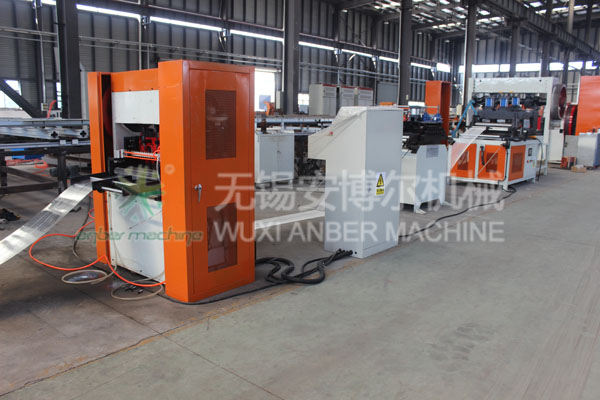

Expanded metal mesh production line

Expanded metal mesh production line

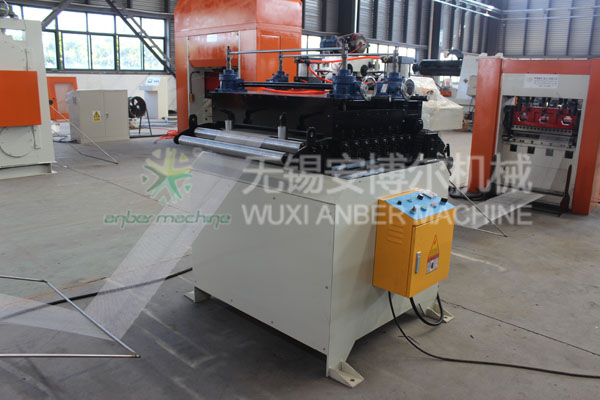

Expanded mesh levelling machine

Expanded mesh levelling machine

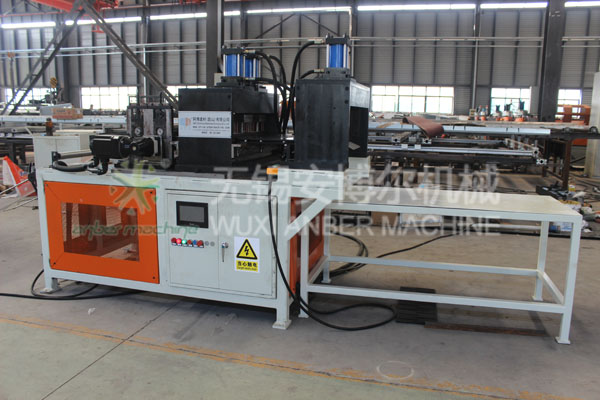

Forming and cutting machine

Forming and cutting machine

  • 01. Description of 600mm expanded metal machine line
  • What is expanded metal mesh?
    Expanded Metal mesh is traditionally seen as a metal material with diamond shaped holes. Expanded Metal is produced by an expanding machine, which uses a pressured slitting and stretching process to transform solid metal sheets and coils into expanded mesh. Most types of metal, including precious and specially produced metals, can be expanded.
    Expanded Metal Mesh Production Process
    1. Sheets or coils or metal are fed into the expanding machine. A little metal can create a lot of mesh, adding value and saving resources and money.
    2. Each machine is fitted with a unique "Knife", dedicated to a particular pattern. New patterns and knives can be created in-house for specific applications.
    3. The machines are then programmed or manually controlled to ensure the metal is expanded to the exact specification. Rigorous quality checks are carried out to ensure product consistency throughout the expanding process.
    4. Using the unique shearing and stretching process means very little waste is created. the metal is sheared and then stretched in a single process creating the apertures and therefore expanding the metal. The mesh is then either cut into sheets or wound onto coils ready for shipping or further processing.
  • 02.Line composition
  • Decoiler-----600mm expanded metal mesh machine-----Mesh leveling machine-----Forming and cutting machine-----Collecting table
  • 03. Main technical parameters of decoiler
  • Model: ABE-KL600
    Function: load two coils
    Max. Width of raw material: 650mm
    Max. Loading weight: 1 ton
    Overall size(L*W*H): 2000*1500*1650mm
    Weight: about 1.3 ton
  • 04. Main technical parameters of expanded metal mesh machine
  • Model: ABE-1.0-600
    Expanding force: 6.3T
    Max. Coil width: 611mm
    Thickness of steel coil: Max. 1.0mm
    Expanding speed: Max. 260 strokes/minute
    Motor power: 4.0KW
    Adjustable distance of connecting rod: 20mm
    Material pressing force: 120KN
    Overall size of machine(L*W*H): 1450*1025*1550mm
    Machine weight: 1.2 ton
    PLC control and auto cutting
    Servo feeding system
  • 05. Main technical parameters of expanded mesh levelling machine
  • Max. Leveling width: 650mm
    Thickness range: 0.1-2.5mm
    Feeding roller diameter * quantity: 72mm*2
    Leveling roller diameter * quantity: 50mm*15
    Motor power: 3KW
    Overall size of machine(L*W*H): 1210*1200*1360mm
    Machine weight: about 0.9 ton
  • 06. Main technical parameters of forming and cutting machine
  • Cutting width: 650mm, thickness: 0.2-0.5mm
    Feeding roller size: φ80×660mm
    Servo motor (feeding): 2.0Kw, 2000rpm, speed ratio i5
    Transmission type: gear
    Material pressure cylinder: cylinder φ40×25mm, (working pressure 0.45~0.6MPa, air source 0.8MPa)
    Forming cylinder: cylinder 2-φ100×50mm (working pressure 10Mpa, system 14Mpa)
    Forming die: material: C12MOV hardness: HRC58~62
    Cut off oil cylinder: oil cylinder φ100×50mm (working pressure 10Mpa, system 14Mpa)
    Cutting die: Material: C12MOV Hardness: HRC58~62
    Cutting speed: 50mm/s, 10 times/min
    Dimensions (length * width * height): 2200*1180*1700mm
    Equipment weight: about 1.5 tons
