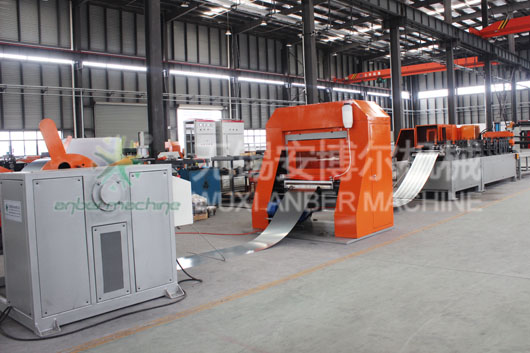

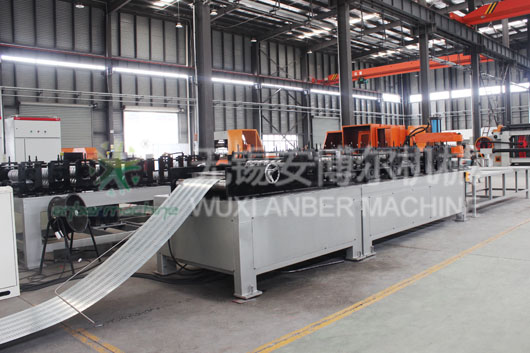

Hi-rib lath production line

Hi-rib lath production line

Rib lath production line

Rib lath production line

Metal lath production line

Metal lath production line

Rib lath machine

Rib lath machine

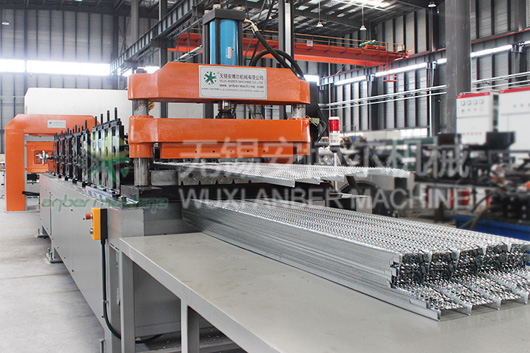

High rib lath machine

High rib lath machine

  • 01. Description of high speed hi-rib lath production line
  • The Hi-rib lath machine is used to produce the hi-rib lath which is applied to plaster and reinforcing the wall.Its excellent mechanical performance, light weight make it suitable for segmentation pouring concrete specially. This machine has advanced scientific and a wide range of practicability.
  • 02.Equipment composition
  • 1.Decoiler
    2.Punching Machine
    3.Forming and cutting integrated machine
    4.Hydraulic cutter (on forming machine)
    5.Collecting table
    6.Electric control cabinet
  • 03. Main technical parameters

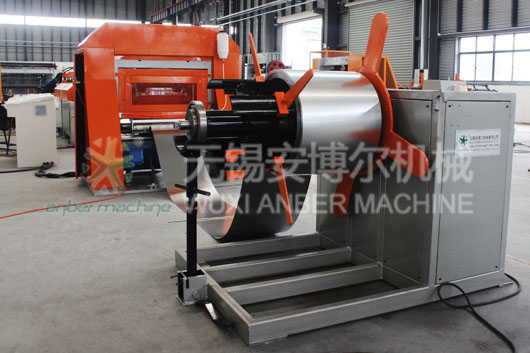

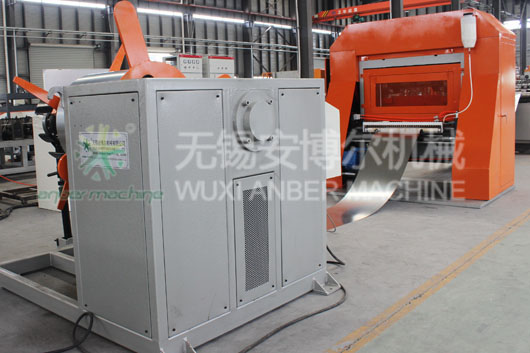

  • 1.Decoiler(Model ABE-KL850)
    No.
    Name
    Parameter
    1
    ID
    Φ420 ~520mm Adjustable
    2
    Loading weight
    2500Kg
    3
    Material width
    850mm
    4
    Centerline height
    962mm
    5
    Decoiling speed
    3.5rpm
    6
    Tension form
    Manual(Rotate)
    7
    Motor
    Power:2.2KW
    Rotation speed:1420r/min (380V/50HZ)
    8
    Reducer
    Speed ratio of reducer 135.83×3
    9
    Voltage
    3-phase,AC380V/50Hz
    10
    Size
    L1250×W2095×H1562mm
    11
    Weight
    800 kg

    2.Punching machine:(Model ABE25-1000×500)
    No.
    Name
    Parameter
    1
    Punching force(Nominal pressure)
    250 KN
    2
    Expanding speed
    430~500 strokes/min
    3
    Highest speed
    3.5m/min
    4
    Feeding distance
    7.5mm
    5
    Press force
    1.5×2 KN
    6
    Slide stroke
    ±8mm
    7
    Link rod adjust distance
    10 mm
    8
    Pay-off Motor
    2.0KW, rotate speed: 2000r/min, Speed ratio of reducer i:5
    9
    Mold driven
    V belt(B type)
    10
    Motor
    Power: 15Kw, rotate speed: 1440r/min
    11
    Voltage
    3-phase, AC380V/50Hz
    12
    Mode
    Effective trolley: 1mm, Material: Cr12MO1V1, Hardness: HRC58-62
    8
    Size
    L1300×W1920×H1775mm
    9
    Weight
    2850Kg

    3.Forming and cutting integrated machine:(Model ABE-CX690)
    No.
    Name
    Parameter
    1
    Former roller
    10 passages (10 up, 10 down), roller diameter: φ173.27mm(max),
    material: 40Cr, HRC48
    2
    Driven type
    20A roller chain driven+gear
    3
    Press type
    Bolt press
    4
    Motor
    Power:5.5KW, rotate speed: 1440r/min; Speed ratio of reducer:i 49.16
    5
    Voltage
    3-phrase,AC 380V/50Hz;
    6
    Size
    L5350×W1430×H1700mm
    7
    Weight
    3500Kg

    4.Hydraulic cutter (on forming machine)
    No.
    Name
    Parameter
    1
    Shear force
    Hydraulic fluid 40#,system pressure 10MPa,
    hydro-cylinderφ63×300mm
    2
    Cutting blade
    Material:Cr12MO1V1,Hardness:HRC58-62
    3
    Cutting speed
    Adjustable, encoder count, length cut
    4
    Motor
    Power 5.5KW,1440rpm
    5
    Voltage
    Three phrase,AC 380V/50Hz;
    6
    Size
    L380×W1096×H1870mm
    7

    Weight

    395Kg


    5.Collecting table
    Abstract:Made by welding with the profile.

    No.

    Name

    Parameter

    1

    Size

    L 3520×W 1020×H1 712 mm

    2

    Weight

    187Kg

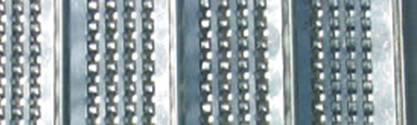

  • 04. The finished products (rib lath)
  • rib lath
    Hi-Rib lath

    Hi-rib lath (high ribbed lath/High Ribbed Formwork) is manufactured from hot-dipped galvanized steel sheets. has been applied to the concrete structure of porjects all over the world. As early as 1969, it has tested and verified by British Cement Association of and many architecture-structure experts in ESPM that it is superior over traditional template including wooden template, steel temlate etc. Because it has better stress stress strength and free shape. It is mostly used as concrete permanent dismantle free template for civil engineering such as tunnel, bridge, raft-style foundation, sewer system, subways, retaining wall, nuclear power station, docks, storang tanks, skysrapers, ocean engineering and irregular or curved shapes.
    Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. as concrete permanent assembly-free formwork
    Installation:
    Hi-rib lath is ideal for refurbishing damaged or aged masonry walls, when a key for rendering is not certain due to disintegration or softening of the wall face.
    Lath should be fixed with apexes of ribs against the wall, edge ribs of sheets nesting into each other should be wire-tied every 15cm and ends of sheets should be lapped not less than 2.5cm and nesting ribs securely tied together.
    Stainless steel fixings should be used at sufficient intervals to hold the lath firmly in position.

    Model
    Weight
    Material thickness
    Rib height
    Rib distance
    Width
    Length
    ABE-HB30/0.8
    2.6kg
    0.30mm
    20.5mm
    89mm
    450mm
    2200mm
    ABE-HB30/0.5
    12.7mm
    89mm
    ABE-HB35/0.8
    3kg
    0.35mm
    20.5mm
    89mm
    ABE-HB35/0.5
    12.7mm
    89mm
    ABE-HB45/0.8
    3.4kg
    0.45mm
    20.5mm
    89mm
    ABE-HB45/0.5
    12.7mm
    89mm
    ABE-HB50/0.8
    3.8kg
    0.50mm
    20.5mm
    89mm
    ABE-HB55/0.8
    4.2kg
    0.55mm
    20.5mm
    89mm


    Hi-rib lath Hi-rib formwork mesh
