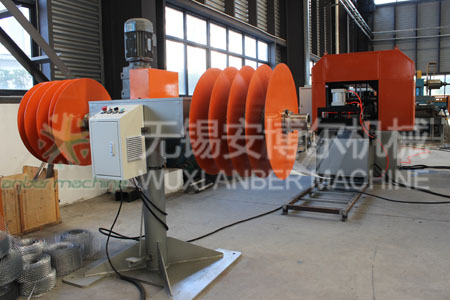

Brickwork reinforcement machine

Brickwork reinforcement machine

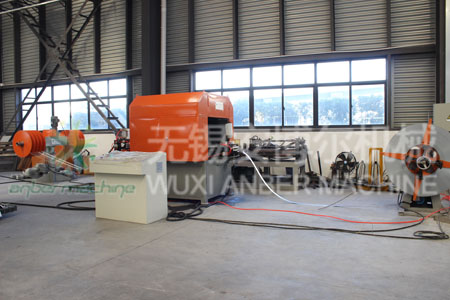

Brickwork reinforcing mesh Machine

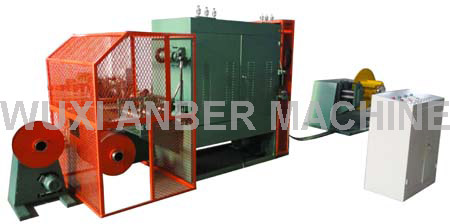

Brickwork reinforcing mesh machine

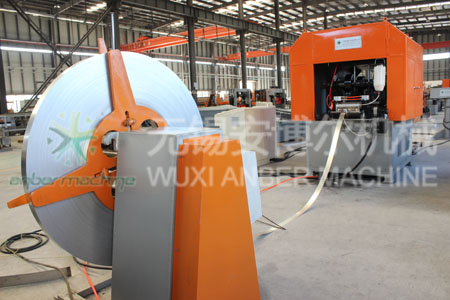

Brickwork reinforcement machine

Brickwork reinforcement machine

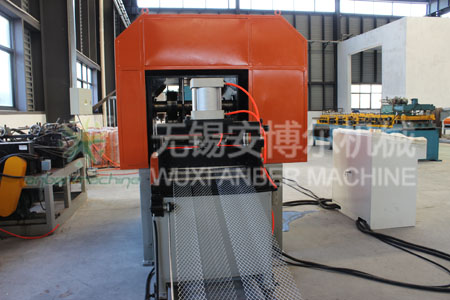

Diamond expanded mesh machine

Diamond expanded mesh machine

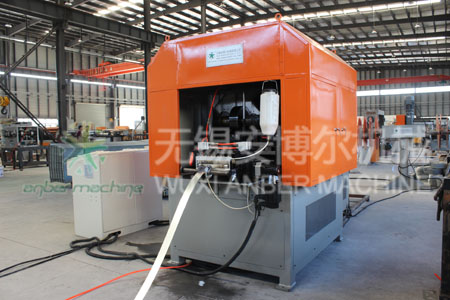

Coil mesh machine

Coil mesh machine

  • 01. Instruction of brickwork reinforcing mesh production line
  • Based on market demand, our company has designed and developed this professional production line of coil mesh independently. It features low noise, high yield, energy saving and environment protection. It can produce various type of coil mesh with width from 50mm to 200mm. With high efficiency, it can produce 2-4 line of mesh at a time. And also, its operation is easy. This production line is mainly composed of three parts: feed unit, strip punching machine and receiving unit. It also includes two speed induction-adjustment devices.
  • 02.Decoiler parameter
  • Maximum inner diameter: 480mm, can be adjustable
    Loading weight: 1000Kgs
    Max. strip width: 150mm
    Motor: 1.5kw
    Machine weight: 500kg
    Overall size: 1100*700*700mm
  • 03. Expanded main machine parameter
  • Machine size: 3000mm*1200mm*1900mm
    Weight: 4T
    Motor power: 4kw
    Mesh opening: 15×25mm or accoring to customer's requirement
    Mesh width: 200mm*2; 100mm*4; 150mm*2
    Punching force: 16T
    Material thickness: 0.2-0.7mm
  • 04. Mesh recoiler parameter
  • Automatic mesh recoiler and steel trap recoiler
    • 05. The finished products (Brickwork Reinforcing Mesh)

    • expanded metal coil mesh
      brickwork reinforcing mesh

      Brickwork freinforcing mesh
      Application of brickwork reinforcing mesh
