• ABE-8.0-2500 (260T) Expanded Metal Machine

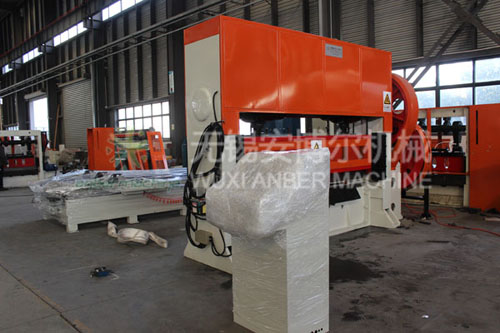

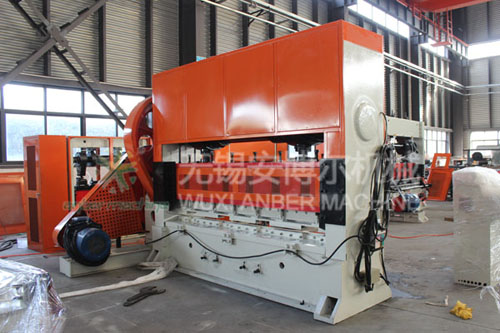

Heavy type expanded metal mesh machine

Heavy type expanded metal mesh machine

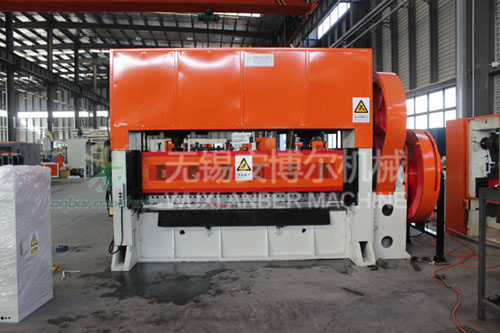

Expanded metal mesh machine

Expanded metal mesh machine

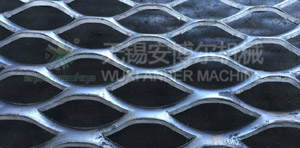

Mesh out of the metal expander

Mesh out of the metal expander

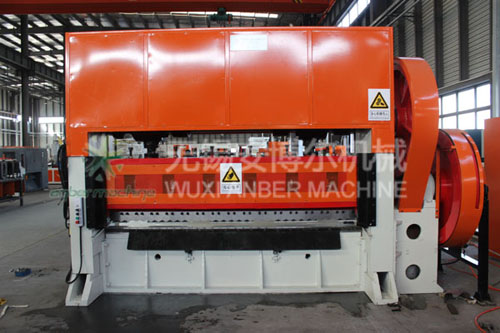

Feeder

Feeder

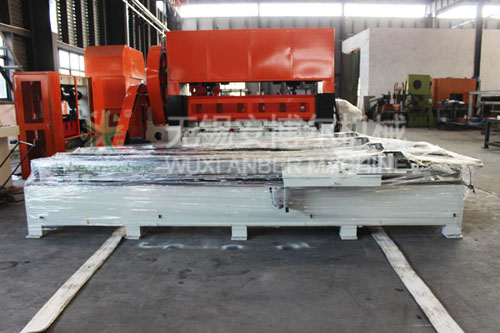

Electric control cabinet

Electric control cabinet

  • 01. Description of automatic expanded metal machine
  • ABE-8-2500 expanded metal machine is heavy-duty expanded metal machine. This kind of metal mesh is mainly used for shipbuilding, mining, machinery, construction, transportation, oil, urban construction, hardware, protective and so on. The machine can also punch stainless steel, aluminum and other materials board network, its use will be more extensive. It adds automatic lubricating system and feeding system by numerical step motor on basis of original skilled technique. It gets good effect after being used. It has improved a lot on control and security. Its structure has characteristics of rationality, good appearance, environmental protection, energy saving.
  • 02.Composition of metal expander
  • The expanded metal mesh machine is composed of framework, driving system, crankshaft connection rod, knife rest, feeding system, swing unit and electric system.
  • 03. Main technical parameters
  • Model: ABE-8-2500;
    Normal pressure: 260 Tons;
    Thickness of material: ≤8mm;
    Width of material: ≤2000mm;
    Distance of feed: 0-7mm;
    Stroke per min: 30-40 times / min;
    Mesh size of LW: Max. 100mm;
    Motor power: 55KW;
    Rotation speed of motor: 1480r/min;
    Weight: about 26 tons;
    Overall dimension (L*W*H): 4400*3500*2700mm

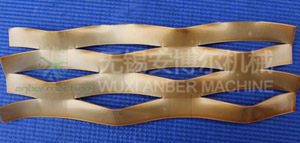

  • 04. Typical expanded metal mesh

  • LWD*SWD=115*48(mm)LWD*SWD=110*25(mm)

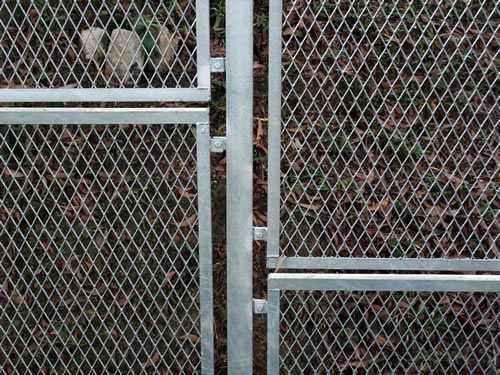

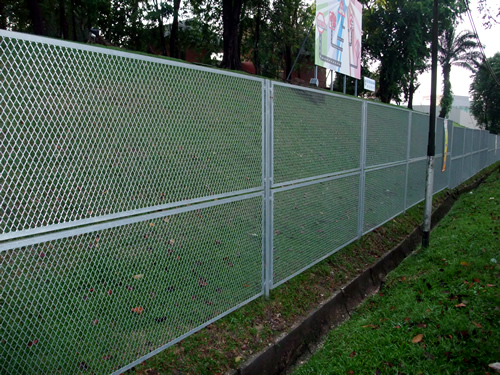

  • 05. Typical application of expanded metal mesh
