• ABE-1.5-1250 (25T) Expanded Metal Machine


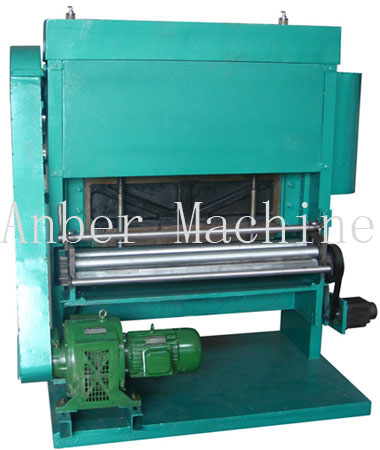

Expanded metal mesh machine

Expanded metal mesh machine

Expanded-metal mesh production line

Expanded-metal mesh production line

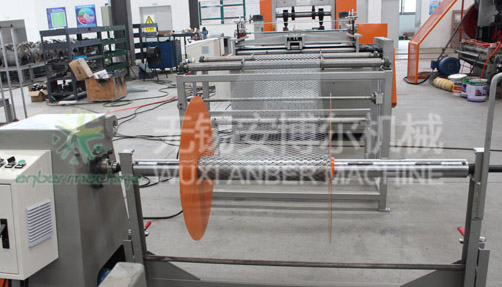

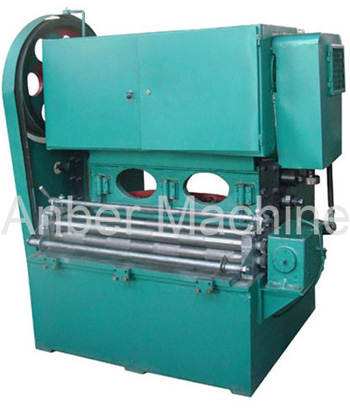

Steel metal expanding machine

Steel metal expanding machine

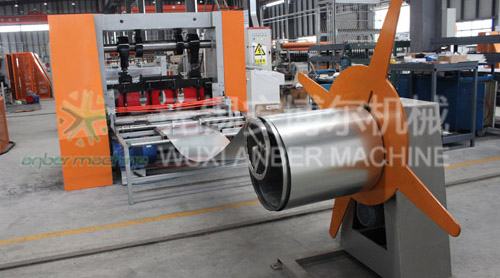

Expanded metal mesh making machine

Expanded metal mesh making machine

Metal expander

Metal expander

  • 01. What is expanded metal mesh?
  • Expanded Metal mesh is traditionally seen as a metal material with diamond shaped holes. Expanded Metal is produced by an expanding machine, which uses a pressured slitting and stretching process to transform solid metal sheets and coils into expanded mesh. Most types of metal, including precious and specially produced metals, can be expanded.
  • 02.Expanded metal mesh production process
  • 1. Sheets or coils or metal are fed into the expanding machine. A little metal can create a lot of mesh, adding value and saving resources and money.
    2. Each machine is fitted with a unique "Knife", dedicated to a particular pattern. New patterns and knives can be created in-house for specific applications.
    3. The machines are then programmed or manually controlled to ensure the metal is expanded to the exact specification. Rigorous quality checks are carried out to ensure product consistency throughout the expanding process.
    4. Using the unique shearing and streching process means very little waste is created. the metal is sheared and then streched in a single process creating the apertures and therefore expanding the metal. The mesh is then either cut into sheets or wound onto coils ready for shipping or further processing.
  • 03. Description of expanded metal machine
  • This expanded metal mesh machine can process cold-rolled steel, aluminum material to expanded mesh with hexagonal, diamond, half round, etc. which are used for building, hardware, machine tool, electric industrial, protective and decoration of household electrical appliances.
    Material strength is under 450N/mm2, material with elongation over 25%.
    Expanded process is finished by crankshaft connecting rod system, moved by cam,feed by stepping motor, the feeding distance can be easily adjusted. This machine has characteristics of structure, easy operation and steady performance.

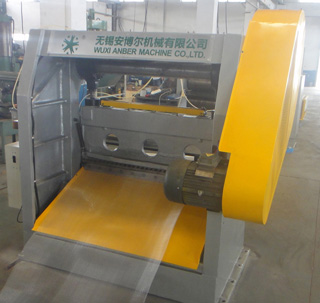

  • 04. ABE-1.5-1250 expanded metal mesh machine
  • Model: ABE-1.5-1250
    Max. Coil width: 1250mm;
    Thickness of steel coil: Max. 1.5mm;
    Expanding speed: Max. 300 strokes/minute;
    Motor power: 7.5KW;
    Expanding force: 25T;
    Overall size of machine(L*W*H):1290*2096*1850mm
    Machine weight: about 3.2 tons
    Controlled by PLC+touch screen; Length calculate+automatic cutting
  • 05. Flattening machine
  • Model: ABE-YP1300
    Roller length: 1300mm
    Roller diameter: 320mm
    Roller material: alloy steel
    Motor power: 5.5kw
    Overall size of machine(L*W*H): 2550*740*1370mm
    Machine weight: 3.0 Tons
  • 06. Expanded mesh straightening machine
  • Material thickness: 0.5-1.2mm
    Max. mesh width: 1300mm
    Roller diameter: 55-60mm
    Motor power: 3.0kw
    Roller quantity: 15 pcs leveling + 2 pcs feeding
    Roller material: H13, heat treatment
    Speed: 8-12m/min
    Overall size of machine(L*W*H): 2150*1345*1580mm
    Machine weight: 1.5 Ton
  • 07. Re-coiler
  • Loading weight: 100kg
    Inner diameter: φ75~78mm
    Recoiling width: ≤1250mm
    Recoiling speed: 3-5m/min
    Overall size of machine(L*W*H): 2040*680*1020mm
    Machine weight: 300kg

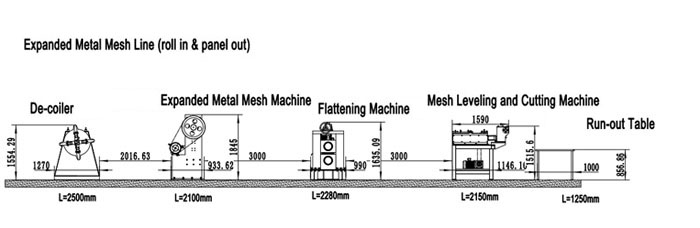

  • 08. Layout of the expanded metal mesh machine for filter

  • 09. Typical expanded metal mesh

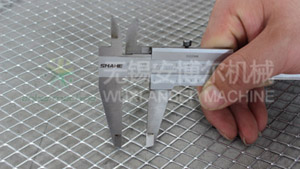

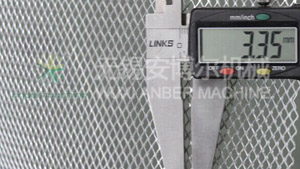

  • LWD*SWD=17*11(mm)LWD*SWD=6.4*3.35(mm)
  • 10. Application: filtration market
