- ABE-6.0-3200(160T) Expanded Metal Mesh Machine
Expanded mesh machine

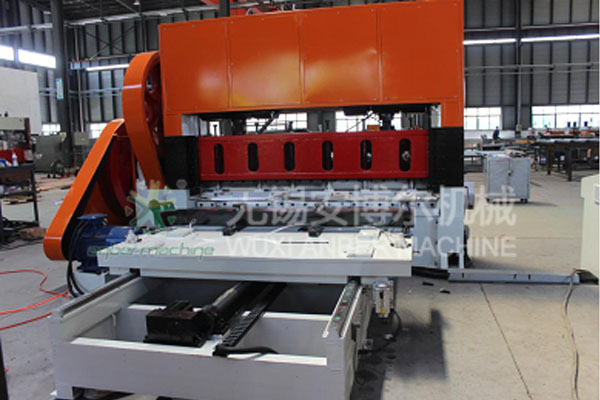

Expanded metal making machine
- 01. Description of ABE-6.0-3200(160T) expanded metal mesh machine
- Our machine is equipped with servo drives and PLC to assure the capabilities of producing a wild range of expanded metal products in high speed as well as delivering the high quality of outputs. You can produce either with coil or with single sheet of steel on the same machine.
- 02.Main technical parameters
- Model: ABE-6.0-3200
Nominal Pressure Force: 160 Tons
Max. Width of the steel plate: 3200 mm
Thickness of material: ≤6.0mm for mild steel(according to mesh size and width)
Max. Strokes per minute: 45 strokes/min
Stroke of slide: 80mm
Main Motor power: 30 kw
Max. LWD: 200 mm
Max. SWD: 100mm
Overall dimension of main machine (L*W*H): 5000*3550*2650mm
Machine weight: about 21 tons
