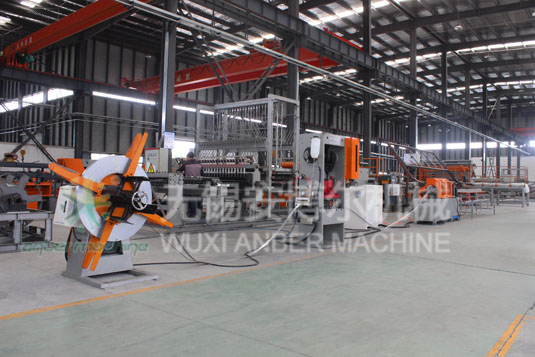

Angle bead expanding machine

Angle bead expanding machine

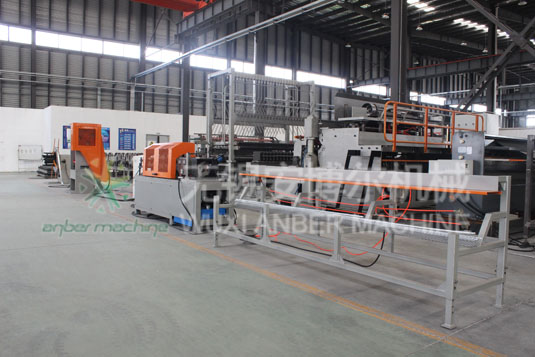

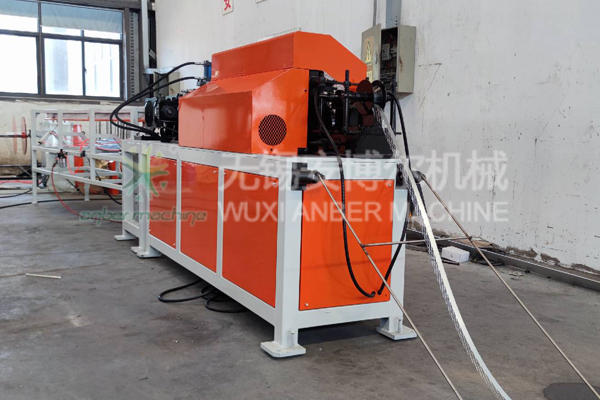

Corner bead production line

Corner bead production line

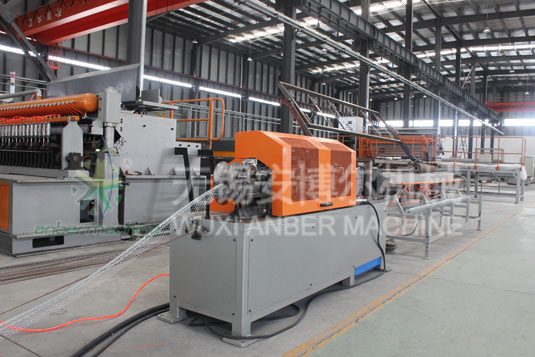

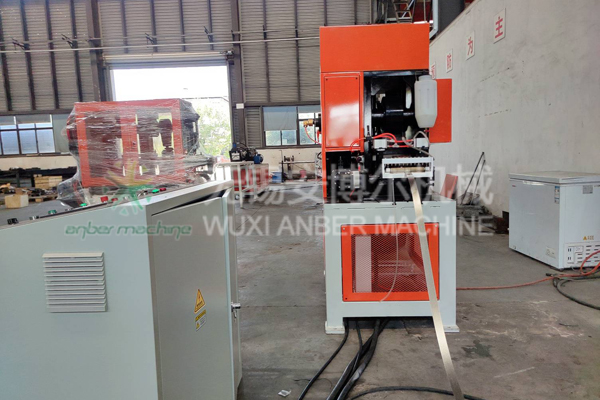

Expanded angle bead machine

Expanded angle bead machine

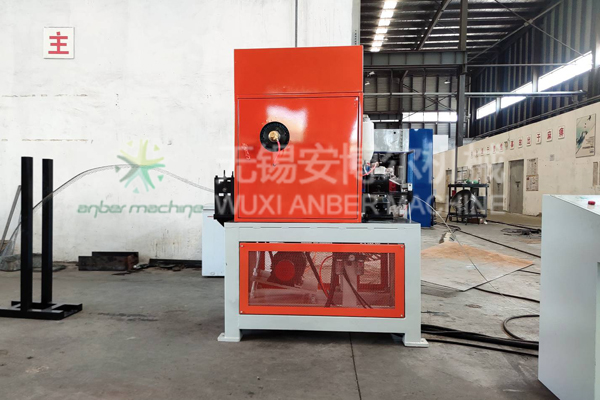

Angle beads machine

Angle beads machine

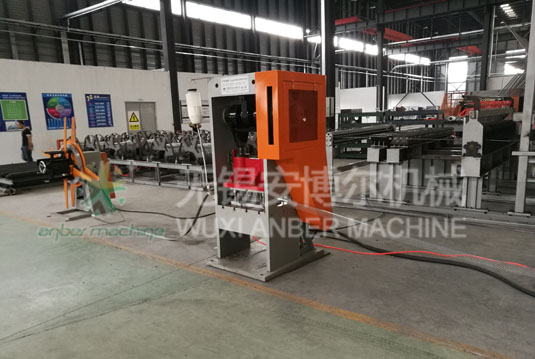

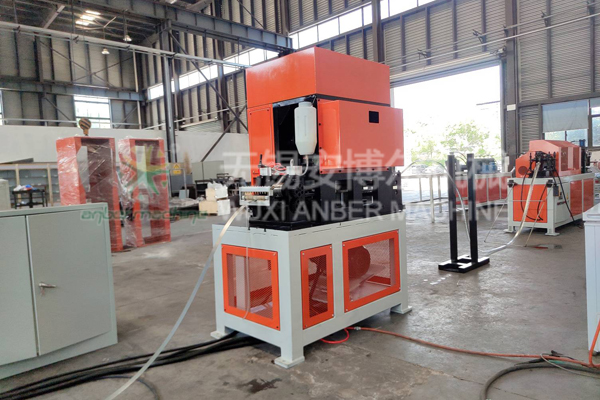

Corner bead making machine

Corner bead making machine

  • 01. Description of angle bead machine

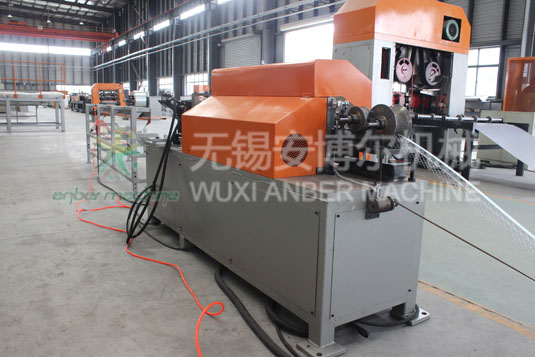

  • Angle bead production line is used to produce the angle bead which is mainly used to protect the angle of the wall.
  • 02.Parameter

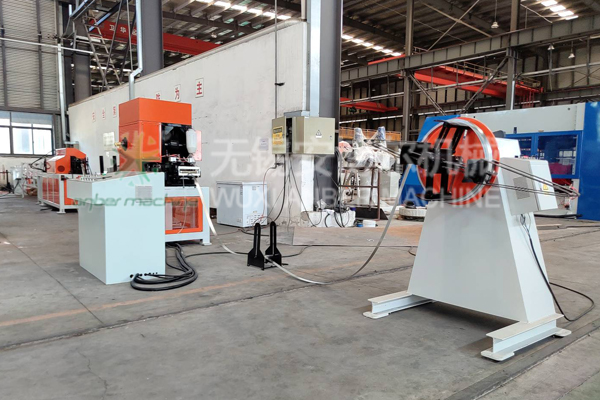

  • Seen on the picture, the “V” type angle bead production line consists of five parts: uncoiler, angle bead machine, electric control cabinet, roller profiling machine and collecting table.
    Maximum inner diameter: 480mm, can be adjustable
    Loading weight: 1000Kgs
    Max. strip width: 150mm
    Total motor power: 9.5kw
    Punching press: 15Tons
    Mesh opening size: 25*10mm, according to the draw
    Flange size: 30*30mm, 50*50mm, 70*70mm or according to the draw
    Strand width: 1.5mm
    Material thickness: 0.3-0.7mm
    Production speed: 300 strokes/min
    Layout size: 8600*1000*1750mm
    Machine weight: 4980kg
    Max. Length : 3,000mm

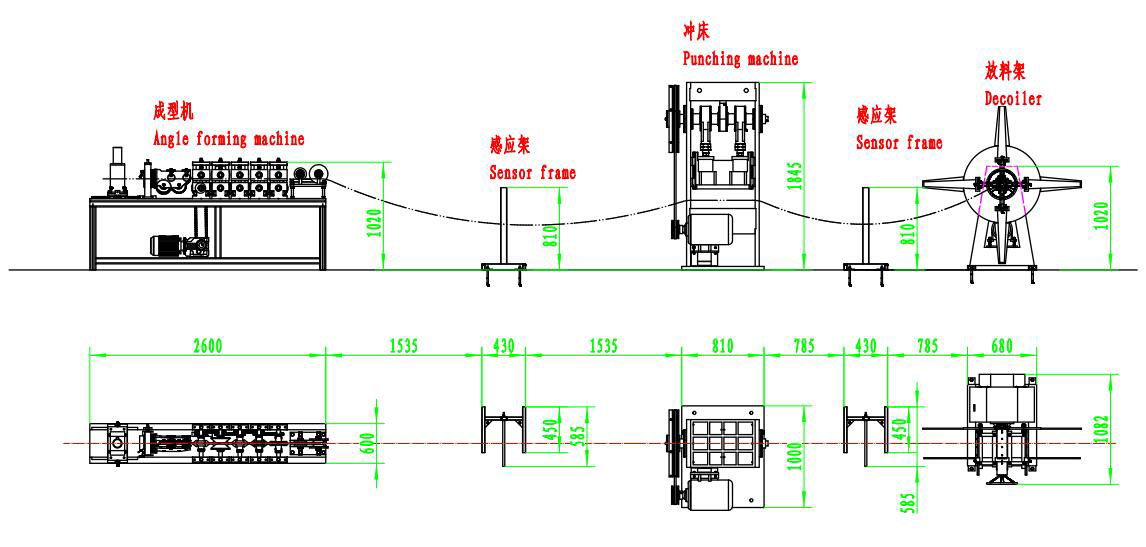

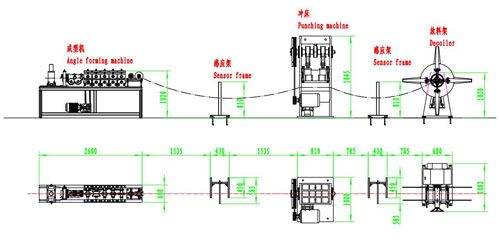

  • 03. Layout of angle bead machine
  • 04. The finished products (angle bead)
  • angle bead
    Angle bead -01
    Angle bead-02
    Angle bead-03
    Angle bead-04
    angle bead
