ABE-2.5-1500 (40T) expanded metal machine


What is expanded metal mesh?
  Expanded Metal mesh is traditionally seen as a metal material with diamond shaped holes. Expanded Metal is produced by an expanding machine, which uses a pressured slitting and stretching process to transform solid metal sheets and coils into expanded mesh. Most types of metal, including precious and specially produced metals, can be expanded.

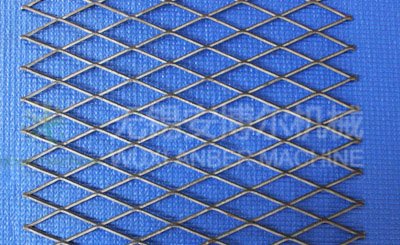

Expanded metal mesh

Expanded metal mesh

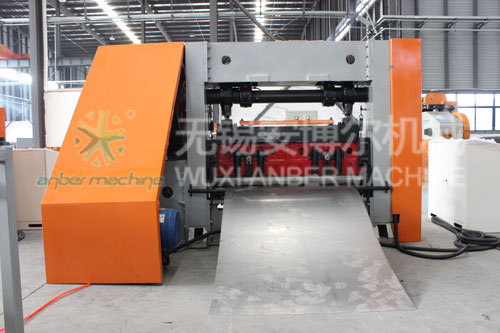

Expanded metal mesh machine

Expanded metal mesh machine

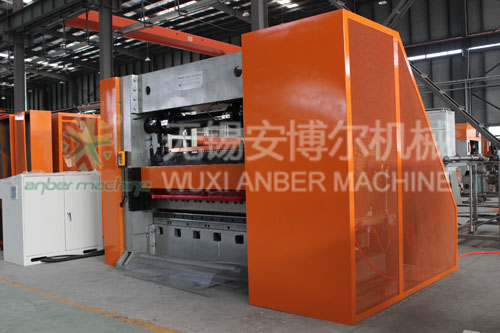

Expanded metal mesh production line

Expanded metal mesh production line

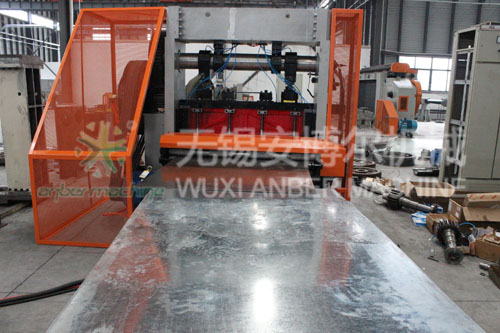

Metal expander

Metal expander

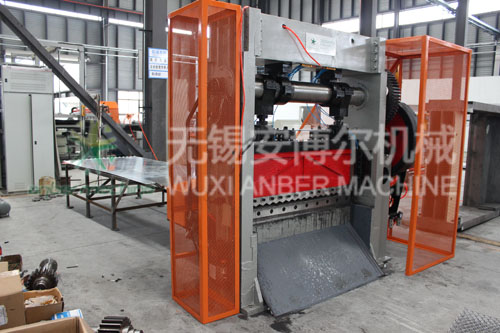

Steel metal expanding machine

Steel metal expanding machine


Expanded metal mesh production process:
  1. Sheets or coils or metal are fed into the expanding machine. A little metal can create a lot of mesh, adding value and saving resources and money.
2. Each machine is fitted with a unique "Knife", dedicated to a particular pattern. New patterns and knives can be created in-house for specific applications.
3. The machines are then programmed or manually controlled to ensure the metal is expanded to the exact specification. Rigorous quality checks are carried out to ensure product consistency throughout the expanding process.
4. Using the unique shearing and stretching process means very little waste is created. the metal is sheared and then stretched in a single process creating the apertures and therefore expanding the metal. The mesh is then either cut into sheets or wound onto coils ready for shipping or further processing.
Main technical parameters:
  Model: ABE-2.5-1500
Expanding force: 40T
Max. Coil width: 1500mm
Thickness of steel coil: Max. 2.5mm
Expanding speed: 95-120 strokes/minute
Motor power: 11KW
Adjustable distance of connecting rod: 30mm
Slide stroke: 45mm
Overall size (L*W*H): 3200*2000*2100mm
Machine weight: about 6.0 tons
Typical expanded metal mesh:

LWD*SWD=60*25(mm)
Typical application of expanded metal mesh:
