Architrave bead production line


Description of architrave bead production line:

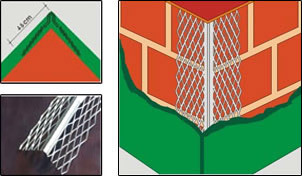

  Architrave bead production line is used to produce the architrave bead which is mainly used to protect the angle of the wall.

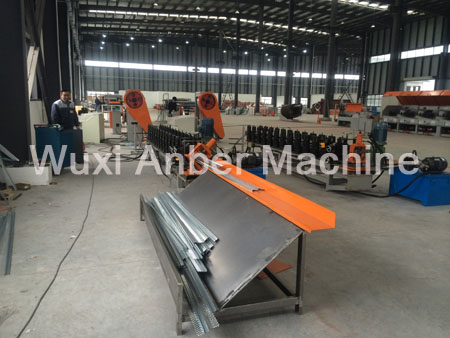

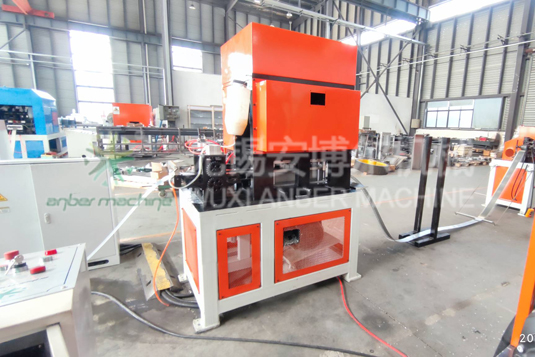

Architrave bead production line

Architrave bead production line

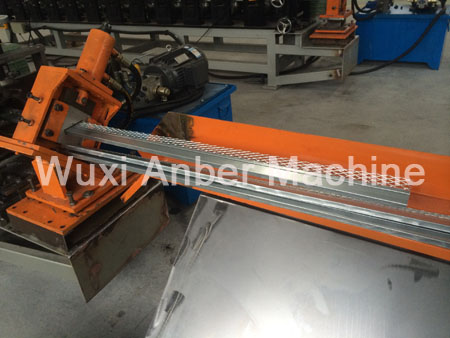

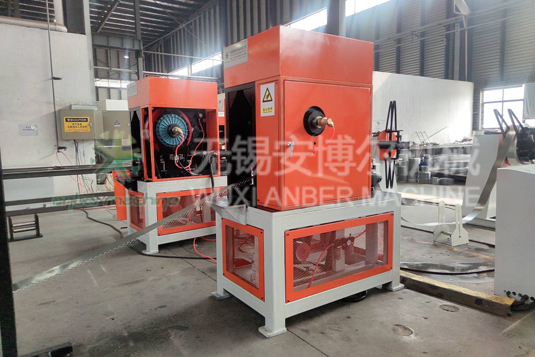

Architrave beads production line

Architrave beads production line

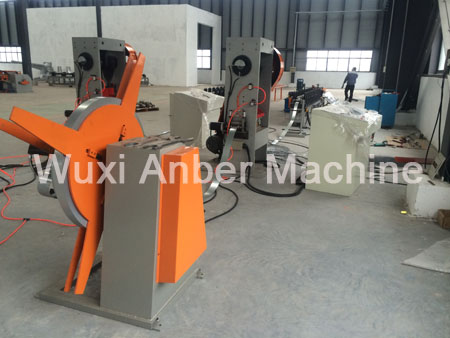

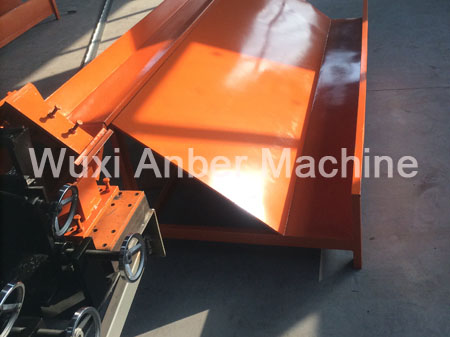

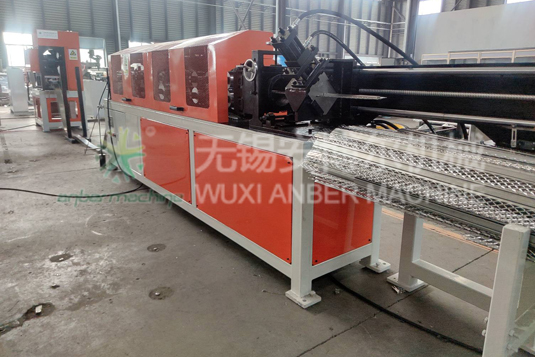

Architrave beads machine

Architrave beads machine

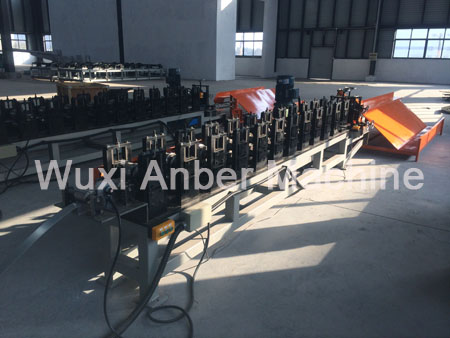

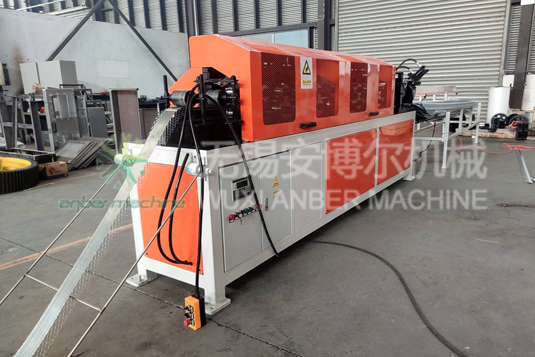

Expanded architrave bead machine

Expanded architrave bead machine

Architrave beads machine

Architrave beads machine

Expanded architrave bead machine

Expanded architrave bead machine


Maximum inner diameter: 480mm, can be adjustable
Loading weight: 1000Kgs
Max. strip width: 150mm
Total motor power: 9.5kw
Punching press: 15Tons
Mesh opening size: 25*10mm, according to the draw
Material thickness: 0.3-0.7mm
Production speed: 300 strokes/min
Layout size: 8600*1000*1750mm
Machine weight: 4980kg
Max. Length – 3,000mm

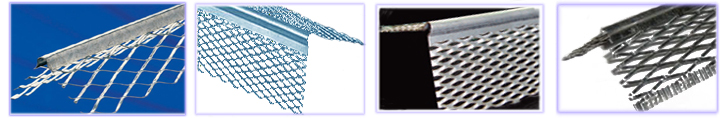

The finished products (architrave bead)

angle bead
Angle bead -01
Angle bead-02
Angle bead-03
Angle bead-04
angle bead
