• ABE-6.0-1600(160T) Expanded Metal Mesh Machine

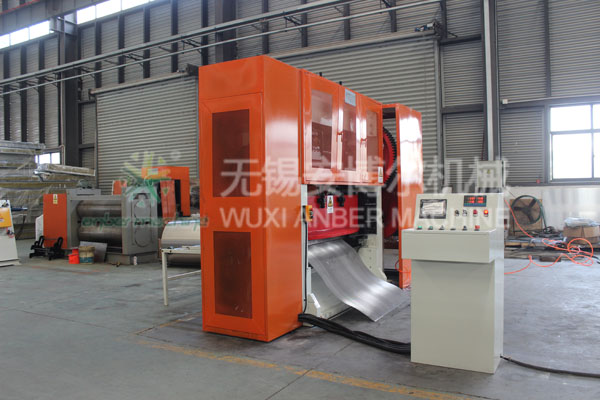

Expanded metal mesh machine

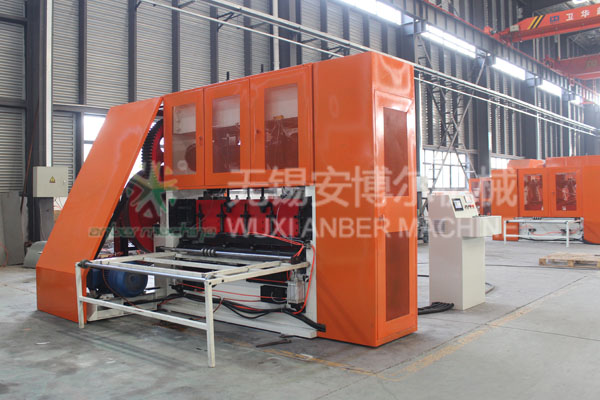

Expanded metal mesh machine

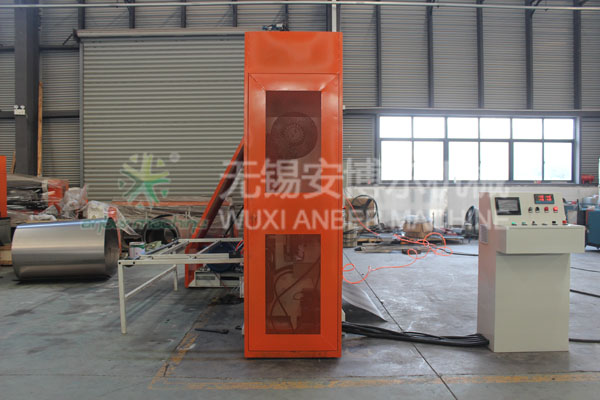

Expanded metal machine

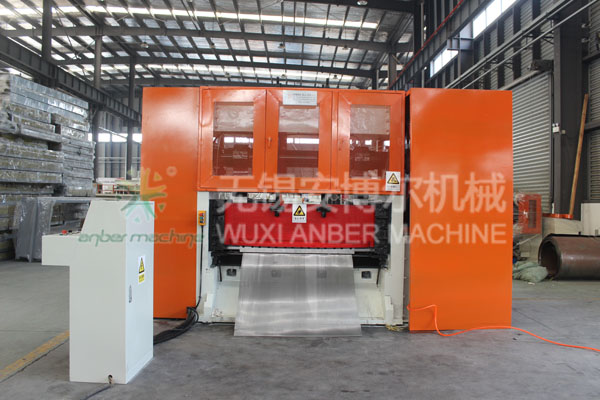

Expanded metal machine

  • Expanded metal mesh machine
  • Expanded metal machine
  • 01. Description of ABE-6.0-1600(160T) expanded metal mesh machine
  • Our machine is equipped with servo drives and PLC to assure the capabilities of producing a wild range of expanded metal products in high speed as well as delivering the high quality of outputs. You can produce either with coil or with single sheet of steel on the same machine.
  • 02.Features
  • Accurate, no-waste and high speed production
    Easy maintenance and user-friendly control panel
    Suitable for both single metal sheet and coil production
    Automatic lubrication system
  • 03.Composition of expanded metal machine
  • The expanded metal mesh machine is composed of machine frame, sidewall plate, top plate, drive motor, V type belt wheel transmission mechanism, clutch device, crankshaft Connecting rod system, sliding block, up and down blade and tool holder, material feeding and moving device, lubrication system and electric system.
  • 04.Main technical parameters
  • Model: ABE-6.0-1600
    (Suitable for both single metal sheet and coil production)
    Nominal Pressure Force: 160 Tons
    Max. Width of the steel plate: 1600 mm
    Thickness of material: ≤6.0mm for mild steel(according to mesh size and width)
    Max. Strokes per minute: 85 strokes/min
    Stroke of slide: 80mm
    Main Motor power: 22 kw
    Servo motor power: 3kw
    Max. LWD: 200 mm
    Max. SWD: 100mm
    Overall dimension of main machine (L*W*H): 3420*1925*2500mm
    Machine weight: about 11 tons
    Automatic lubrication system
    Servo motor feeding system
    Control system: PLC (length calculate, pieces calculate and auto cutting)
  • 05.Optional equipment
  • • Decoiler
    • Flattener
    • Multi-roller leveler
