ABE-GS40-1250 high speed expanded metal machine


What is expanded metal mesh?
  Expanded Metal mesh is traditionally seen as a metal material with diamond shaped holes. Expanded Metal is produced by an expanding machine, which uses a pressured slitting and stretching process to transform solid metal sheets and coils into expanded mesh. Most types of metal, including precious and specially produced metals, can be expanded.
Expanded metal mesh production process:
  1. Sheets or coils or metal are fed into the expanding machine. A little metal can create a lot of mesh, adding value and saving resources and money.
2. Each machine is fitted with a unique "Knife", dedicated to a particular pattern. New patterns and knives can be created in-house for specific applications.
3. The machines are then programmed or manually controlled to ensure the metal is expanded to the exact specification. Rigorous quality checks are carried out to ensure product consistency throughout the expanding process.
4. Using the unique shearing and stretching process means very little waste is created. the metal is sheared and then stretched in a single process creating the apertures and therefore expanding the metal. The mesh is then either cut into sheets or wound onto coils ready for shipping or further processing.

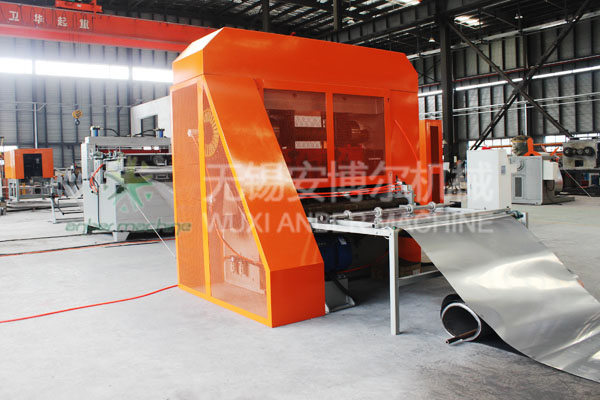

High speed full automatic expanded metal machine

High speed full automatic expanded metal machine

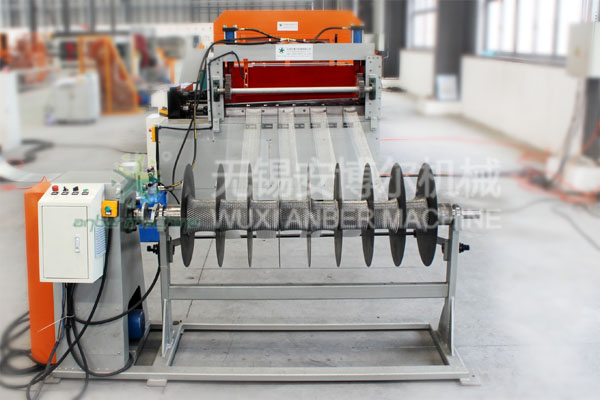

Flatted expanded metal sheet making machine

Flatted expanded metal sheet making machine

Expanded metal mesh machine

Expanded metal mesh machine

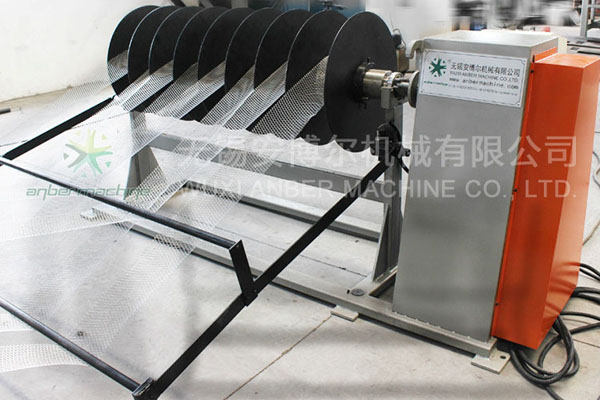

Flatted expanded metal making machine

Flatted expanded metal making machine

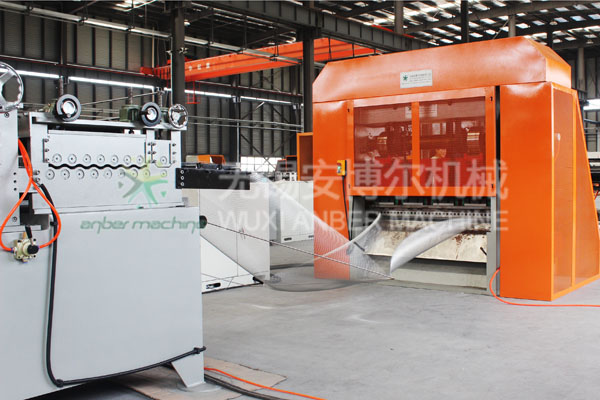

Expanded mesh wire machine

Expanded mesh wire machine



Main technical parameters:

SN
Name
Parameter
1
Punching force(Nominal pressure)
40T
2
Material thickness
≤1.50mm cold steel
3
Width
≤1250mm
4
Punching speed
≤500strokes/min
5
Slider trolley
22mm
6
Pressing force
1.5×4KN
7
Feeding distance
10mm
8
Line feeding distance
0~5mm
9
Mold driven distance
0~20mm
10
Motor
Y2-160M-11/4,11kw,1460RPM
11
Feeding motor
2.0kw/2000 rpm,speed ratio i10
12
Voltage
3 phase,AC380V/50Hz
13
Size
2120*2370*2200mm
14
Weight
4150kg

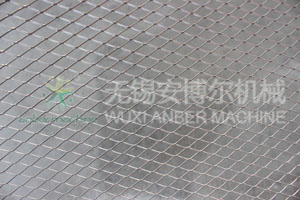

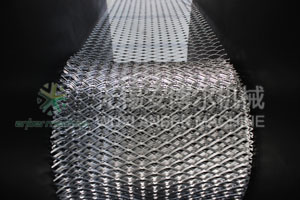

Typical expanded metal mesh:
