• ABE-4.0-1300 (60T) Expanded Metal Machine

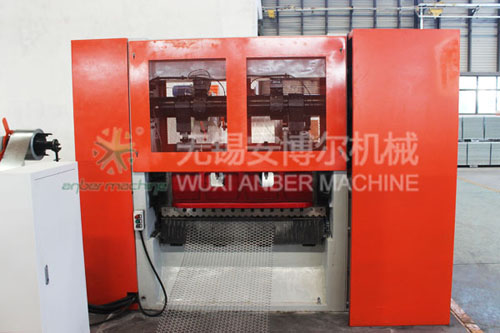

Front view of the metal expander

Front view of the metal expander

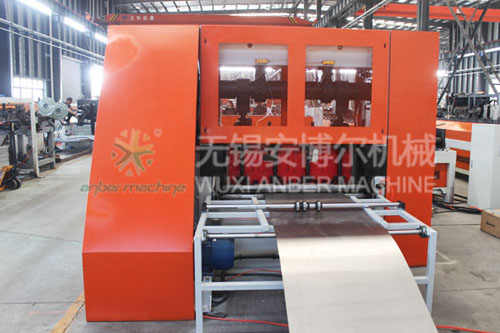

Mesh out part of the metal expander

Mesh out part of the metal expander

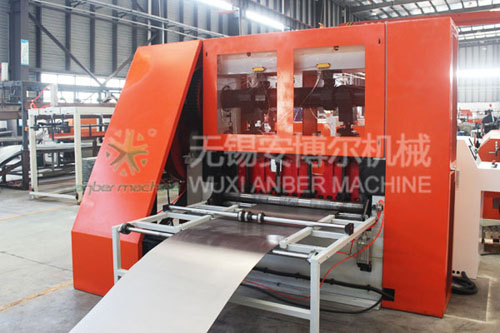

Steel plate feed-in Side of the metal expander

Steel plate feed-in Side of the metal expander

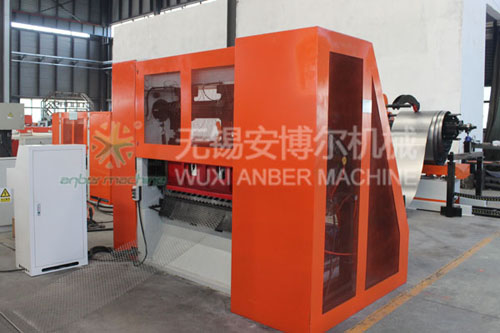

Side view of the metal expander when the mesh out of the machine

Side view of the metal expander when the mesh out of the machine

  • 01. Composition of machine
  • The expanded metal mesh machine is composed of main machine frame, driving system, crankshaft, upper blade frame(movable frame), down blade frame, feeding device, material moving device, lubrication system and electric control cabinet.

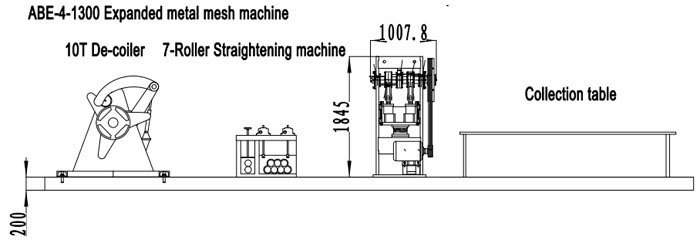

  • 02.Layput of expanded metal mesh machine
  • 03.Main technical parameters
  • Model: ABE-4-1300
    Material: low carbon steel
    Max. width: 1300mm;
    Max. Thickness of steel: 4.0mm;
    Expanding speed: 85 strokes/minute;
    Motor power: 11KW;
    Expanding force: 60T;
    Overall size of machine(L*W*H): 2500*1400*2150mm
    Machine weight: 4.7 tons
    Typical Mesh size: LWD*SWD=25*50mm material: DC53 or according to customer’s demand

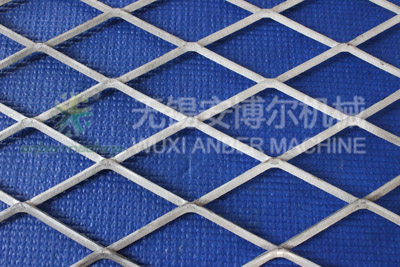

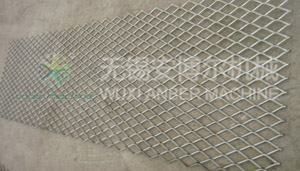

  • 04.Typical expanded metal mesh

  • LWD*SWD=100*52(mm)LWD*SWD=61*25(mm)

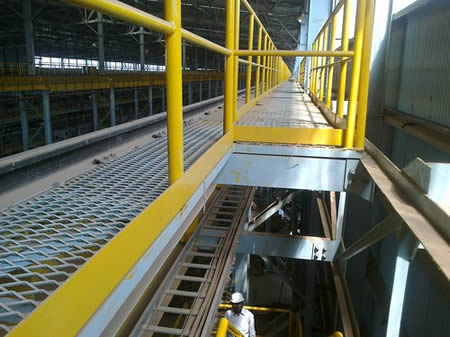

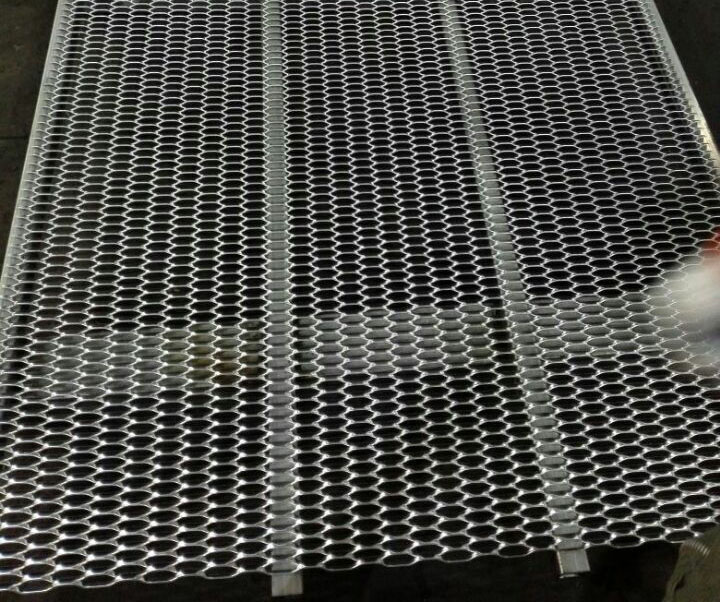

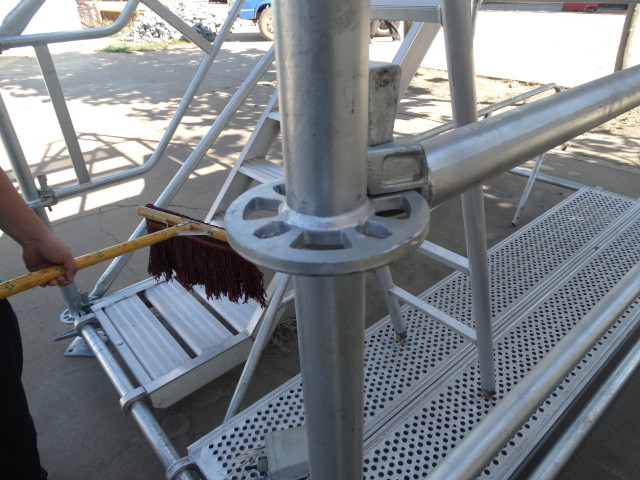

  • 05.Typical application of expanded metal mesh
