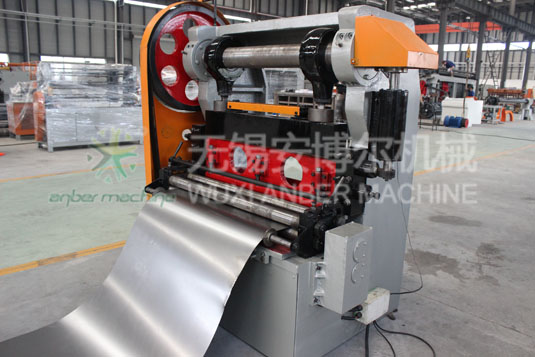

• ABE-1.0-1000 (16T) Expanded Metal Machine

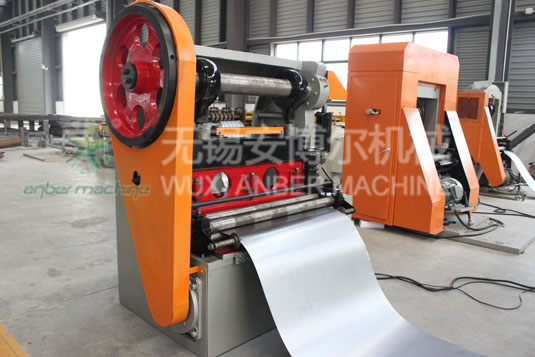

Expanded metal mesh machine

Expanded metal mesh machine

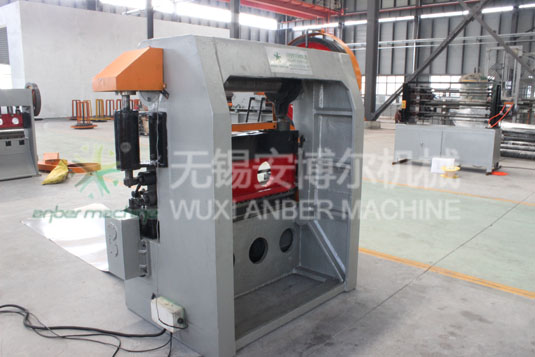

Expanded metal mesh production line

Expanded metal mesh production line

Steel metal expanding machine

Steel metal expanding machine

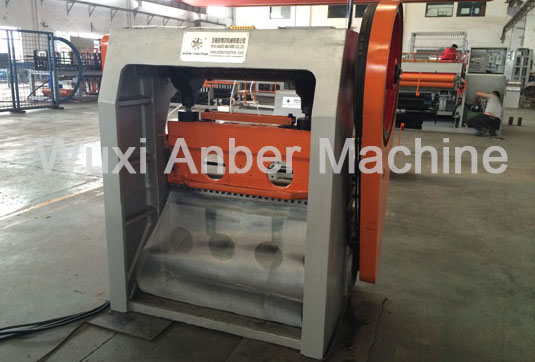

Expanded metal machine

Expanded metal machine

Metal expander

Metal expander

  • 01. What is expanded metal mesh?
  • Expanded Metal mesh is traditionally seen as a metal material with diamond shaped holes. Expanded Metal is produced by an expanding machine, which uses a pressured slitting and stretching process to transform solid metal sheets and coils into expanded mesh. Most types of metal, including precious and specially produced metals, can be expanded.
  • 02.Expanded metal mesh production process
  • 1. Sheets or coils or metal are fed into the expanding machine. A little metal can create a lot of mesh, adding value and saving resources and money.
    2. Each machine is fitted with a unique "Knife", dedicated to a particular pattern. New patterns and knives can be created in-house for specific applications.
    3. The machines are then programmed or manually controlled to ensure the metal is expanded to the exact specification. Rigorous quality checks are carried out to ensure product consistency throughout the expanding process.
    4. Using the unique shearing and streching process means very little waste is created. the metal is sheared and then streched in a single process creating the apertures and therefore expanding the metal. The mesh is then either cut into sheets or wound onto coils ready for shipping or further processing.
  • 03. Composition of machine
  • The expanded metal mesh machine is composed of main machine frame, driving system, crankshaft, upper blade frame(movable frame), down blade frame, feeding device, material moving device, lubrication system and electric control part.
  • 04. Main technical parameters
  • Model: ABE-1.0-1000
    Material: cold/hot rolled steel, galvanized steel, stainless steel, aluminum etc.
    Max. width: 1000mm;
    Max. Thickness of steel: 1.0mm for mild steel;
    Expanding speed: 260-300 strokes/minute;
    Motor power: 5.5KW;
    Expanding force: 16T;
    Overall size of machine(L*W*H): 1700*1100*1800mm
    Machine weight: 2.5 tons
  • 05. Typical expanded metal mesh

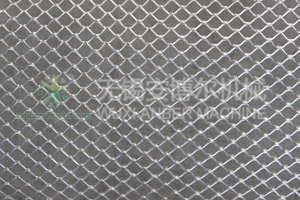

  • LWD*SWD=13*8.2(mm)LWD*SWD=13*8.2(mm)
    • 06. Typical application of expanded metal mesh
