• ABE-1.0-600 (6.3T) Expanded Metal Machine

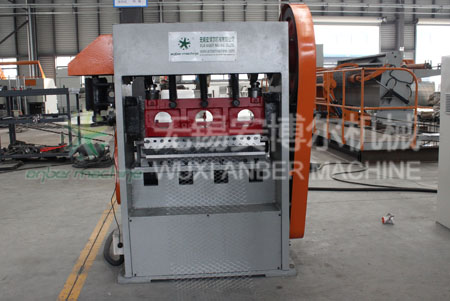

600mm Expanded metal mesh machine

600mm Expanded metal mesh machine

600mm Metal expander

600mm Metal expander

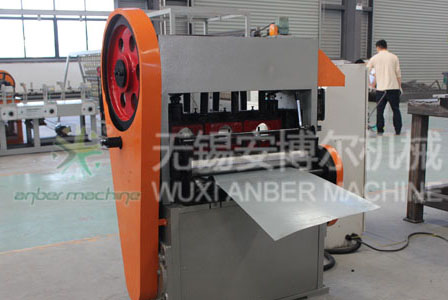

Expanded metal mesh making machine

Expanded metal mesh making machine

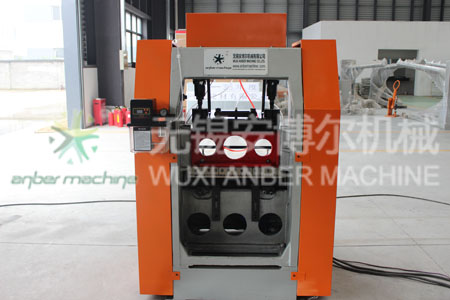

Expanded metal mesh production line

Expanded metal mesh production line

Steel metal expanding machine

Steel metal expanding machine

  • 01. Expanded metal mesh production process
  • 1. Sheets or coils or metal are fed into the expanding machine. A little metal can create a lot of mesh, adding value and saving resources and money.
    2. Each machine is fitted with a unique "Knife", dedicated to a particular pattern. New patterns and knives can be created in-house for specific applications.
    3. The machines are then programmed or manually controlled to ensure the metal is expanded to the exact specification. Rigorous quality checks are carried out to ensure product consistency throughout the expanding process.
    4. Using the unique shearing and streching process means very little waste is created. the metal is sheared and then streched in a single process creating the apertures and therefore expanding the metal. The mesh is then either cut into sheets or wound onto coils ready for shipping or further processing.
  • 02.Description of expanded metal machine
  • This expanded metal mesh machine can process cold-rolled steel, aluminum material to expanded mesh with hexagonal, diamond, half round, etc. which are used for building, hardware, machine tool, electric industrial, protective and decoration of household electrical appliances.
    Material strength is under 450N/mm2, material with elongation over 25%.
    Expanded process is finished by crankshaft connecting rod system, moved by cam,feed by stepping motor, the feeding distance can be easily adjusted. This machine has characteristics of structure, easy operation and steady performance.
  • 03. Main technical parameters
  • Model: ABE-1.0-600
    Max. Coil width: 600mm;
    Thickness of steel coil: Max. 1.0mm;
    Expanding speed: Max. 260-300 strokes/minute;
    Motor power: 2.2KW;
    Expanding force: 6.3T;
    Overall size of machine(L*W*H):1280*600*1400mm
    Overall of electric cabinet(L*W*H): 600*600*1270mm
    Machine weight: 1.3 tons
    Controlled by PLC+touch screen; Length calculate+automatic cutting

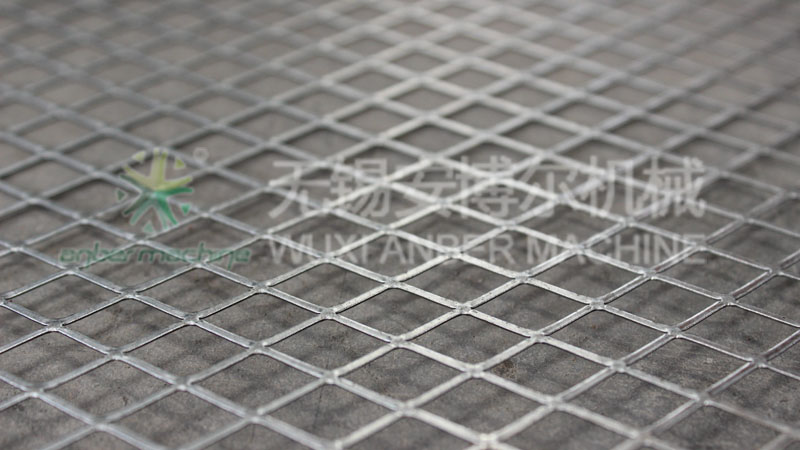

  • 04. Typical expanded metal mesh

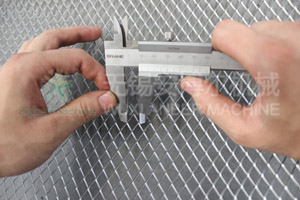

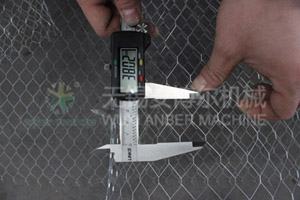

  • LWD*SWD=16.5*10.5(mm)SWD=38mm

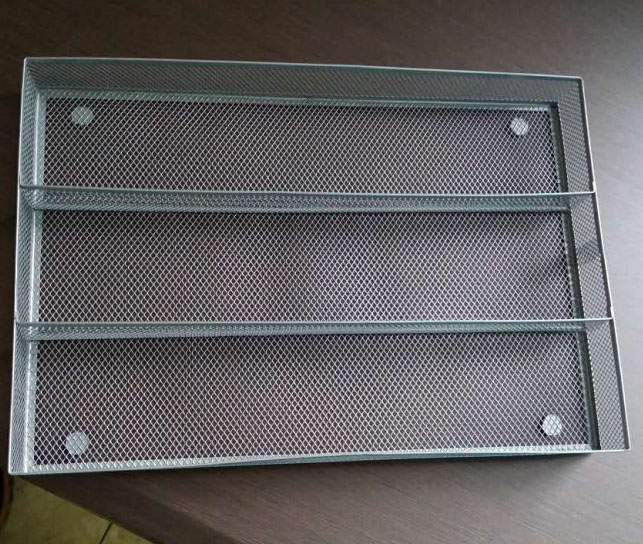

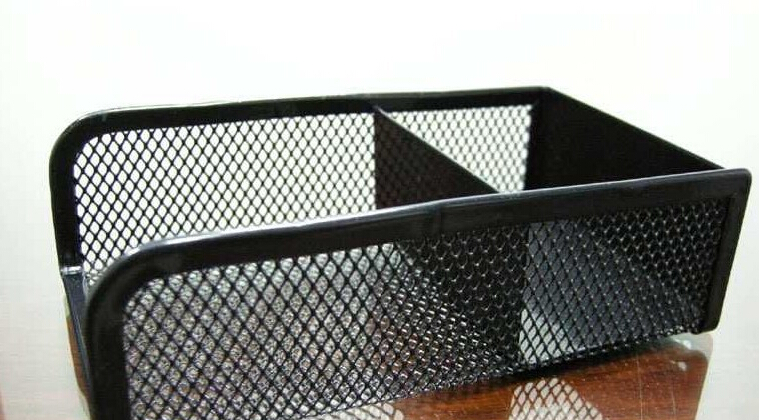

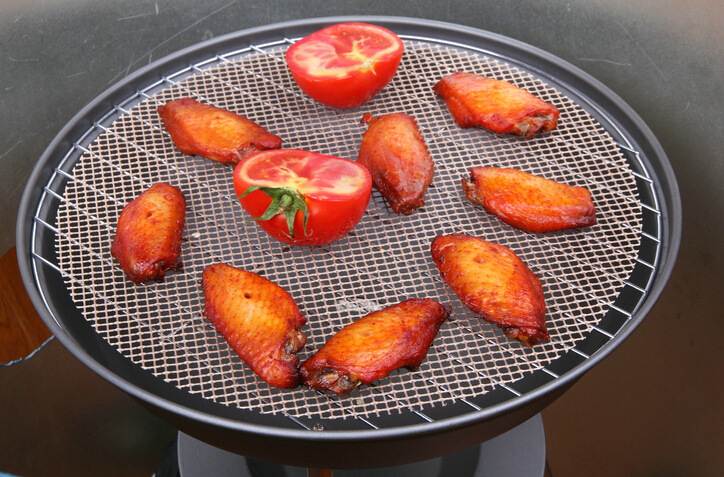

  • 05. Typical application of expanded metal mesh
