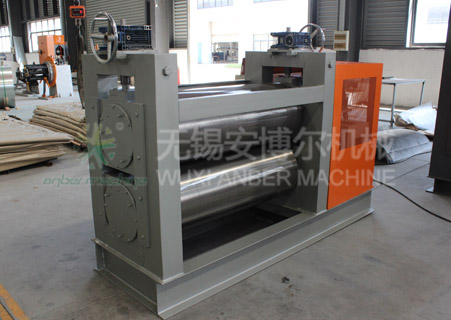

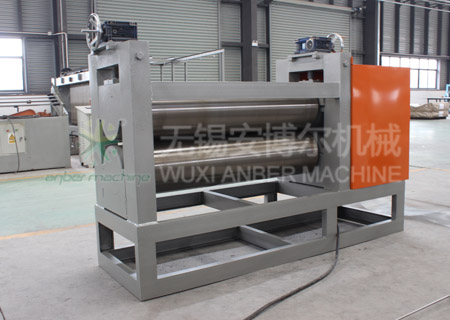

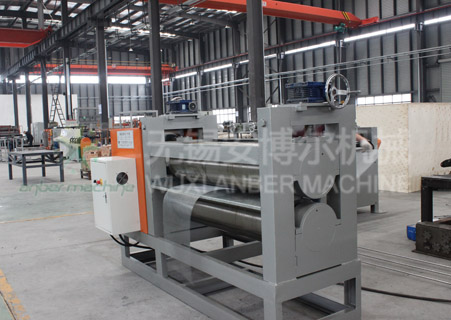

- Two-roller Flattening Machine
Flattening machine
Expanded mesh flattening machine
Expanded mesh flatten machine
Expanded metal mesh flattening machine
Two-roller flattening machine
- 01. Description of expanded mesh flattening machine
- The flattening machine is an auxiliary equipment for the expanded metal mesh machine. For the expanded mesh, the flattening machine not only flattens the lap joint of the steel mesh, but also makes the surface of the stencil smooth and beautiful, and at the same time, can eliminate the internal force generated during the weaving process, thereby improving the stencil steely.
- 02.Main technical parameters flattening machine
- Model: ABE-TYP600
Max. Expanded mesh width: 600mm
Roller quantity * diameter=2*300mm
Hardness of roller: HRC45-52
Flattening times: 2-3
Roller material: alloy steel
Adjusted method: worm and gear+hand wheel
Motor power: 5.5kw, speed adjustable system
Overall size of machine(L*W*H): about 1700*700*1500mm
Machine weight: about 1.9 Tons - 03. How to select expanded mesh flattening machine?
-Max. width of expanded mesh ...mm
-what is the type of raw material?
-What's thickness range of raw material...mm
-What's the expanded mesh opening size(LWD*SWD)...mm
-Once/ Two-Three times of flattening which you want?
-what is the type of raw material?
-What's thickness range of raw material...mm
-What's the expanded mesh opening size(LWD*SWD)...mm
-Once/ Two-Three times of flattening which you want?
