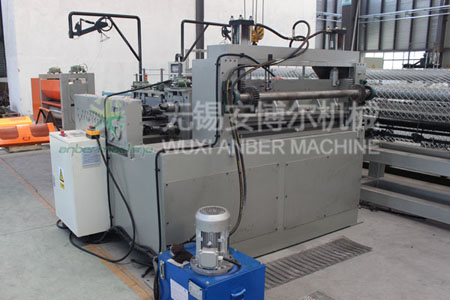

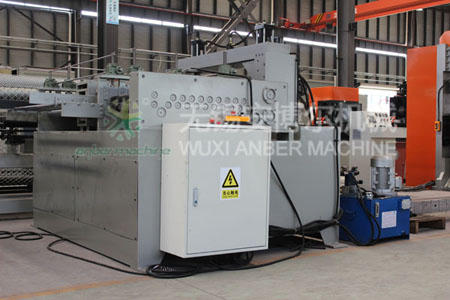

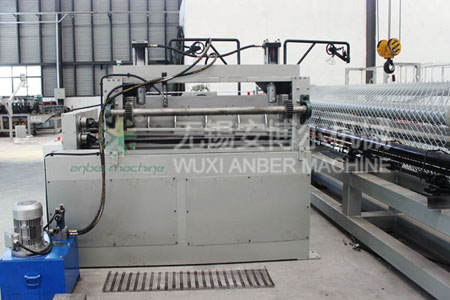

• Leveling Slitting And Cutting Machine


Slitting and cutting machine for expanded mesh

High precision expanded mesh leveling

Slitting and cutting machine

Automatic steel expanded mesh leveling

Slitting and cutting machine

  • 01. Description of leveling slitting and cutting machine
  • The expanded mesh leveling, slitting and cutting machine is an uneven metal veneer mesh, which is expanded by a strip or a plate of a certain thickness by means of upper and lower rolls to achieve a straightening effect, and then cut the expanded mesh into the required width and length, which can save manpower and occupy.
  • 02.Main technical parameters
  • Max. Working width of mesh: 1250mm
    Max. Thickness of material: 1.5mm
    Function: leveling mesh, make slitting and cut to required length
    Number of leveling roller: 15 pcs+2 pcs feeding roller, total 17 pcs of rollers
    Roller diameter: 60MM
    Main Motor power: 7.5KW;
    Motor power of hydraulic cutting: 2.2kw;
    Machine weight: about 3.0T
    Overall size(L*W*H): 2550*1860*1860mm
    Speed adjustment of main drive via frequency converter
    Adjustable cut length
    Accuracy: +/- 1mm/1000mm length
    Max. Slitting strips: 8
