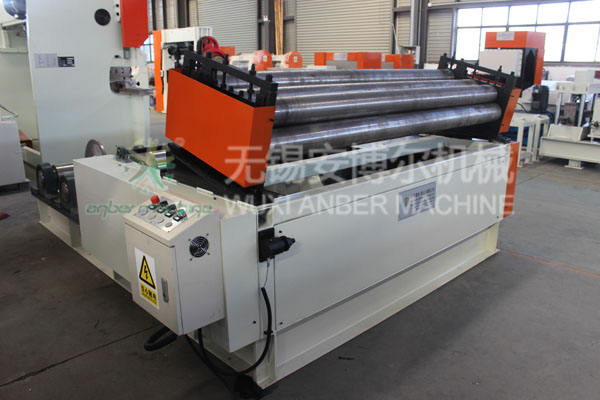

15 Tons roller-type decoiling and leveling machine

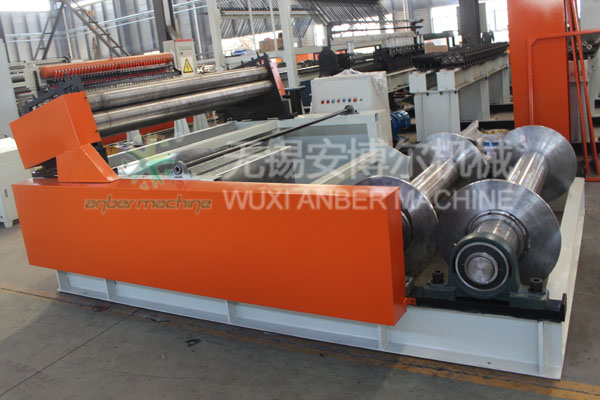

Roller type decoiling and leveling machine

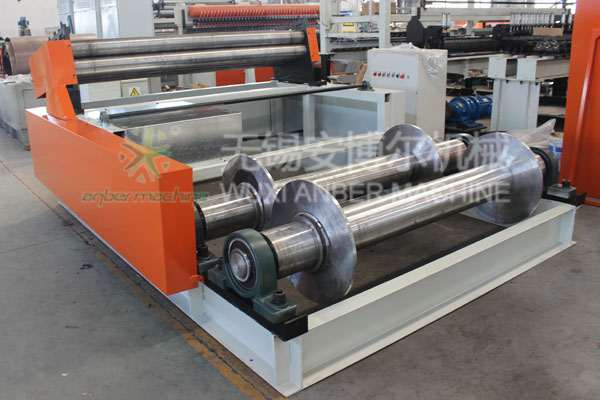

Decoiling and leveling machine for steel coil

Steel coil decoiler and leveler

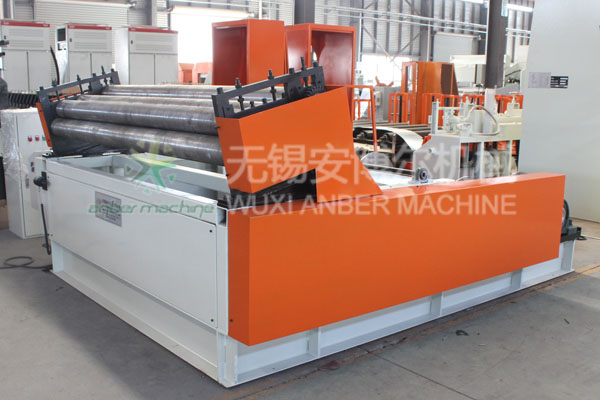

Roll type decoiler and leveler

01. Description of roller-type decoiling and leveling machine
The roller type decoiling and leveling machine is composed of a frame, conveying roller mechanism, leveling mechanism, motor reducer drive, sprocket chain transmission mechanism, shield and electric control system.
1) The uncoiling conveying roller mechanism adopts a two-roller structure, and the spacing of the two idler rollers is adjusted according to the diameter of the coiled material, the coiling is carried out by the two rollers, and the rotating roller is used to realize the unwinding and discharging of the winding material;
2) The leveling mechanism adopts a 5-roller plus 2-roller structure, that is, the leveling roller is fed by the upper 2 lower 3 plus the lower roller, and the spacing between the upper pressing roller and the lower roller is adjusted according to the thickness of the winding material, and the upper and lower pressing rollers are arranged. The sheet material, the rotating pressure roller drives the sheet material to continuously pass, thereby achieving the leveling of the sheet material;
