• Four-roller Flattening Machine

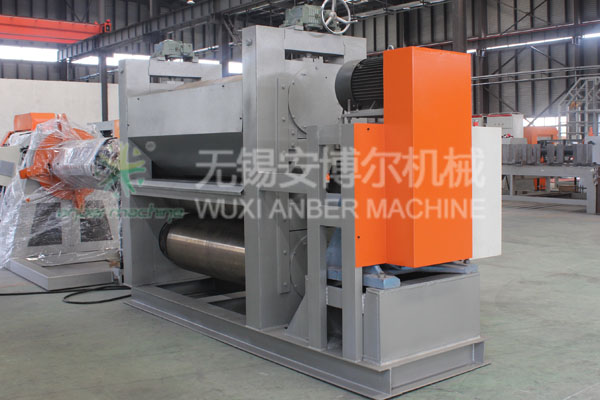

Four-roller flattening machine

Flatten machine

Flattening machine

Flatten machine

Four-roller flattening machine

  • 01. Description of expanded mesh flattening machine
  • The flattening machine is an auxiliary equipment for the expanded metal mesh machine. For the expanded mesh, the flattening machine not only flattens the lap joint of the steel mesh, but also makes the surface of the stencil smooth and beautiful, and at the same time, can eliminate the internal force generated during the weaving process, thereby improving the stencil Steely.
  • 02.How To Select Expanded Mesh Flattening Machine?
  • -Max. width of expanded mesh ...mm
    -what is the type of raw material?
    -What's thickness range of raw material...mm
    -What's the expanded mesh opening size(LWD*SWD)...mm
    -Once/ Two-Three times of flattening which you want?
    (Remarks: four-roller flattening machine normally can realize once time flattening, two-roller flattening machine needs two or three times.)
  • 03. Main Technical Parameters of flattening machine
    • Model: ABE-FYP1250
    Max. Thickness of raw material: 1.0mm
    Max. Expanded mesh width: 1250mm
    Two working roller length: 1400mm
    Two working roller diameter: Φ280mm
    Two working roller hardness: HRC58
    Two support roller length: 1200mm
    Two support roller diameter:Φ450mm
    Two support roller hardness: HRC53
    Flattening times: once time
    Roller material: alloy steel
    Adjusted method: worm and gear+hand wheel
    Motor power: 15kw, speed control by converter
    Overall size of machine(L*W*H): about 3220*1200*2100mm
    Machine weight: about 6.2 Tons
