• Mesh Welding Machine For 3D Panel

factoryshow

Mesh welding device

factoryshow

Fine and light wire mesh welding machine

factoryshow

Fine and light welded wire mesh machine

factoryshow

Fine and light reinforce mesh welding machine

factoryshow

Fine and light mesh welding machine

  • 01. Introduction of the wire mesh welding machine
  • ANBER wire mesh welding machine is automatic welding machine that is independently developed by us and based on advanced electromechanical control resistance welding technique of both domestic and abroad.
    The series of wire mesh welding machine developed by us has the following advantages:
    1. Main frame is welded by thick steel plate and bar steel to make the main structure more rigid and compact.
    2. Cross wire feeding system is made in novel structure, adopting stepper motor for auto blanking to make the placement of cross wire more accurate. This system is compact and reasonably arranged.
    3. Mesh pulling system is controlled by PLC or stepped motor single axis controller, which ensure the accuracy of cross wire spacing.
    4. This machine can produce the welded mesh of many sizes. The line wire spacing can be adjusted by adjust the related spare parts Spare parts, the cross wire spacing can be adjusted by microcomputers. So, it is convenient for users to weld meshes in different specifications.
    5. The new high efficiency mesh welding transformer has wide voltage adjusting scope in eight classes, which extends the diameters scope of welding wires.
    6. In order to adapt the capacity of users’ transformer and reduce current impact, welding power electronic control will be controlled separately in one welding, i.e. welding transformer shall be separated, when welding trams in the same row.
    7. Synchro-control technique will be adopted in welding power electronic control system. Welding time and separately controlled welding shall be controlled by digital integrated circuit in high controlling precision and stable performance.
  • 02.Main parameters
  • Model
    		 ABE-2/4-1250
    Driving Power
    		2.2kW
    Welding Power
    		50Hz / AC380V (Capacity of distribution transformer 100≥KVA)
    Diameter of Welding Wire
    		Three 50 m2 copper wires (Equipment is distant from electric transformer≤100 m)
    One 20 m2 aluminum wire (used as zero line)
    Welding Speed (Mesh/min)
    		Controlled silicon in-phase controlled resistance welding.
    Machine size
    		Adjusted by welding transformers in eight grades.
    Welding Manner
    		Controlled silicon in-phase controlled resistance welding.
    Welding Voltage
    		Adjusted by welding transformers in eight grades.
    Welding Time
    		10ms~100ms
    Pressurizing Method
    		By changing the length of rod of pressurizing beam and spring compression volume of upper electrode
    Tram Feeding Method
    		Stepper motor auto blanking for feeding tram
    Applicable Wire Diameter
    		 2mm-4mm
    Welding Speed
    		0~40 times / minute stepless speed regulation
    Quality of Welding Wires
    		Coiled bar dragged annealing material shall meet the related requirements of carbon structural steel Q195F Carbon Equivalence of China GBT701-1997, and the tensile strength shall be above or equal to 392N/mm².
    Surface shall be smooth and rustless, without lime removing agent, fume dirt, water stain, zinc stain (cold or hot galvanization) or altered drawing wire.
  • 03. The finished products
  • Welded Mesh
    Welded Mesh
    Welded Mesh

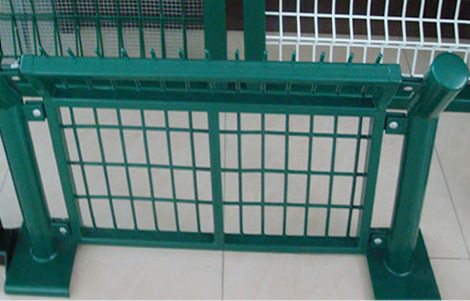

    Welded Fence

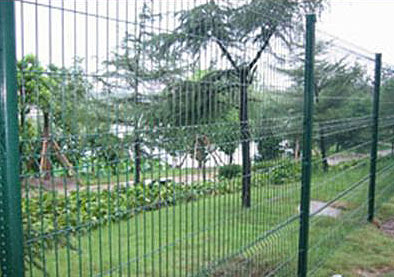

    Welded mesh Fence

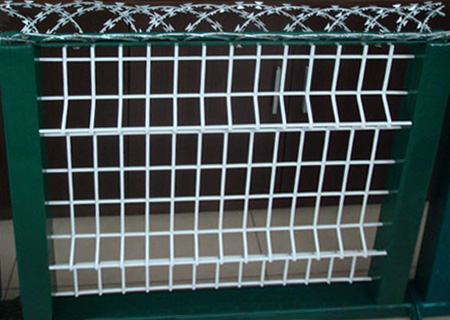

    Bended Welded fence
