  • 01. Introduction of hydraulic wire straightening and cutting machine
  • Applications: smooth round steel plate, cold rolled ribbed steel bars, hot rolled ribbed steel bars, the straightening and cut-off.
    Good straightening effect: Straightening ratio ≤ 3mm / m, the surface almost no scratches, no distortion.
    Intelligent control: PLC programmable control, cut-length accuracy and can be adjusted, automatic counting, the number of downtime.
    Can used to straight the new Ⅲ grade steel, the advanced way to ensure the straightening does not damage the cross-rib reinforced, without causing longitudinal ribs to reverse, the surface wear.
    Cutting method: hydraulic cutting, low noise, less wearing parts.
    Mechanical wire straightening and cutting machine is mainly used to straight and cut the wire to feed in the fencing mesh welding machine, basement mesh welding machine.
  • 02. Main parameter
  • Model
    ABE-HT3/6
    ABE-HT4/8
    ABE-HT6/14
    Wire Dia.
    Φ3-Φ6mm
    Φ4-Φ8mm
    Φ6-Φ14mm
    Total power
    11+3kw
    15+4 Kw
    18.5+5.5kw
    Cutting length
    1-12 m, or according to customer’s requirement
    Straightening ratio
    ≤2 mm/m
    Max. speed
    30m/min
    Cutting tolerance
    ±3 mm
    Roller diameter
    Φ140mm
    Overall size
    Main part
    2700×800×1250mm
    Hydraulic station
    1050×900×1120mm
    Collection table
    12000×600×1050mm
    Collecting table
    Length: 3-12m, can set according to customer’s requirement

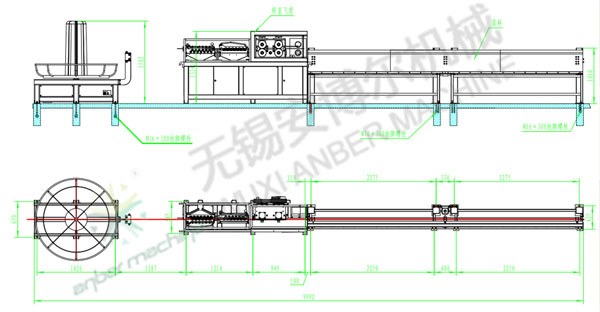

  • 03.Layout of wire straightening and cutting machine
