• Pneumatic Wire Straightening And Cutting Machine

factoryshow

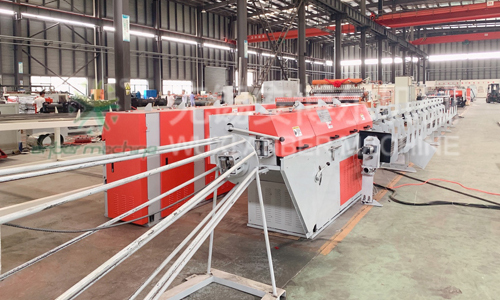

Wire straightening and cutting machine

factoryshow

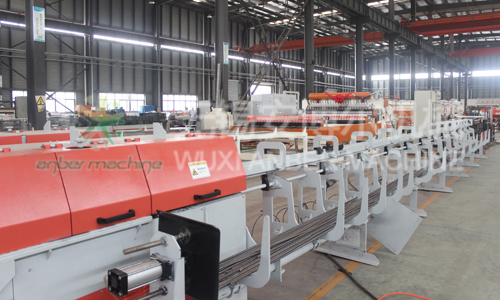

Wire straightening cutting machine

factoryshow

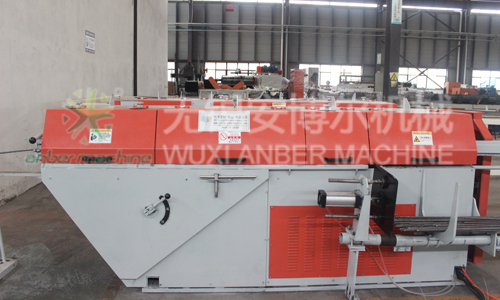

Steel wire straightening and cutting machine

factoryshow

Wire straightening cutting machine

factoryshow

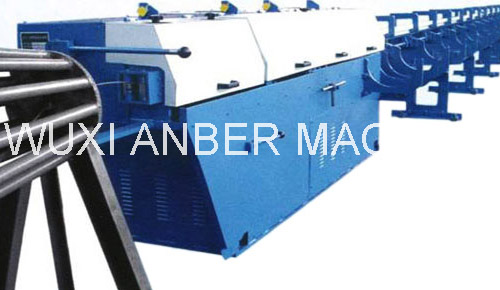

Automatic wire straightening and cutting machine

  • 01. Introduction of pneumatic wire straightening and cutting machine
  • Pneumatic wire straightening and cutting machine is mainly used to straight and cut the wire to feed in the reinforcing mesh welding machine, its standard construction contains: pay-off, feeding system, straightening spinner system, pneumatic clutch cutting system, normal stocking rack, controller with PLC and Spare parts.
  • 02. Main parameter
  • Model
    ABE-GT5/10
    ABE-GT6/12
    ABE-GT10/14
    ABE-GT8/14
    Wire dia.
    Rebar or round bar
    Φ5-Φ10 mm
    Φ6-Φ12 mm
    Φ10-Φ14 mm
    Φ8-Φ14 mm
    HRB335
    Φ5-Φ8 mm
    Φ6-Φ10 mm
    Φ10-Φ12 mm
    Φ8-Φ14 mm
    HRB400
    Φ5-Φ8 mm
    Φ6-Φ10 mm
    Φ10-Φ12 mm
    Φ8-Φ14 mm
    Cutting length
    1-12 m or according to customer's requirement
    Speed (3-grade adjusted)
    70-100-130m/min
    Straightening ratio
    ≤ 2 mm/m
    Cutting tolerance
    Signal type, ≤ ±1 mm
    Total power
    18.5+4 Kw
    22+4 Kw
    30+4 Kw
    37+4 Kw
