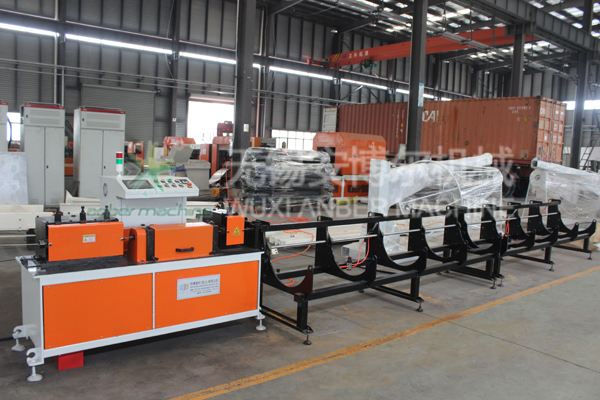

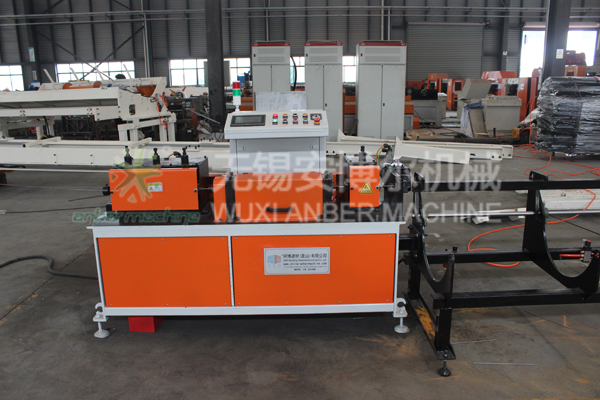

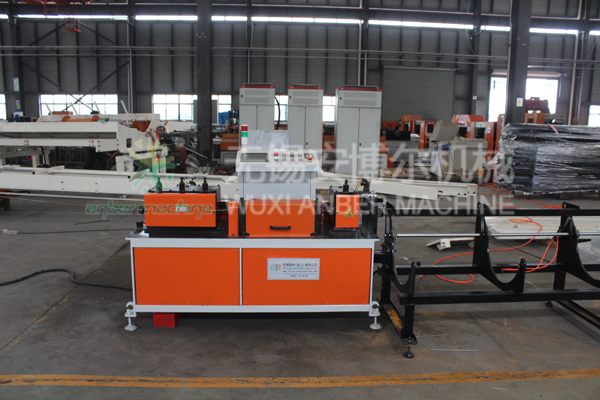

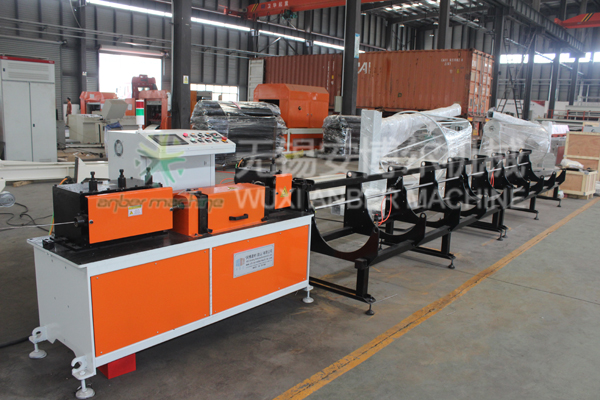

Wire Straightening And Cutting Machine

wire straightening and cutting machine

wire straightening and cutting machine

wire straightening and cutting machine

wire straightening and cutting machine

wire straightening and cutting machine

wire straightening and cutting machine

wire straightening and cutting machine

wire straightening and cutting machine

01.Main parameter
Steel wire:5-14mm cold-rolled round bar/ribbed bar CRB550/600H
5-12mm hot-rolled round bar HPB235/300
5-12mm hot-rolled ribbed bar HRB335/400/500
Speed :0-70m/min
Length of cut:10-8000mm，adjustable
Straightenness of cut-length:≤ 3mm/m
Accuracy of cut-length:≤ ±10mm
Total power:9Kw+2Kw
Total weight:0.98tons
Overall size:2.3*0.75*1.1m
Configuration:Rotate straightening, hydraulic cutting include the hydraulic station
