• Fence Post Roll Forming Machine

factoryshow

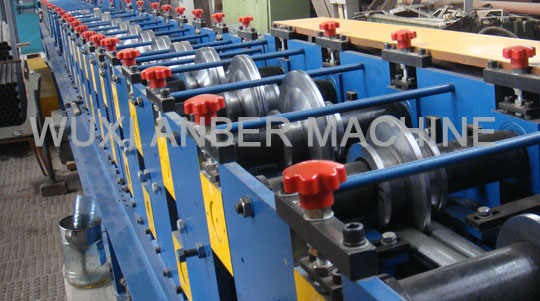

Fence post forming

factoryshow

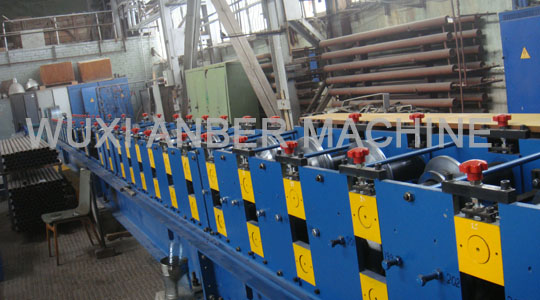

Fence post forming machine

factoryshow

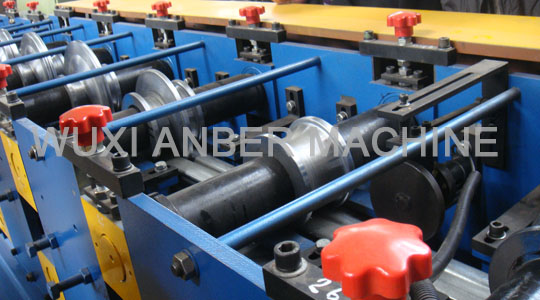

Fence post cutting

  • 01. Process flow of peach post forming machine
  • Un-coiler---Feeder guide---Roll forming---Punching---Saw cutting---Run out table.
  • 02.Technical parameters
  • Steel thickness: 0.8-1.2mm
    Working speed: 3-5m/min;
    Roll stands: 22
    Roll material: Gcr15 steel, high-frequency hardening HRC58-62, roll diameter: 120mm;
    Main shaft material: 45# steel, quenching and tempering treatment, shaft diameter 60mm; Chain: material 45# steel, high-frequnecy hardening, pitch: 31.8; number of teeth: 10; Main motor power: 7.5KW;
    Cutting: use saw cutting, hydraulic punching. Blade material: Cr12Mov; Quenching HRC58-62;
    Motor of hydraulic punching and cutting device: 3KW;
    Electric control system: PLC system, brand: Panasonic; Touch screen brand: Panasonic; Rotary enclder brand: Omron; Converter brand: Panasonic;
    Machine size: 12000mm×900mm×1100mm;
    Total machine weight: about 11 tons
  • 03.The finished products
  • Fence post
    Fence post
    Fence post
    Fence post
    Fence post
    Fence post
