• 3D Wire Mesh Block Panel Welding Machine

factoryshow

Mesh out part of the 3D panel welding line

factoryshow

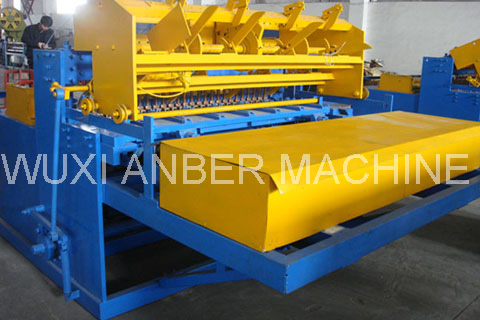

Welding system of the EPS & 3D welding production line

factoryshow

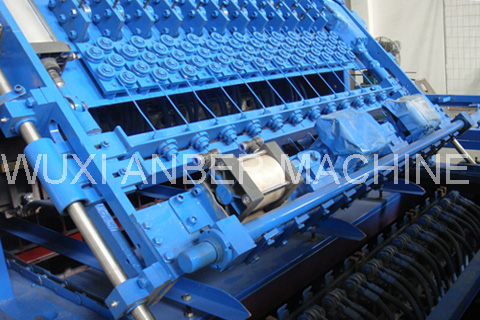

3D panel mesh welding machine

factoryshow

3D panel welding machine

factoryshow

Side view of the EPS 3D panle welding production line

  • 01. Introduction of 3D panel machine
  • 3D Wire Mesh Panel Machine is the main machine of the production line, which adopts PLC control system, air cylinder or step motor as drive. The machine can insert, cut, and control the position of the wire mesh and the EPS boards automatically to complete the production of the 3D panel.
    This production line is of high automatic manufacturing level, productive efficiency, low lack welding rate, strong welding pressure and even welding strength. The finished products (3D panels) are in good quality and cost low.
    We can meet customers' special requirements.
  • 02.Main parameter of 3D panel machine
  • Rated electrical power

    75KVA

    Input voltage

    AV380V  50HZ

    Air source allocation

    3 Cubic meter/MIN   0.6MPa

    Applicable range

    Core panel thickness

    30mm-100mm

    Truss wire configuration

    Single or double sided mesh ,different densities of truss wires

    production standard

    Standard
    Sandwich  panel

    Llength

    3000mm

    Width

    1220mm

    Nonstandard sandwich panel

    The length according to your requirement
    ≤4500mm

    material characteristic

    Welded wire material

    1.5mm-2.5mm cold-drawing low-carbon steel wire

    Core panel material

    EPS board & XPS board

    Gridding space of mesh

       50mm*52mm

    product efficiency

    seeing the attached table

    Lack welding rate

    ≤5%

    Welding strength

    (single point)≥330N

    Overall dimension

    Length

    13500mm

    Width

    1800mm

    Height

    1700mm

    Weight

    4000kg

  • 03.The finished products
  • Reinforcement welded mesh
    Reinforcement welded mesh
    3D welded panel
    application of 3D welded panel
