01. Introduction of mesh recoiling machine

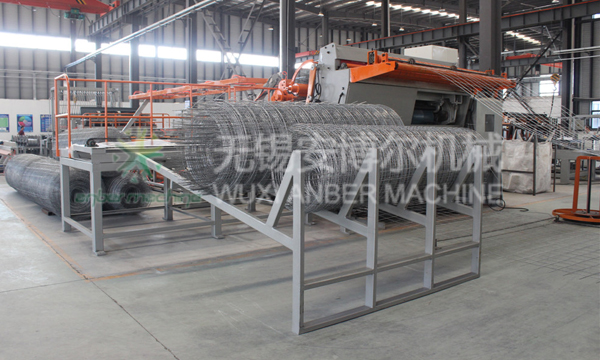

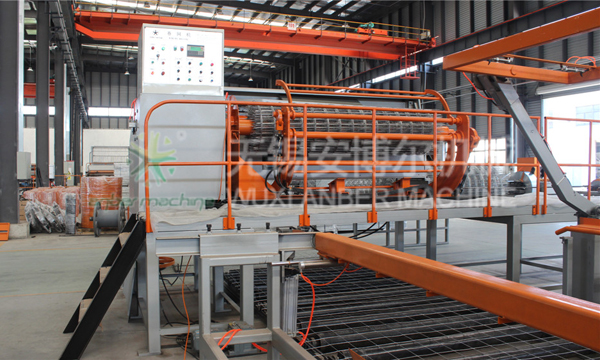

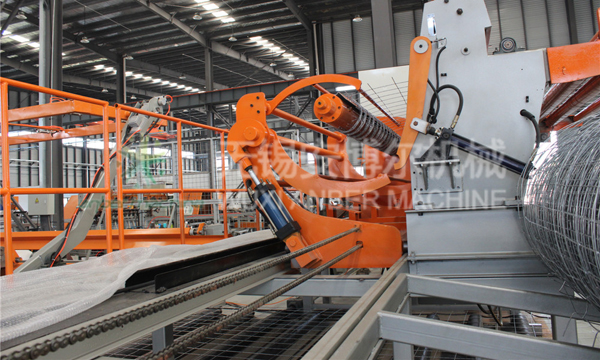

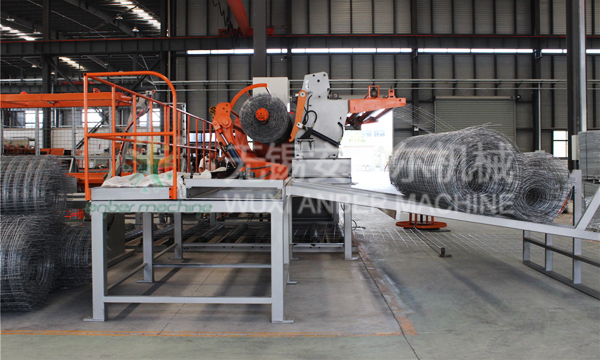

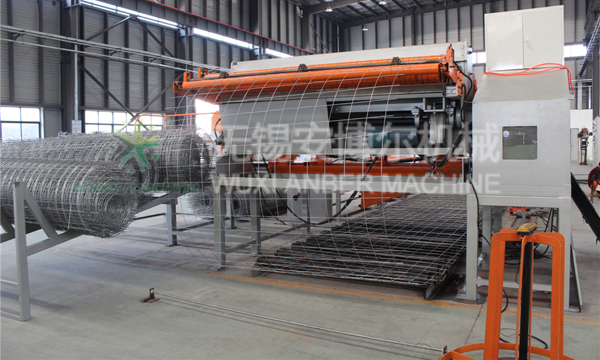

Mesh recoiling machine is used to recoil, cut, binding mesh and roll out the mesh coil to transport. It is composed of frame, recoiler, cutting device, pulling system, roll out system, hydraulic system. Recoiler as figure 5.10.

02. Main parameter
wire diameter: 3-6mm
coil size: D ×d ×B =Φ175×Φ800×2400mm
Motor:
Recoil: 3kw, 1420rpm
Press: 0.12kw, 1300rpm
Mesh pull: 1.5kw/ 1430rpm
Mesh cutting: 11kw/ 1460rpm
Roll mesh turning: 2.2kw/ 1420rpm
Machine size: 7541×4740×2525mm
Machine weight: 5280kg
