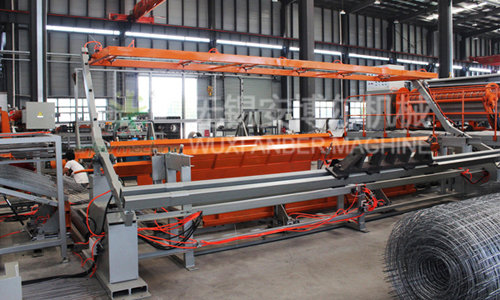

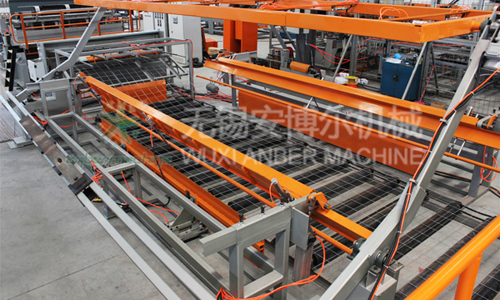

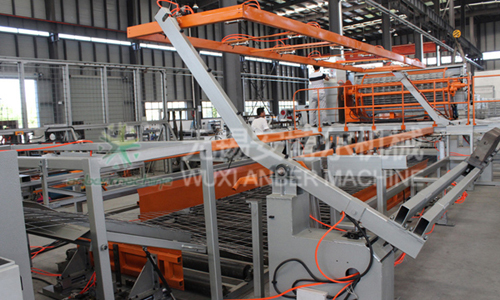

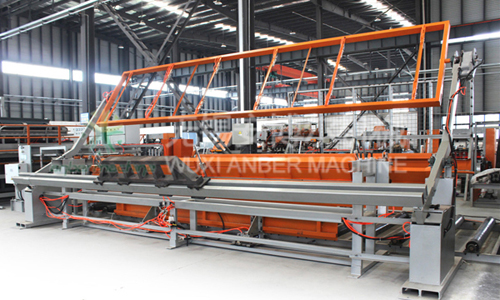

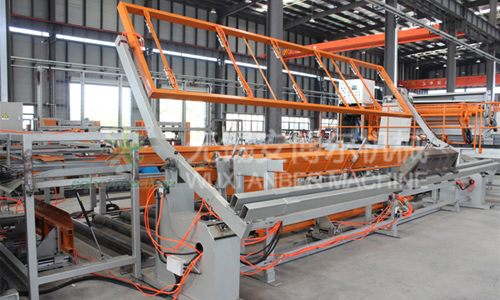

01. Introduction of mesh turning machine
The main function of mesh turning machine is to stack (N mesh) and turn (N+1 mesh) the setting length mesh and add them together. Mesh width is suitable for 2400mm and length for 6000mm. It is composed of body frame, turn mesh support, drive motor reducer, turn shaft and support, push and support mesh(delivery cylinder) device, pneumatic device, etc.

02. Main parameter
Motor: 0.2kw/1300rpm (Turn),
Machine overall size: L×W×H= 6720×4126×1620 mm；
Machine weight:3000kg
