Pre-cut reinforcing mesh welding line

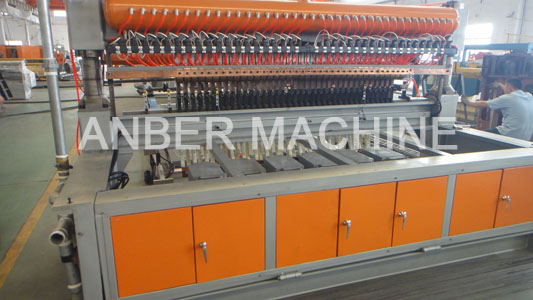

Mesh welding line

Mesh welding line

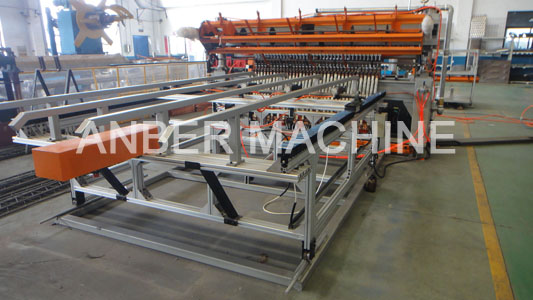

Welded mesh production line

Welded mesh production line

Automatic Fence Mesh Welding Machine

Automatic Fence Mesh Welding Machine

Mesh fence welding machine

Mesh fence welding machine

Wire mesh fencing machine

Wire mesh fencing machine

Description
  Reinforcing mesh welding machine is the specialized equipment for wire mesh building steel, fence and any other mesh. This machine welds the line wires and cross wires of the steel to be solid mesh in the principle of multi-electrode resistance welding. It consists of welded equipment, cross wires feeding device, mechanical mesh stepping system , pneumatic system, electrical control system and cooling system. The material can be rolled ribbed steel wire, cold or hot rolled round steel wire.
Main parameters
Model
ABE-3/6-2500P ABE-5/12-2500P ABE-5/12-33000P
Diameter
Ф3-Ф6mm
Ф5-Ф12mm
Ф5-Ф12mm
Max mesh width
2500mm
2500mm
3300mm
Welded no.
24
24
32
Capacity of transformer
600KVA
800KVA
1000KVA
Line wire space
50-200mm
100-300mm
100-300mm
Cross wire space
50-200mm
100-300mm
100-300mm
Max. welding frequency
25-45 次/分
15-30次/分
15-30次/分
Utilization factor of transformer
30%
30%
30%
Work pressure of pneumatic system
≤0.8Mpa
≤0.8Mpa
≤0.8Mpa
Pressure of cooling water
0.2Mpa-0.3Mpa
0.2Mpa-0.3Mpa
0.2Mpa-0.3Mpa
Consumption of compressed air
≥3M3/min
≥3M3/min
≥3M3/min
Load mode of line wire
Pre-cut; straightness ≤3mm/1000mm
Pre-cut; straightness ≤3mm/1000mm
Pre-cut; straightness ≤3mm/1000mm
Load mode of cross wire
Pre-cut; straightness ≤3mm/1000mm
Pre-cut; straightness ≤3mm/1000mm
Pre-cut; straightness ≤3mm/1000mm
