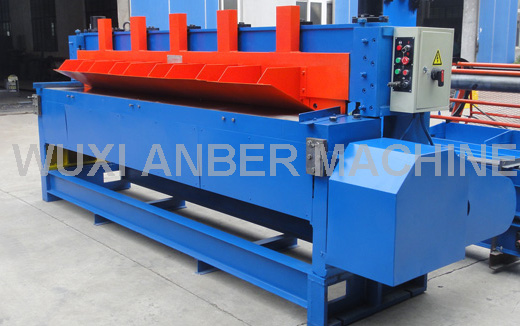

  • 01. Introduction of mesh shearing machine
  • This mesh cutting machine is desinged especially for the welded mesh to cut the mesh to welded mesh panel.
  • 02.Main parameter
  • Model
    		 QH11D-3.5×1250/
    QH11D-3.5×1300    		 QH11D-3.2×2000 QH11D-2.5×2500 QH11D-3.2×2500
    Mesh thickness
    		3.5mm 3.2mm 2.5mm 3.2mm
    Plate width
    		1250/1300mm 2000mm 2500mm 2500mm
    Shearing angle
    		1°30' 1°30' 1° 1°20'
    Top rest distance times
    		47n/min 47n/min 47n/min 47n/min
    Single travel times
    		10n/min 10n/min 10n/min 10n/min
    Front-gauge distance
    		900mm 900mm 900mm 900mm
    Back-gauge distance
    		650mm 650mm 650mm 650mm
    The distance of the working table above the floor
    		800mm 800mm 800mm 800mm
    Motor

    Model
    		 YEJ132S-4 YEJ132S-4 YEJ132S-4 YEJ132S-4
    Power
    		 5.5KW 7.5KW 7.5KW 7.5KW
    Revolution
    		 1430r/min 1430r/min 1430r/min 1430r/min
    Machine size
    Length
    		 1860mm 2624mm 3124mm 3124mm
    Width
    		 2100mm 2100mm 2100mm 2100mm
    Height
    		 1180mm 1180mm 1180mm 1180mm
    Machine weight 1440Kg 1800Kg 2000Kg

    2100Kg
