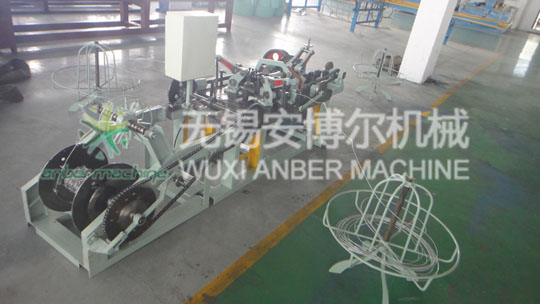

Single barbed wire machine

Single barbed wire machine

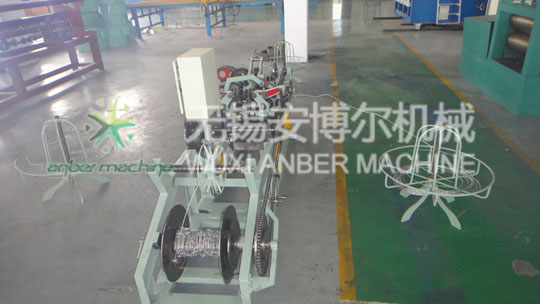

CS-B single barbed wire machine

CS-B single barbed wire machine

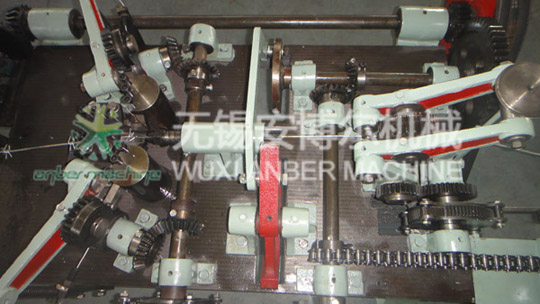

Single stranded barbed wire machine

Single stranded barbed wire machine

  • 01. Introduction of single barbed wire machine
  • The barbed wire machine is used to produce the single barbed wire. The raw material shall be in conformance with GB/T343-94, the standard of thermally galvanized low-carbon steel wire for general use. The main wire can be middle carbon wire, but the barbed wire only can be low carbon wire. Its products are widely used in fence, railway, highway and agriculture & stockbreeding fields.
    The Model CS-B single wire machine basically consists of two main systems, which are prickle knitting system and wire collecting system and three steel wire feeding wheels are facilitated at the same time. It can be operated flexibly and performs consistently and reliably, and can be calculate the QTY by electric counter, it is the unique prickly steel wire manufacturing equipment in China.
  • 02.Main technical parameter
  • 1). CS-B type barbed wire machine
    SN
    Item
    Unit
    Parameter
    1
    Motor
    Model
    Y100L2-4, 2.2kw
    2
    Speed of transmission shaft
    r/min
    357
    3
    Main wire feeding speed
    time/min
    119
    4
    Main machine size
    mm
    1900×1300×980
    5
    Recoiling part size
    mm
    1800×750×750
    Remark: special requirement can be according to both parts' agreement.
    2). Barbed wire specification
    SN
    Item
    Unit
    Parameter
    1
    Barbed space
    mm
    50, 80, 100
    2
    Main wire diameter
    mm
    2.2-3.5
    3
    Barbed wire diameter
    mm
    1.8-2.2

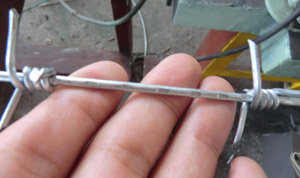

  • 03. Finished products
