Reverse Barbed Wire Machine


Introduction of Reverse Barbed Wire Machine:
GB/T343 requires the common hot dipped galvanized low carbon steel wire. The products can be used in the national defence, railroad, highway, stockbreeding and agriculture and so on. CS-series barbed wire machine is make up by spool wire and twist wire two parts.

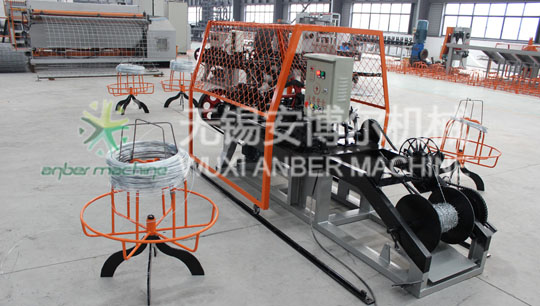

High quality CS-C reverse twist barbed wire machine

High quality CS-C reverse twist barbed wire machine

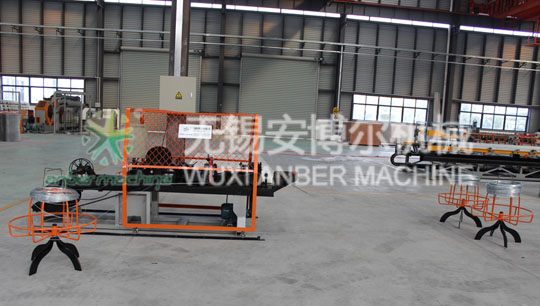

Reverse twist barbed wire machine

Reverse twist barbed wire machine

Thorn wire machin

Thorn wire machin

Barbed iron wire machine

Barbed iron wire machine

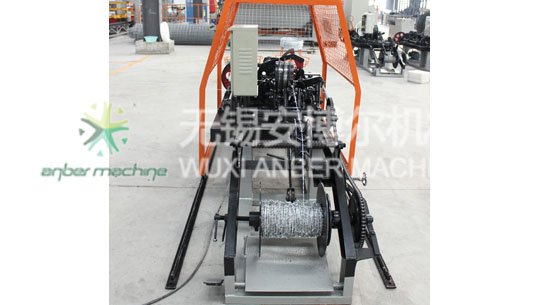

CS-C single barbed wire machine

CS-C single barbed wire machine

Main technical parameter

1). CS-C type barbed wire machine

SN
Item
Parameter
1
Motor
2.2 KW
2
Main shaft rotating speed
357 turn/min
3
Output
50 Kg/h
4
Twisting number
4, 6
5
Barb distance
70mm, 102 mm
6
Main wire diameter
1.6-2.6mm
7
Barbed wire diameter
1.6-2.3 mm
8
Main machine size
1900mm×1300mm×980mm
9
Recoiler size
1300mm×800mm×700mm
10
Machine weight
1200Kg

Remark: special requirement can be according to both parts' agreement.
2). Barbed wire specification

SN
Item
Unit
Parameter
1
Barbed space
mm
50, 80, 100
2
Main wire diameter
mm
2.2-3.5
3
Barbed wire diameter
mm
1.8-2.2

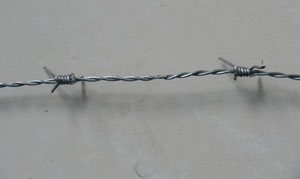

Finished products
