13 Strips razor barbed wire machine

Introduction of razor barbed wire making machine:

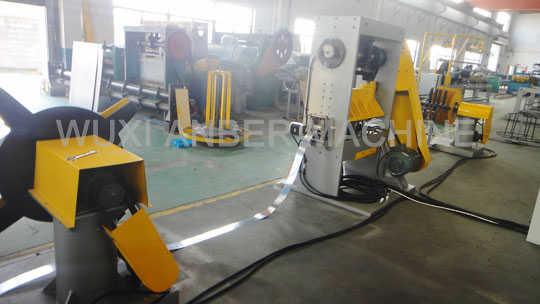

Prison fence machine

Prison fence machine

Barbed rope machine

Barbed rope machine

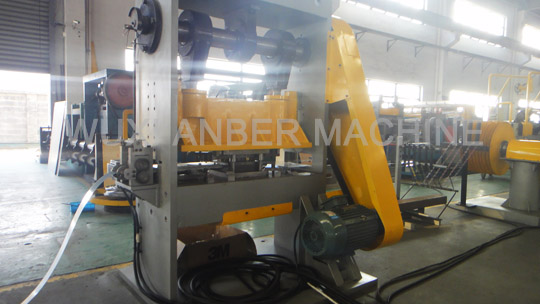

Barbed wire tape machine

Barbed wire tape machine

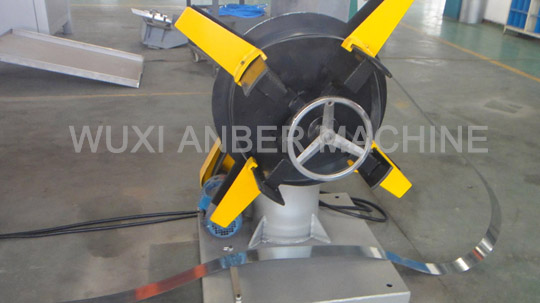

Razor barbed wire making machine

Razor barbed wire making machine

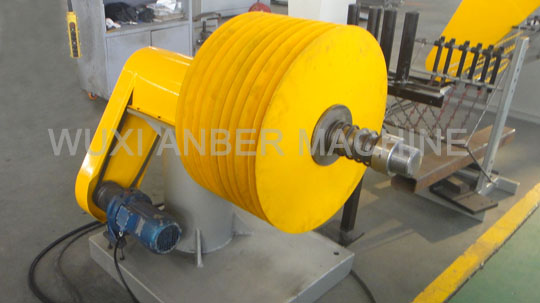

Barbed wire machine

Barbed wire machine

Barbed wire punching machine

Barbed-wire-punching-machine

Main performances and characteristics:
Razor barbed wire is common safe operation material, it has advantages that strong sharp, easy to construct, low cost and so on. Razor barbed wire machine is a special equipment to manufacture razor barbed wire, it has advantages that operate simply, safety, efficient production, adapt to many sorts and so on.
Application:
Finished products of razor barbed wire machine (production line) are used for all kinds of special places and temporary barriers of protective materials.
Composition and function of the equipment:
Blade punching machine is used for producing composite blade thorn rope when needed for the thorn. Blade punching machine including pay-off, punching machine, blade separation machine and re-coiler. Punching and shearing equipment is composed of press machine, servo feeding and mold.
Pay-off is used for storing and offering punching and shearing material; Servo feeding device offer galvanized plate to punch as certain rhythm and the specific length; Press machine and mold are used for shearing galvanized plate to blade; Re-coiler is divided into upper and lower rolling. Re-coiler is used for dividing shearing blade into a few stripes, rolls around.
Main parameters of machine:
1). Pay-off:
Item
Name
Parameter
1
Inner diameter
500mm,Adjustable
2
Outer diameter
1000mm
3
Loading weight
500Kg
4
Motor
Power:25W, Voltage: 380V, Rotation speed: 1400r/min
5
Machine size
700×700×1230mm
6
Weight
500Kg

2). Punching machine:
Item
Name
Parameter
1
Normal force
600KN
2
Slide block stroke
14mm
3
Sliding block strokes
250times/min
4
Max Die Set Height
200 mm
5
Die Height Adjustment
170-200 mm
6
Size of working table
634mmX470mm
7
Motor
Power:7.5KW, Voltage:380V, Voltage:380V
8
Size of equipment
1150*1100*1860mm
9
Weight
1926Kg

3). Mold:
Item
Name
Parameter
1
Mold 1
BTO30, 9 stripes
2
Mold 2
BTO28, 13 stripes

4). Re-coiler:
Item
Name
Parameter
1
Inner diameter
100mm
2
Outer diameter
550mm
3
Loading weight
500Kg
4
Motor
Power:0.75W, Voltage: 380V, Rotation speed: 1400r/min
5
Machine size
1510*1200*1820mm
6
Weight
458Kg

5). Equipment accessory :
Item
Name
Material
QTY
Remark
1
Spanner
45
1
2
Stacker box
Q235
1
Used for press machine
3
Re-coiler plate
Q235
5
Used for re-coiler
4
Car leveler
Q235
1
5
Foundation bolt
Q235-A
4
Contain nut and gasket
6
Expansion bolt
45
32
Contain nut and gasket
Layout of 13 strips razor barbed wire machine:
