Barbed Wire Forming Machine


Introduction of razor barbed wire forming machine:
Razor blade is applied as security, it is firm and sharp easy for installation also. The razor blade use 0.3-0.6mm GI and 1.5-3.5mm wire to form to razor blade.

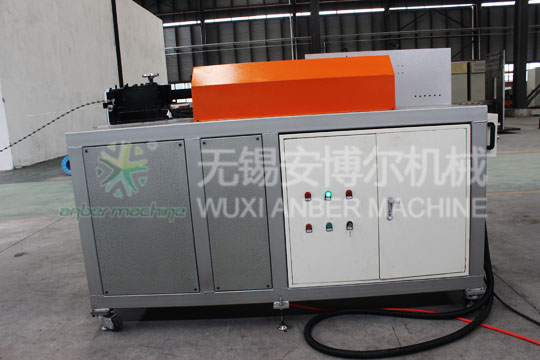

Barbed wire machine

Barbed wire machine

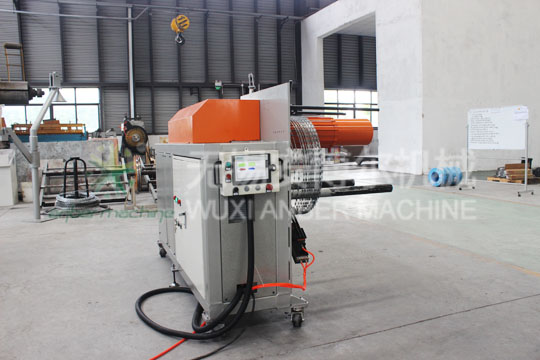

Razor barbed wire making machine

Razor barbed wire making machine

Razor barbed wire machine

Razor barbed wire machine

Razor wire machine

Razor wire machine

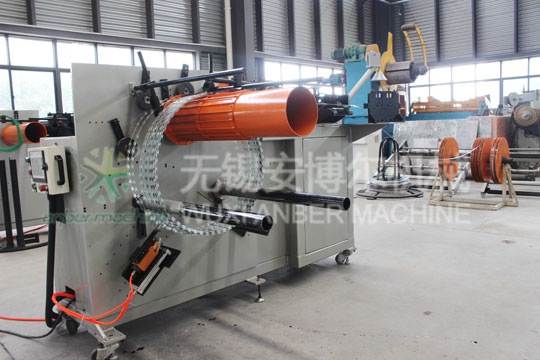

Automatic razor barbed wire machine

Automatic razor barbed wire machine


Wire pay-off:
ID
450mm
OD
820~980mm
Loading weight
500Kg
Machine size
2205×2352.5×1120mm
Weight
117.42Kg

Blade decoiler:
ID
100mm
OD
550mm
Loading weight
100Kg
Machine size
605×300×631mm
Weight
65.28Kg

Forming and recoiler:
Blade thickness
0.3~0.6mm
Wire diameter
φ1.5~φ3.5mm
Speed
15~20m /Min, adjustable
Servo motor
Power:2KW, rotate speed: 2000r/min, speed ratio: i12
ID
450mm, adjustable
OD
450~950mm
Loading weight
500Kg
Cut method
Auto cut
Servo motor
Power:0.75KW, rotate speed:3000r/min, speed ratio: i20
Machine size
2180×1390×1375mm
Weight
662.1Kg
