Spiral coiling machine
Spiral machine

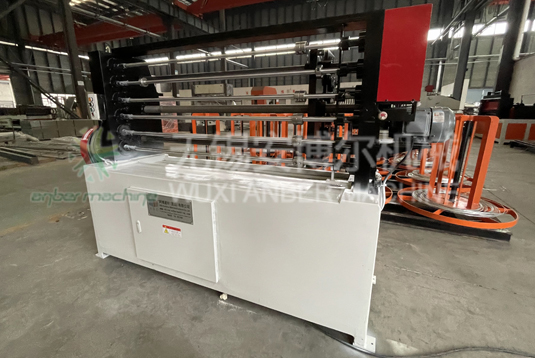

Spiral wire coiling machine
- 01. Description
- Coiling Machine serves to make wires into form of coils to be used as weft wires, on the Wire Netting Machine for purpose of producing hexagonal screens.
One of two wires for making mesh in wire netting making machine must be loaded into spring tube in spring shape in order to make wire netting in normally.
Therefore, the spring coiling machine can have wire coiled to spring shape, and the spring can be collect in more than one layers according with size of spring tube to satisfy wire netting making require to wire.
Diameter of spring wire: Φ1.2~Φ.4.4mm
Diameter of spring bar: Φ25mm,
Quantity of spring bars: 6
Rotational speed of spring bar: 450 r/min
Interior diameter of spring: Φ30mm
Major diameter of spring: Φ40~Φ60
Quantity of spring layers: 2-4
Motor power: 2.2KW,
Overall size (length * width * height):2200 X 900 X 1650(mm)
