• Reverse Twist Hexagonal Wire Netting Machine

  • 01. Introduction of reverse twist hexagonal wire netting machine
  • Hexagonal wire netting weaving machines adopt straight-reverse twisted principle, do not need to make the iron wire into spring type, so work efficiency is increased so that can work continuously. The models such as: 1/2", 5/8", 3/4", 1", 11/4", 11/2", 2", 3", 80x100 mm or at the customer's requirement.
    It also has characteristics as follows:
    1. Max. speed can be 65 mesh per minute, speed can be adjusted with different raw materials.
    2. Smooth operation, low noise. It will give an alarm at broken wire, broken mesh or at preset length.
    3. Big width. It can weave double 1.25 m or single 2.5 m width.
    4. Even and flat openings, wire can be added at any spot when weaving.
    5. It has clutch brake device, can move by spot, flexible operation and has no high demand for operating personnel.
    6. Reliable lubrication and convenient use.
    7. Durable and strong, convenient maintenance.
    We also provide fittings for weaving machines and thread spool machine.We may also design machines according to customers' particular requirements. Timely delivery & guaranteed quality.
  • 02. Sample of reverse twist hexagonal wire netting

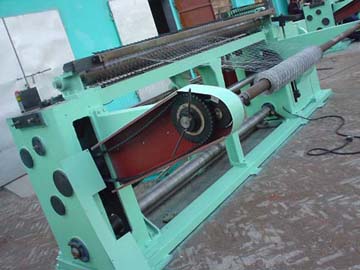

  • Reverse twist hexagonal wire netting machine
    Max. wooden width: 2440mm (single) or 1200mm (double)
    Theoretic producing speed: 38mesh/minute
    Machine size: 4500*2200*1450mm
    Gross weight: 4.6T

    Model: ABHX-3/4"
    Mesh opening: 19mm
    Wirediameter: 1.2mm

    Model: ABHX-5/8"
    Mesh opening: 16mm
    Wirediameter: 1.2mm

    Model: ABHX-1/2"
    Mesh opening: 13mm
    Wirediameter: 1.2mm

    Model: ABHX-1"
    Mesh opening: 27mm
    Wirediameter: 1.2mm

    Model: ABHX-1 1/4"
    Mesh opening: 32mm
    Wirediameter: 1.2mm

    Model: ABHX-1 1/2"
    Mesh opening: 44mm
    Wirediameter: 1.4mm

    Model: ABHX-2"
    Mesh opening: 56mm
    Wirediameter: 1.4mm

    Model: ABHX-3"
    Mesh opening: 76mm
    Wirediameter: 1.8mm

  • 03. The finished products (hexagonal wire netting)
  • PVC reverse twist hexagonal
wire netting
    Galvanized reverse twist hexagonal wire netting
    PVC reverse twist hexagonal
    wire netting
    Galvanized reverse twist hexagonal wire netting
