• Hydraulic Gabion Mesh Production Line

  • Hydraulic gabion mesh machine
  • 01. Introduction of gabion mesh production line

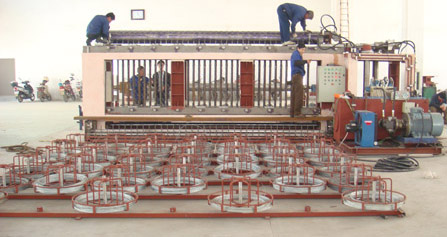

  • Hydraulic gabion mesh machines (hexagonal wire netting machine) have been designed to make gabion mesh (hexagonal mesh) of various widths and mesh sizes. For high corrosion resistance, zinc and PVC, galfan coated wire is available.
    The Gabion Mesh Machine can provide gabion mesh products for various kinds of construction items. The gabion products are commonly used to drain water course to protect and support roads, railroads, airports and residential areas, for coastal protection, build retaining walls, river bank protections, weirs, gabion boxes mattresses, etc.
    Characteristics of hydraulic gabion mesh machine:
    1. Lower noise compare with the mechanical gabion mesh machine
    2. Speed is 20% faster compare with the mechanical gabion mesh machine
    3. Easy to operate
  • 02. Main parameter
  • Max. netting width
    4m
    Mesh size
    100*120mm, 80*100mm, or according to your order
    Max. galvanized wire dia.
    3.2mm
    Max. PVC wire dia.
    4mm
    Power
    22kw
    Max. Output
    234 M to 264 M / Hour
    Weight (approx)
    16 Ton
    Automatic Stop System
    Included
    Overall size
    7200*1400*2400mm
