• Automatic Gabion Mesh Machine

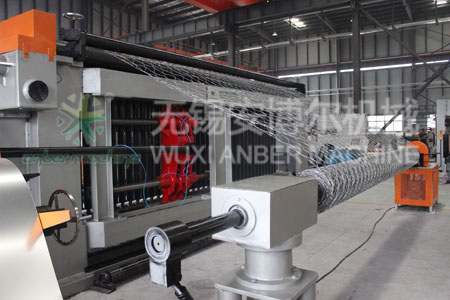

Gabion mesh machine

Gabion mesh machine

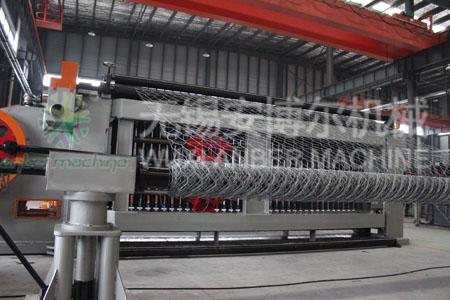

Gabion mesh making machine (back view)

Gabion mesh making machine (back view)

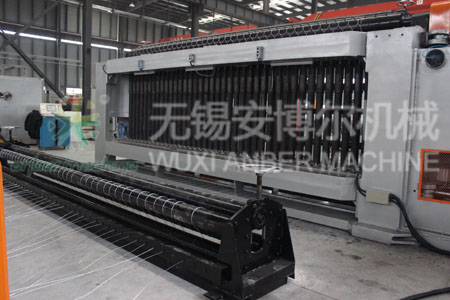

Gabion mesh basket machine (side view)

Gabion mesh basket machine (side view)

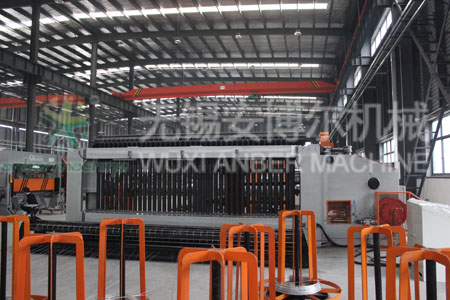

Gabion wire mesh machine (back view)

Gabion wire mesh machine (back view)

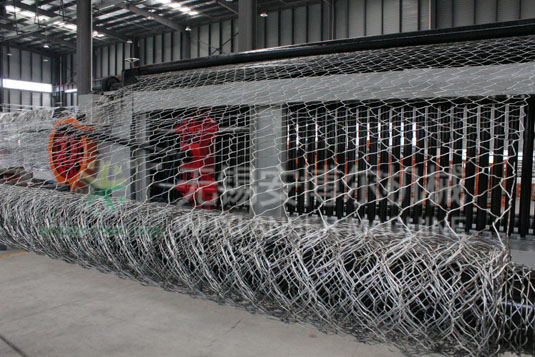

Gabion box mesh machine

Gabion box mesh machine

  • 01. Description of automatic gabion mesh machine
  • Anber gabion mesh machines (hexagonal wire netting machine) have been designed to make gabion mesh (hexagonal mesh) of various widths and mesh sizes. For high corrosion resistance, zinc and PVC, galfan coated wire is available.
    ABE-2 The Gabion Mesh Machine can provide gabion mesh products for various kinds of construction items. The gabion products are commonly used to drain water course to protect and support roads, railroads, airports and residential areas, for coastal protection， build retaining walls, river bank protections, weirs, gabion boxes mattresses, etc.
  • 02. Main parameter
  • Type
    Mesh opening
    (mm)
    Max Width
    (mm)
    Wire Diameter
    (mm)
    Strand
    Speed
    (r/min)
    Power
    (kw)
    Theory speed
    (m/h)
    ABE23-60
    60*80
    2300
    1.6-3
    3
    25
    11
    165
    ABE 23-80
    80*100
    2300
    1.6-3
    3
    25
    11
    195
    ABE 23-100
    100*120
    2300
    1.6-3.2
    3
    25
    11
    225
    ABE -23-120
    120*150
    2300
    1.6-3.5
    3
    20
    11
    225
    ABE 33-60
    60*80
    3300
    1.6-2.8
    3
    25
    15
    165
    ABE 33-80
    80*100
    3300
    1.6-3
    3
    25
    15
    195
    ABE 33-100
    100*120
    3300
    1.6-3.2
    3
    25
    15
    225
    ABE 33-120
    120*150
    3300
    1.6-3.5
    3
    20
    15
    225
    ABE 43-60
    60*80
    4300
    1.6-2.8
    3
    25
    22
    165
    ABE 43-80
    80*100
    4300
    1.6-3
    3
    25
    22
    195
    ABE 43-100
    100*120
    4300
    1.6-3
    3
    25
    22
    225
    ABE 43-120
    120*150
    4300
    1.6-3.2
    3
    20
    22
    225

    Outside size and Weight
    Mesh width (mm)
    Machine (mm)
    Wire dealing
    machine(mm)
    Mesh winding machine(mm)
    Weight
    2300
    5780*1300*2300
    4850*680*800
    4880*800*1140
    635kg
    3300
    6780*1300*2300
    3850*680*800
    4880*800*1140
    770kg
    4300
    7780*1300*2300
    2850*680*800
    4880*800*140
    905kg

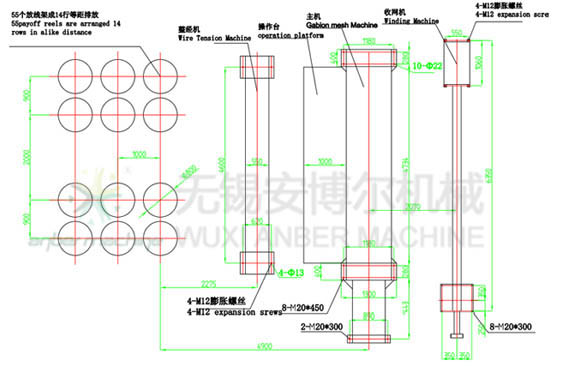

  • 03. Layout of automatic gabion mesh machine
  • 04. The finished products (Gabion mattress)
  • Gabion Mattress 60x80 Gabion Mattress 60x80
