• Border Reinforcement Machine

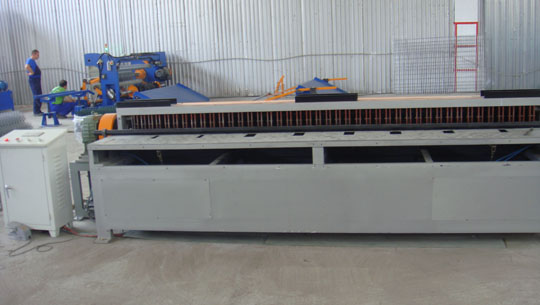

Gabion mesh edge grip machine

Gabion mesh edge grip machine

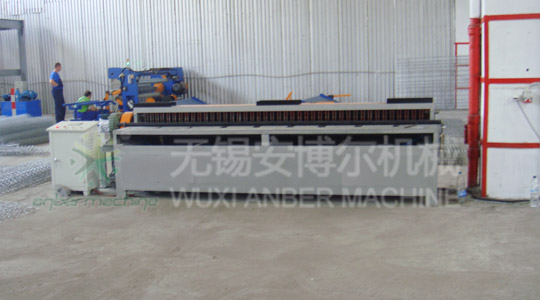

Edge reinforcement

Edge reinforcement

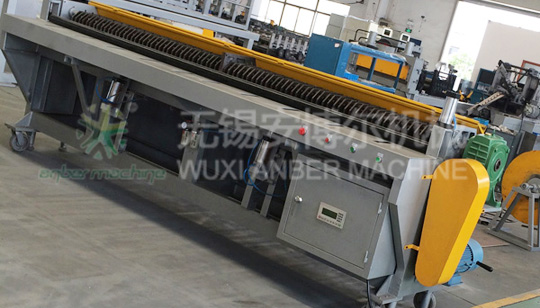

Edge bending for gabion mattress (back view)

Edge bending for gabion mattress (back view)

  • 01. Introduction of border reinforcement machine
  • End winding up machine is a new production which is designed and manufactured by ourselves. It is one of main devices in double twisted hexagonal netting producing line. It is located in the back of netting cut machine in producing line. It can use either in double twisted hexagonal netting producing line or in some places it is used single according user's demand.
    The wires of double twisted hexagonal netting which was straightened and cut must be deal in especial craftwork by the machine, i.e. having the end of double twisted hexagonal netting winded up. The netting and the sides of netting winded by the machine are in order and firm.
    Netting wire diameter: ≤3mm
    Working width: 3000 mm
    Output: 10times/min
    Motor power: 3 KW
    Rotate speed motor control: 1000r/min
    Range controller adjust: clockwise rotate 306°-720°
    Anti-clockwise rotate 180°-360°, height of front side: 860 mm
    Allover size (length x width x height): 3800x800x1240 (mm)
