No	Description of goods	Qty
1	Pulley type Wire Drawing Machine 560mm 5.5MM—3MM; Adjustable Speed	4
2	Pulley type Wire Drawing Machine 450mm 3MM—1.8MM; Adjustable Speed	5
3	Pulley type Wire Drawing Machine 350mm From1.8 to1.00mm, Adjustable Speed	4
4	BUT WELDING MACHINE Wire dia.: 3-6mm	1
5	BUT WELDING MACHINE Wire dia.: 1-3mm	1
6	TIP ROLING MACHINE Wire dia.: 1-3mm	1
7	TIP ROLING MACHINE Wire dia.: 3-6mm	1

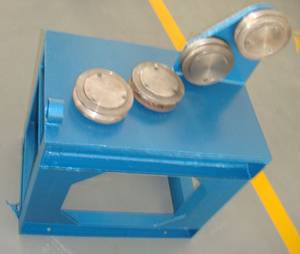

8	Discalling machine	1
9	Hoist machine	3
10	One gas furnace with two tanks Pressure-reducing valve and stop valve	1

Pulley type wire drawing machine is combined of 6 parallel capstans, it is used to drawing metal wire of steel, aluminum, copper. So it is suitable for these batch process areas of refined wire, such as, bolt, circle nail, electrician used lead, steel rope, spring, etc. All the rolled drums are driven by each electromotor individually. In the process, as the wire becoming thinner and longer, the rotary speed is descending one by one. Coils formed by five drawing processes from feed-in to the finished product at one time, so it’s of high efficiency and simple operation. The machine is equipped with intact electric system, each has a water cooling system interface. To suit customer’s requirement, we can add the capstans to nine.
Technical parameter:
Capstan diameter: 560mm 450mm 350mm
Number of the capstan: 4 5 4
Maximum incoming wire diameter: 5.5mm
Minimum outgoing wire diameter: 1mm
Total compressibility: 74.08%~84%
Average partial compressibility: 20.15%~26.32%
Produce rate: About 570~230kg/h
Central distance of installed capstans: 1100mm
Cooling system water used volume: 24m/h
