Vertical wire drawing machine

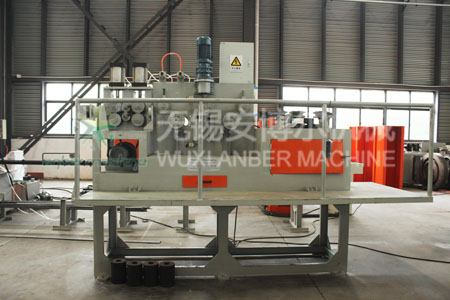

  • 01. Introduction of vertical type wire drawing machine
  • Inverted vertical drawing machine is no sliding mode to draw low carbon steel wire, stainless steel wire, steel wire and non-ferrous metal in the coarse, diameter and development equipment, applicable to the standard parts industry, supermarket shelves manufacturing industry, wire processing enterprises.
    1. Machine features:
    Use strong narrow v-belt combination harden tooth reducer or pendulum ring reducer; heavy recoiler; Capstan is forced air cooling; Pneumatic pressure wheel; Recoil is auto and ID can be adjusted; AC frequency speed adjustment; easy operate, safe and reliable, energy saving more than 30%.
    2. Working principle:
    Motor drive the capstan through the pulley and triple gear transmission, traction wire to draw the wire. The wire after drawing will get through the wire roller and fall onto the wire recoiler, wire recoiler will rotate synchronous with the capstan.
    3. Structure features:
    This equipment is a handstand type wire drawing machine, the wire after drawing can be directly to fall onto the wire recoiler, so as to take-up the wire of 1-2T.
    4. Construction:
    Vertical wire drawing machine contains machine frame, reducer, drum, recoiler, trolley, pneumatic system, AC frequency conversion electric control system and motor.

  • 02. Main specification
    • Items
    Unit
    WL560
    WL600
    WL750
    WL800
    WL900
    WL1000
    WL1200
    Capstan dia.
    Mm
    560
    600
    750
    800
    900
    1000
    1200
    Drawing speed
    r/min
    25
    25
    20
    20
    20
    20
    20
    Max drawing dia.
    Mm
    8-10
    12
    14
    8-14
    10-16
    12-18
    25-30
    Max. speed
    M/min
    60
    35
    Single reduction rate
    20%~30%
    Control method
    Frequency speed adjust
    Recoil motor
    3kw
    Motor power
    kw
    15-18.5
    22
    30
    45
    45
    55
    75
    Gearbox model
    JZQ
    560
    600
    750
    800
    900
    1000
    1200
    Weight
    kg
    1300
    2300
    2700
    3500
    3500
    3500
    7000
