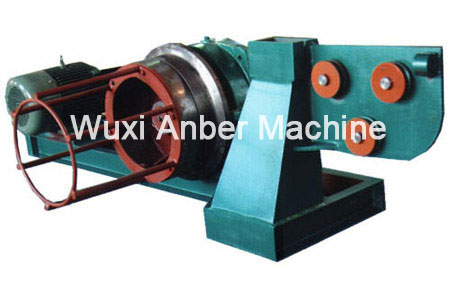

• Horizontal Wire Drawing Machine

factoryshow

Bull block copper wire drawing machine

factoryshow

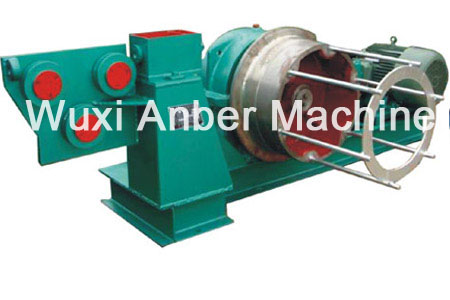

Double head wire drawing machine

factoryshow

Horizontal wire drawing line

factoryshow

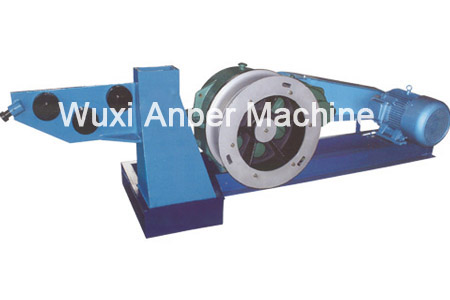

Horizontal wire drawing machine

factoryshow

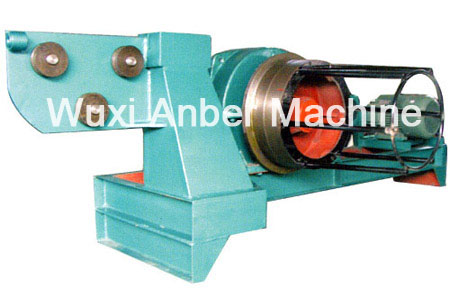

Double capstan type wrie drawing machine

  • 01. Description of horizontal wire drawing machine
  • The drawing machine is used to draw high carbon wire, medium carbon wire and low carbon steel wire, it is easy to operate, the two capstans can draw the wire at the same time.
    Capstan material: cast steel
  • 02. Main parameter
    • Model
    LWD350
    LWD550
    LWD650
    LWD750
    LWD850
    LWD1000
    Capstan dia. (mm)
    350
    550
    650
    750
    850
    1000
    Max. inlet wire dia. (mm)
    6.5
    10
    12
    14
    16
    18
    Speed (m/min)
    25
    25
    30
    20
    20
    20
    Motor power (kw)
    11
    18.5
    22
    30
    45
    55
    Reducer
    ZQ350
    ZQ550
    ZQ650
    ZQ750
    ZQ850
    ZQ1000
    Weight (kg)
    850
    1300
    2300
    2700
    3500
    5000
  • 03. The finished products (wire)
  • Copper Wire Coil
    Copper Wire
    Low Carbon Wire
    Wire in coil
