• Pulley Type Continuous Wire Drawing Machine

factoryshow

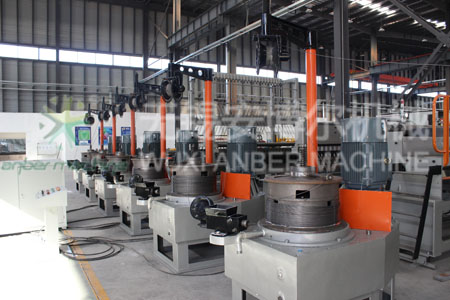

OTO wire drawing production line

factoryshow

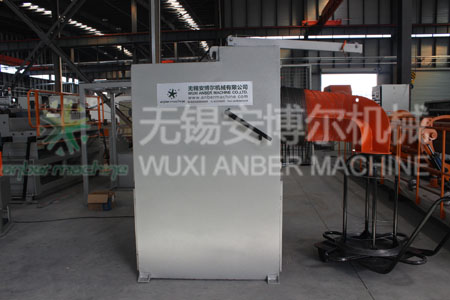

Pulley type wire drawing line

factoryshow

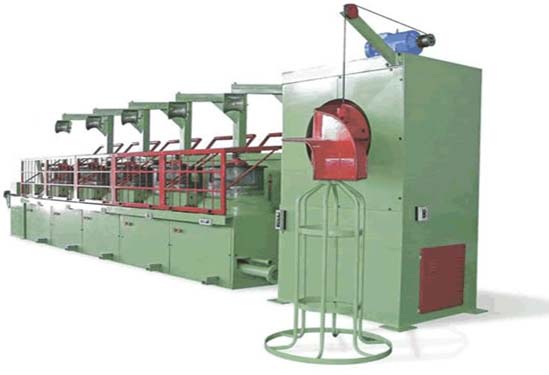

Pulley type wire drawing machine

factoryshow

Pulley type wire drawing plant

factoryshow

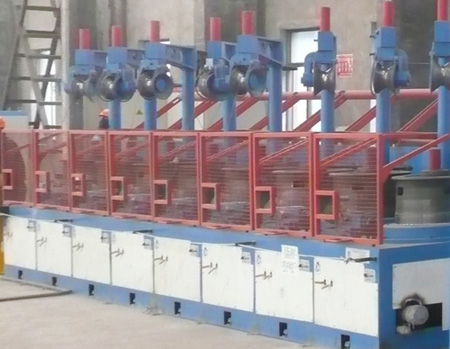

Pulley type wire drawing machine

  • 01. Main specification
  • Type
    LW-600
    LW-560
    LW-550
    LW-450
    LW-350(400)
    Dia. of block
    600
    560
    550
    450
    350(400)
    Material strength
    1150Mpa
    1150Mpa
    900Mpa
    1300Mpa
    1400Mpa
    Inlet wire dia.
    8-6mm
    6.5mm
    6.5mm
    3.6mm
    2.5mm
    Outlet wire dia.
    3-2mm
    1.8mm
    1.8mm
    1.1mm
    0.8mm
    Average Compressibility
    25%
    25%
    25%
    21%
    22%
    Total Compressibility
    85%
    92.33%
    92.33%
    90.7%
    87%
    Max. speed of block
    200m/min
    245m/min
    245m/min
    346.9m/min
    200m/min
    Total power
    37-30kw
    30-18.5kw
    22-15kw
    18.5-7.5kw
    11-5.5kw
    Weight
    4500kg
    2000kg
    2000kg
    1500kg
    1500kg
    Size of single block (mm)
    200012002600
    170011002400
    15208202300
    15208202300
    12006602000

    Transmission System: Strong narrow joint V-belt; strong narrow joint V-belt and spiral bevel gear; strong narrow joint V-belt + standard gear box transmission.
    Mode of speed: adjustment AC frequency conversion control
    Pay-off Method: Pay-off machine or spool pay-off machine
    Take-up Method: I-Spool take-up machine or trunk pay off machine
    Material: Suitable for Drawing Welding rod; welding Wire (gas protection welding wire and submerged arc welding wire); steel wire (medium, low carbon steel wire, stainless steel wire); Wire and cable (copper wire, aluminum wire) and other metal wires
    * Various combined drawing equipment can be designed according to the customers' requirements

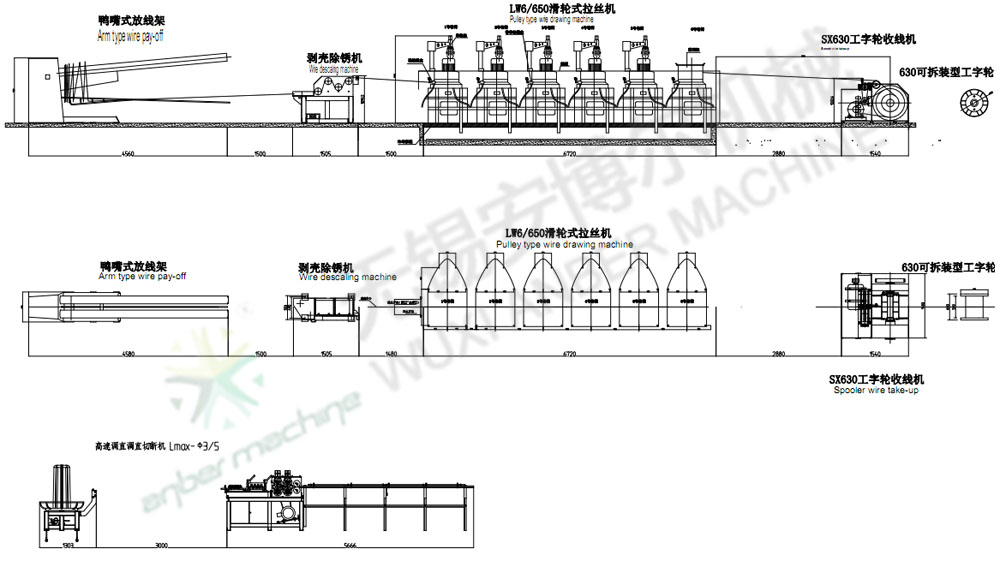

  • 02. Layout of pulley type continuous wire drawing machine
