- Water Type Wire Drawing Machine

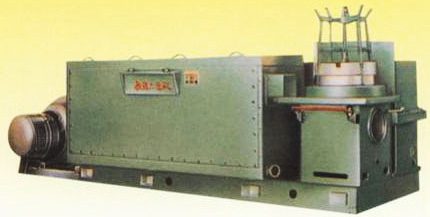

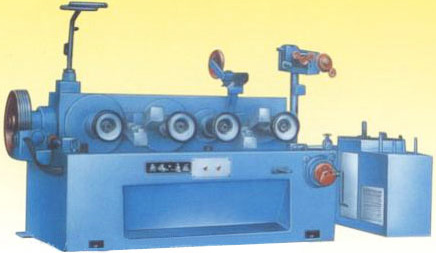

Water tank wire drawing machine

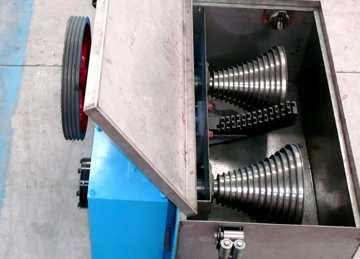

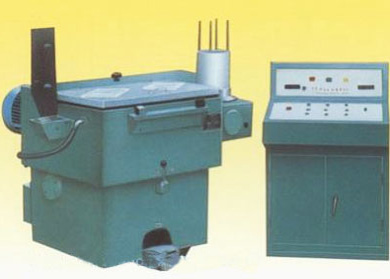

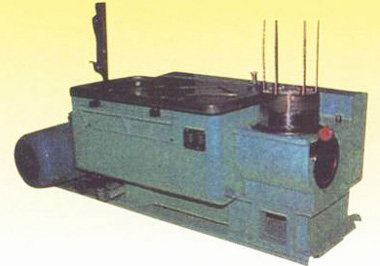

Water type wire drawing machine

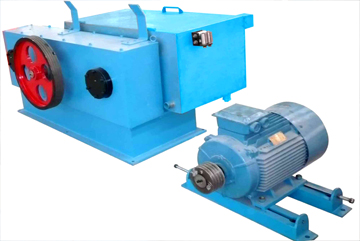

Wet drawing machine

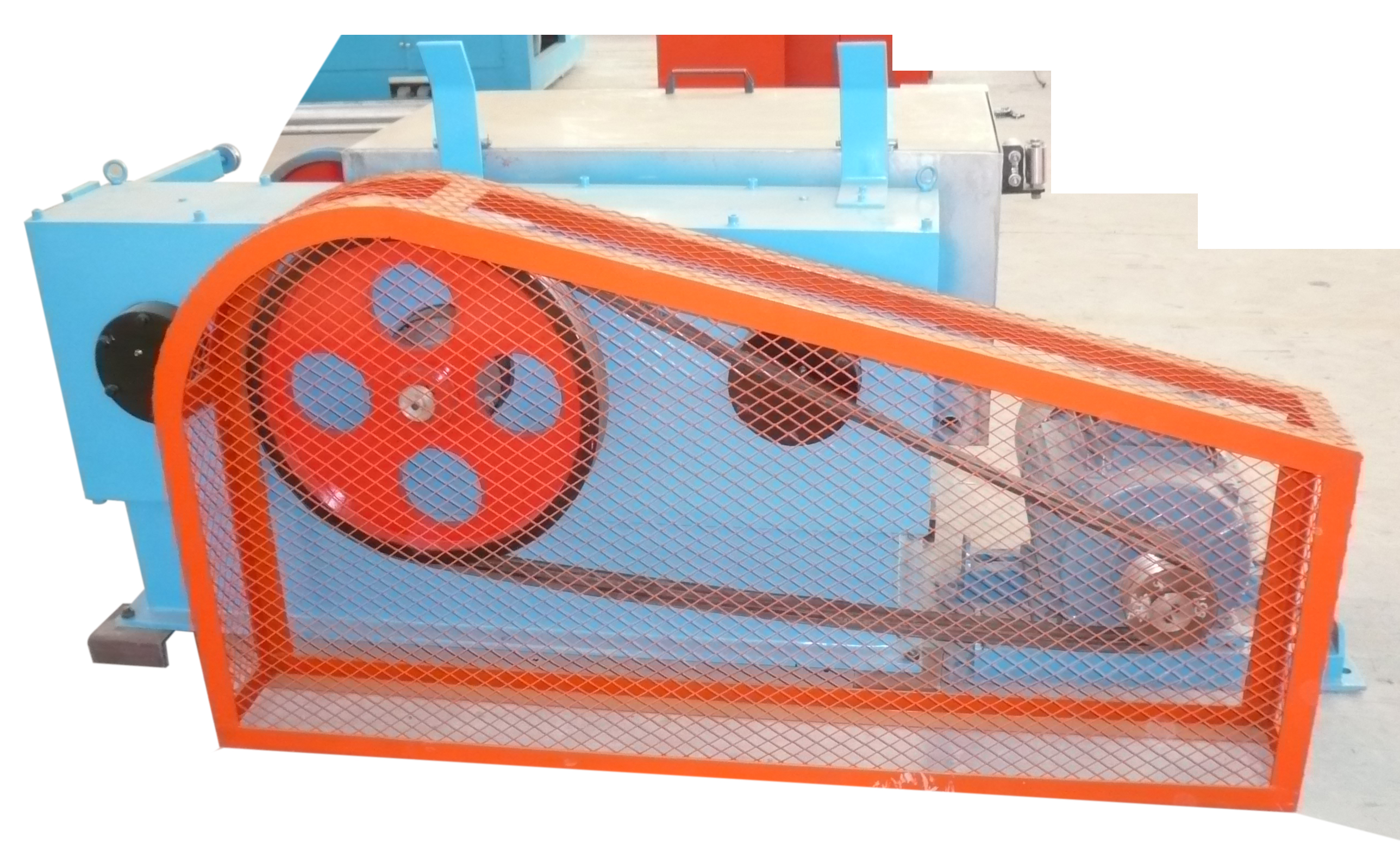

Wet type wire drawing machine

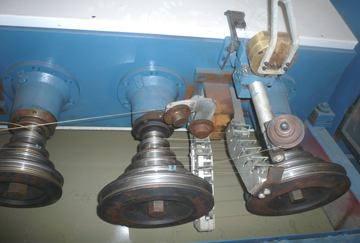

Water tank wire drawing machine
- 01. Introduction of water type wire drawing machine
- Water Tank type wire drawing machine is Suitable for drawing the medium and high carbon wire whose diameter is less than 6.5mm, the drawn wire can be use as wire rope, spring wire, bead wire, electrical power wire, spoke wire and so on.
Machine Features:
Wire Drawing Die can be cold by immersing in the saponification liquid;
Drive with two powerful special combination of narrow V belt drive gear boxes
Control type: normal control, frequency control
Conpare with traditional pulley-type drawing machine, it can save 50% power, low investment, los sapce needed to install, saving operator (one person can operate many machines).
Note: The drawing passage number is designed according to customer's requirements.
- 02. Main specification
Item(Unit) |
LT-12/630 |
LT-11/560 |
LT-9/560 |
LT-15/450 |
LT-11/450 |
LT-17/260 |
Capstan dia.(mm) |
630 |
560 |
560 |
450 |
450 |
260 |
Draw passage(time) |
12 |
11 |
9 |
15 |
11 |
17 |
Max incoming dia.(mm) |
5.5-6.5 |
5.5-6.5 |
3.2-5.6 |
4.0-5.5 |
8.0(copper)3.8-4.0 |
2.8 |
Min outgoing dia.(mm) |
2.0-3.5 |
2.0-2.5 |
1.4-3.0 |
1.5-2.0 |
3.0-1.5 |
0.5-0.9 |
Total compressibility(%) |
90 |
90 |
90 |
90 |
84 |
75 |
Average partial compressibility(%) |
17.8 |
17.8 |
18.25 |
15.6 |
15 |
15.8 |
Wtre drawing line speed(m/s) |
4.33 |
4.33 |
4.17 |
4.17 |
4.37 |
8 |
Motor power(KW) |
155 |
130 |
130 |
80-90 |
80 |
55 |
Dimersion(mm) |
4680*3000 *1840 |
4680*3000 *1840 |
5980*3500 *1840 |
5900*3600 *1780 |
5780*3300 *1640 |
5000*3000 *1640 |
Weight(kg) |
16000 |
14000 |
12000 |
13000 |
11000 |
9000 |
- 03. The finished products (wire)
-
Galvanized steel wire-01Galvanized steel wire-02
Galvanized steel wire-03
