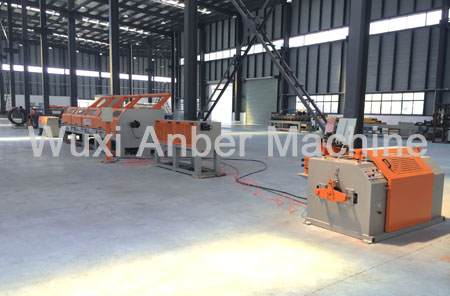

Rolling Cassettes plant

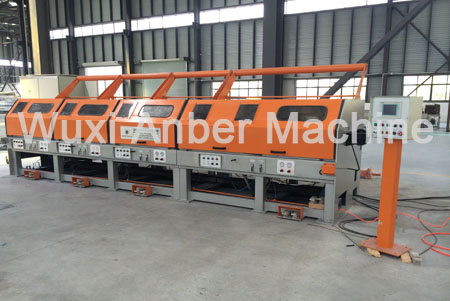

Rolling Cassettes
New type Rolling Cassettes plant

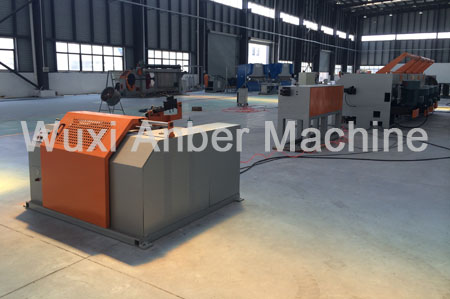

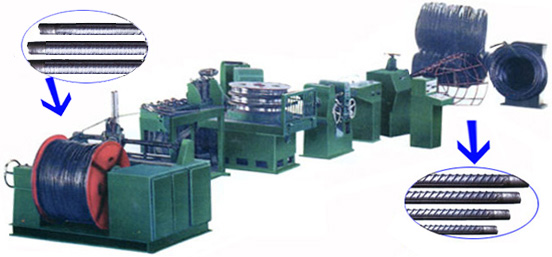

Cold rolling ribbed steel bar plant

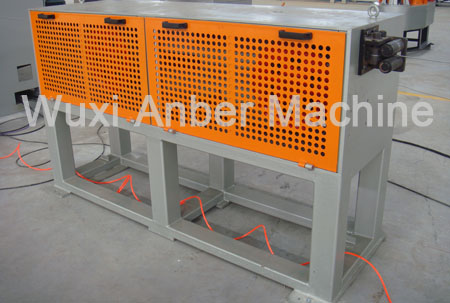

Cold rolling and ribbing machineaaa
- 01. Description of rolling cassettes plant
- The rolling cassette plant equipped with carbide die (cassette) instead of fixed wire drawing die, it is installed upon the straight line wire drawing machine, the cassette matched with angular cutter gear and mump lubricate system, to produce the low carbon, middle carbon and high carbon steel wire, also can produce the copper, aluminum and titanium, it increased the drawing and rolling speed.
- 02. Main parameter
Capstan dia. : 600mm
Incoming wire dia.: 6.5mm, 6.0mm and 5.5mm
Outgoing wire dia.: 3.5-5mm
Total compressibility: 85%
Wire roller speed: 10m/s
Single motor power: 35 KW
Capstan number: according to the inlet wire diameter and outlet wire diameter
Gear description: Angular milling gear
Lubrication of gears and bearings: Oil pump compulsion lubrication
Incoming wire dia.: 6.5mm, 6.0mm and 5.5mm
Outgoing wire dia.: 3.5-5mm
Total compressibility: 85%
Wire roller speed: 10m/s
Single motor power: 35 KW
Capstan number: according to the inlet wire diameter and outlet wire diameter
Gear description: Angular milling gear
Lubrication of gears and bearings: Oil pump compulsion lubrication
- 03. Related accessory machine
- Mechanical wire descaling machine, butt welding machine, wire pointing machine, SG800 spooler wire take-up, hydraulic wire pay-off
