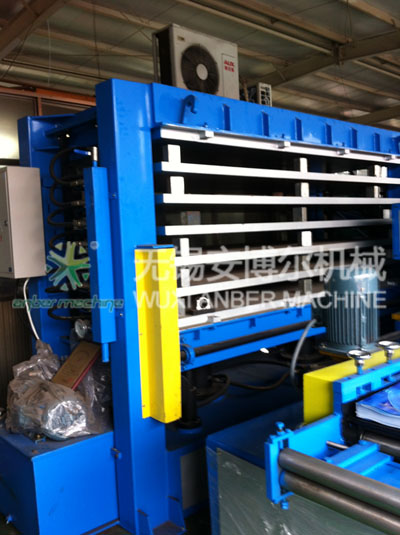

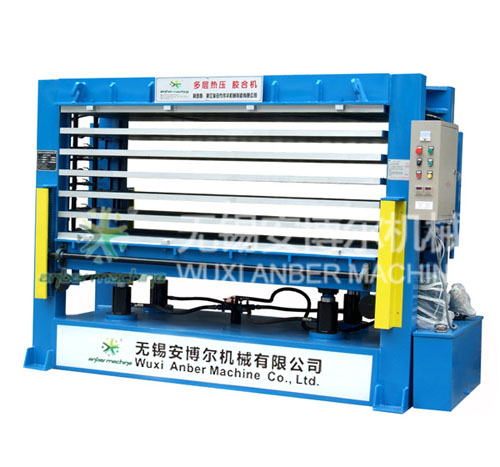

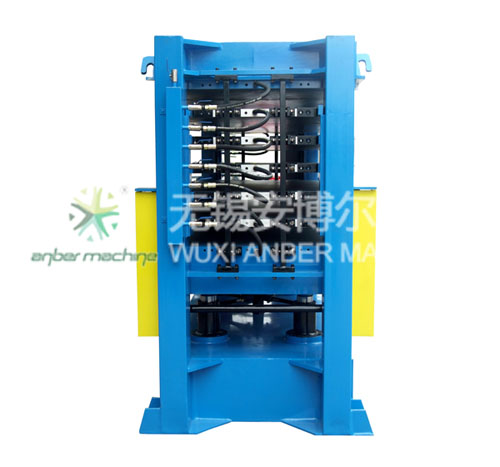

• Multi-layer Hot Glue Machine



  • 01. Description of multi-layer hot glue machine
  • 02. Main technical parameters
  • Size and quantity of Heating plate
    Up and down plate(mm): 1000×2200×38=2 pcs
    Middle plate(mm): 1000×2200=9 pcs
    Space
    110mm(door thickness:70-90mm)
    Effective stroke of oil cylinder
    730mm
    Specification and quantity of cylinder
    Φ160mm×2 pcs
    Design pressure
    30kg/cm2
    Machine weight
    10T/12T
    Overall size of machine
    3100mm*1350mm* 2900mm
    Temperature
    80℃
    Time
    15-30 minutes
