• 01. Use features

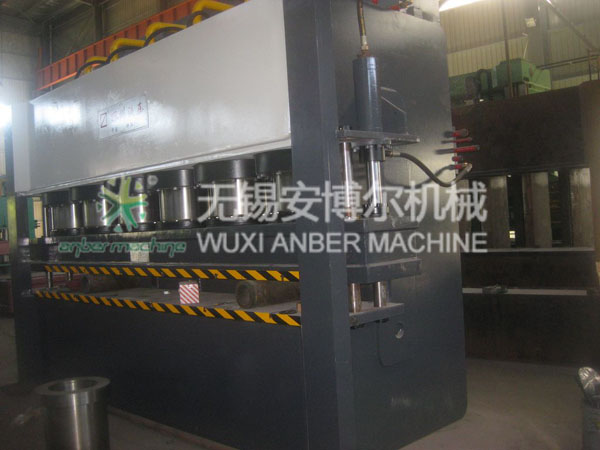

• The machine is professional used for the door frame embossing, easy to operate, saving time and labor.

• 02. Main specifications
• 1.) Normal force: 16000KN
  2.) Reture force: 385KN
  3.) Stroke of slide: 250mm
  4.) Max. pressure of main cylinder: 25Mpa
  5.) Max. opening degree: 400mm
  6.) Stroke speed of slide
  a. Descent: 100-110mm/s
  b. Working pressing: 4-9mm/s
  c. Return: 110mm/s
  7.) Dimension of working table: 4000X400 mm
  8.) Main motor power: 30KW
