Wire PVC Coating Line

Main parameter of PVC Coating line:

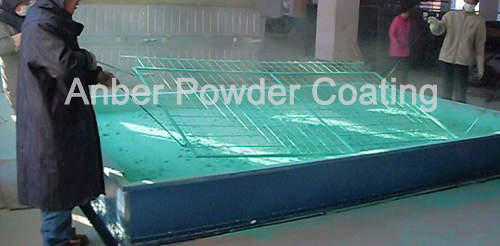

  • Semi automatic mesh sheet powder coating line

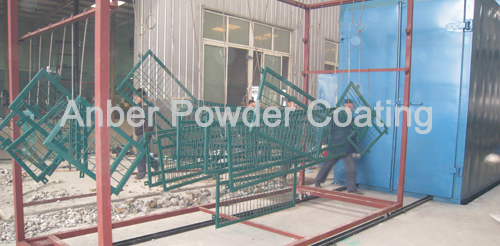

  • Manual mesh sheet powder coating line

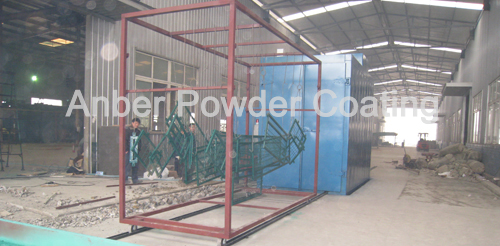

  • Semi automatic powder coating line for mesh sheet

  • Semi automatic mesh sheet powder coating line

  • Manual mesh sheet powder coating line

  • Semi automatic powder coating line for mesh sheet

Technical parameters of manual powder coating line:
Application: Apply powder coatings on welded wire mesh sheets
Max. size of roll mesh: Length 4000mm × Width 2500mm
Heating source: Fuel
Average power consumption: about 15KW/h
Fuel consumption: 18-25kg/h
Factory Building: ≥ Length 30000mm × Width 10000mm × Height 5000mm
Process flow of semi-automatic powder coating line:
Manual loading → Preheating furnace → Fluidized bed for powder application → Powder curing furnace to melt the plastic powder into a smooth layer → Natural cooling for the coated mesh → Manual unloading → Manual shape correction → Quality control → Final package
Equipment List:
Preheating furnace, curing furnace, powder coating equipment, conveying cart & track, control cabinet
